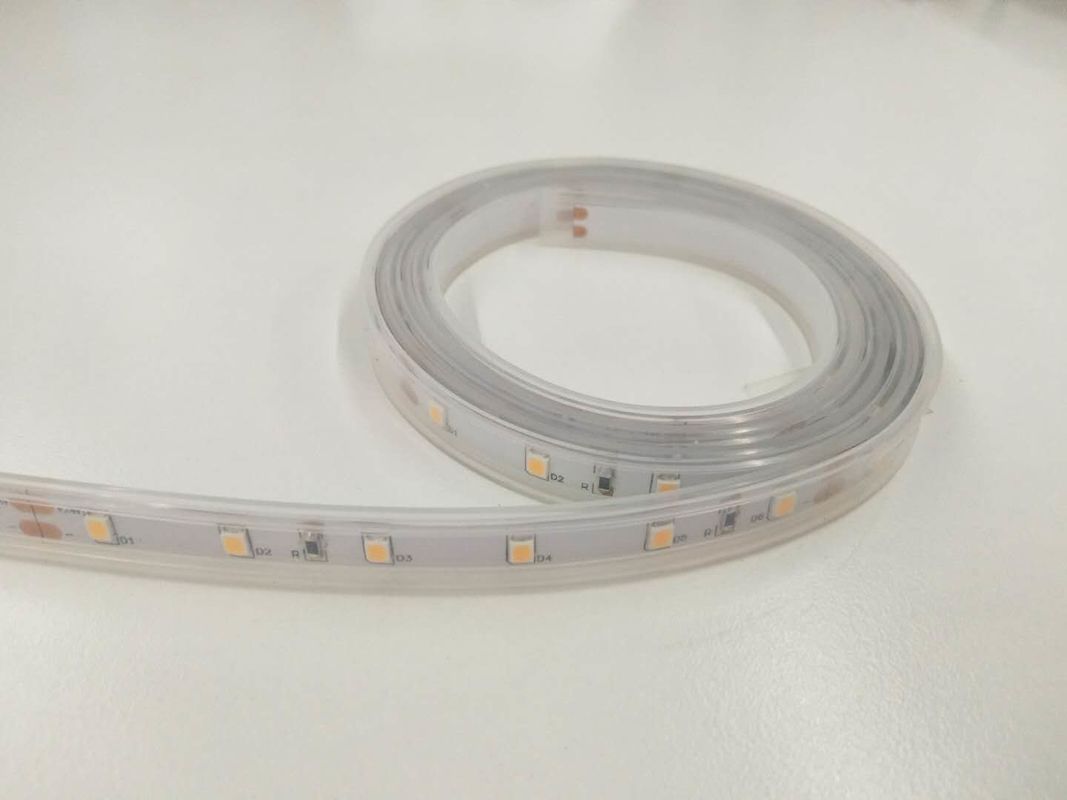

CRI90 Outdoor LED Strip Lights , 130lm Exterior LED Tape Light Large View Angle
-
Highlight
external led strip lights
-
LED SMD2835 LEDs
-
Color2000 To 6000K
-
Luminous Efficiency115-155lm/w
-
Voltage24VDC
-
Wattage16W Per Meter
-
CRI90
-
Working Temperature(℃)-20~65℃
-
Working Lifetime(hour)30000h
-
Place of OriginShenzhen China
-
Brand NameTL
-
CertificationETL CE RoHS UL
-
Model NumberTL-FW28HE-IN70-CV90-8-24V-30K
-
Document
-
Minimum Order Quantity1000M
-
PriceNegotiable
-
Packaging DetailsCartons
-
Delivery Time2-3 weeks
-
Payment TermsT/T
-
Supply Ability30000M per month
CRI90 Outdoor LED Strip Lights , 130lm Exterior LED Tape Light Large View Angle
70pcs CRI90 Outdoor LED Strip Lights 140lm Large Vier Angle Exterior LED Tape Light
SMD2835
1,High luminous Efficiency 115~155lm/w
2,70LEDs per meter, 7LEDs per cutting
3,24DCV Warranty 3 years
4,Beam angle 120° 2 layer PCB/1+1OZ copper 8mm width
5,CRI≥90, lifetime 30000h
6,CCT/X.Y: 2200k 2700k 3000k 4000k
1, Features
High quality flexible PCB strip with ETL UL RoHS and CE certified
Use 2835 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
7pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 2835 | LED quantity/m | PCS | 70 | |
| LED brand | / | Epistar or equivalent Sanan | LED power dissipation/m | W | 15.1 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 16.5 | |
| PCB type | type | 2 layer PCB/1+1oz copper 8mm | Luminous flux±10% | lm/m | 2210 | |
| Length | M | 5 | Efficacy | lm/w | 130 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | 3M 9495 200MP | Operating current/m | A | 0.7 | |
| Color | / | WW/NW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥90 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | 2000k | 27S(2645-2805K) X=0.459 Y=0.412 | 115lm/w | Heatsink | [c㎡/m] | 504 |
| 3000k | 29S(2854-3026K) X=0.44 Y=0.403 | 125lm/w | Warranty period | year | 3 | |
| 4000k | 41S(3897-4223K) X=0.38 Y=0.38 | 135lm/w | Life time | H | 30000 | |
| 6000k | 50S(4900-5300K) X=0.346 Y=0.359 | 155lm/w | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
5, Package
