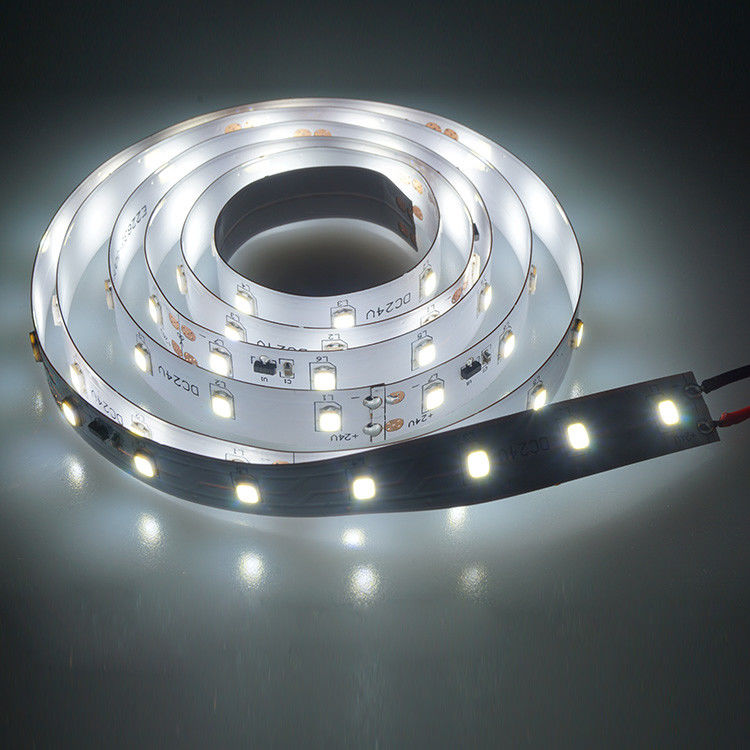

50000h Life Time Outdoor LED Strip Lights High Brightness Energy Saving
-
Highlight
exterior led tape light
-
LED SMD2835 LED
-
Color4000-6000K
-
Luminous Efficiency130-135lm/w
-
Voltage24VDC
-
Wattage16W/M
-
CRI90
-
TypeFlex LED Strips
-
Lamp Body MaterialCopper
-
Place of OriginShenzhen China
-
Brand NameTL
-
CertificationCE RoHS ETL UL
-
Model NumberTL-FW28HE-IN70-CV90-8-24V-30K
-
Document
-
Minimum Order Quantity1000M
-
PriceNegotiable
-
Packaging DetailsCartons
-
Delivery Time2-3 weeks
-
Payment TermsT/T
-
Supply Ability30000M per month
50000h Life Time Outdoor LED Strip Lights High Brightness Energy Saving
50000h Life Time Outdoor LED Strip Lights High Brightness Energy Saving
SMD2835
High luminous Efficiency 130~135lm/w
70LEDs per meter, 7LEDs per cutting
24DCV
Warranty 3 years
Beam angle 120°
2 layer PCB/1+1OZ copper 8mm width
CRI≥90, lifetime 50000h
CCT/X.Y: 2700 3000k 4000k 5000k 6000k
1, Features
High quality flexible PCB strip with ETL UL RoHS and CE certified
Use 2835 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
7pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 2835 | LED quantity/m | PCS | 70 | |
| LED brand | / | Epistar or equivalent Sanan | LED power dissipation/m | W | 15.12 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 16.8 | |
| PCB type | type | 2 layer PCB/1+1oz copper 8mm | Luminous flux±10% | lm/m | 2200 | |
| Length | M | 5 | Efficacy | lm/w | 135 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | 3M 9495 200MP | Operating current/m | A | 0.7 | |
| Color | / | WW/NW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥90 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | 2700k | 27S(2645-2805K) X=0.459 Y=0.412 | 125lm/w | Heatsink | [c㎡/m] | 504 |
| 3000k | 29S(2854-3026K) X=0.44 Y=0.403 | 125lm/w | Warranty period | year | 3 | |
| 4000k | 41S(3897-4223K) X=0.38 Y=0.38 | 130lm/w | Life time | H | 50000 | |
| 5000k | 50S(4900-5300K) X=0.346 Y=0.359 | 135lm/w | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
5, Package
