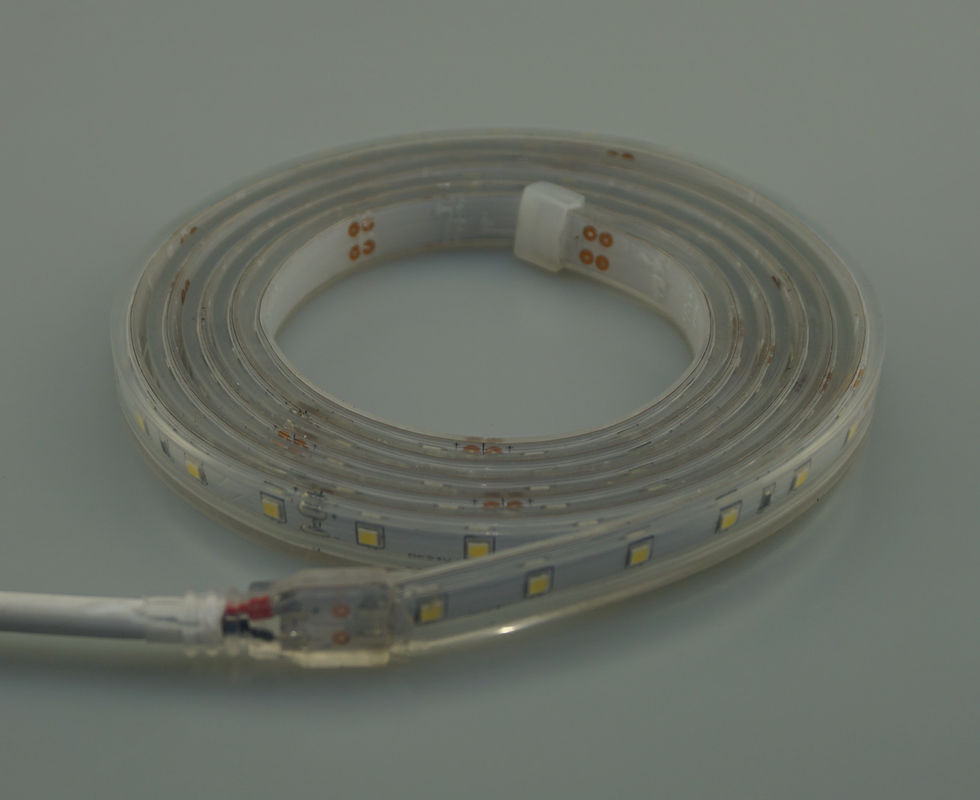

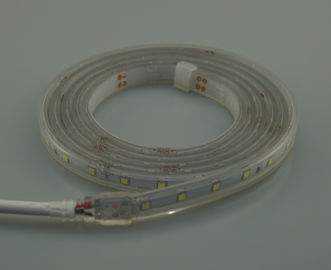

High Luminous Efficiency Outdoor LED Strip Lights 8 LEDs Per Cutting 16.3W/M
-
Highlight
external led strip lights
-
LEDSMD 2835
-
Color2700-5000K
-
Luminous Efficiency115-140lm/w
-
Voltage24VDC
-
Wattage16.3W/M
-
CRI90
-
Working Lifetime(hour)50000 Hours
-
Cutting Length83.33mm
-
Place of OriginShenzhen,China
-
Brand NameTL
-
CertificationCE ROSH ETL
-
Model NumberTL-FW28HE-USS96-10-CC90-24V-CCT
-
Document
-
Minimum Order Quantity500M
-
PriceNegotiable
-
Packaging DetailsCarton
-
Delivery Time7-15 workdays
-
Payment TermsT/T
-
Supply Ability50000M per month
High Luminous Efficiency Outdoor LED Strip Lights 8 LEDs Per Cutting 16.3W/M
High Luminous Efficiency Outdoor LED Strip Lights 8LEDs Per Cutting 96LEDs per meter
SMD2835
High luminous Efficiency 115~140lm/w
96LEDs per meter, 8LEDs per cutting
24DCV
Warranty 3 years
Beam angle 120°
2 layer PCB/1+2OZ copper 10mm width
CRI≥90, lifetime 30000h
CCT/X.Y: 2300k 2700k 3000k 4000k 5000k
1, Features
High quality flexible PCB strip with ETL and CE certified
Use 2835 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
8pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 2835 | LED quantity/m | PCS | 96 | |
| LED brand | / | Epistar or equivalent | LED power dissipation/m | W | 15.9 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 17.3 | |
| PCB type | type | 2 layer PCB/1+2oz copper 10mm | Luminous flux±10% | lm/m | 2200 | |
| Length | M | 5 | Efficacy | lm/w | 130 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | 3M 9495 200MP | Operating current/m | A | 0.72 | |
| Color | / | WW/NW/CW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥90 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | 2700k | 27S(2645-2805K) X=0.459 Y=0.412 | 110lm/w | Heatsink | [c㎡/m] | 519 |
| 3000k | 29S(2854-3026K) X=0.44 Y=0.403 | 110lm/w | Warranty period | year | 3 | |
| 4000k | 41S(3897-4223K) X=0.38 Y=0.38 | 120lm/w | Life time | H | 30000 | |
| 5000k | 50S(4900-5300K) X=0.346 Y=0.359 | 120lm/w | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
