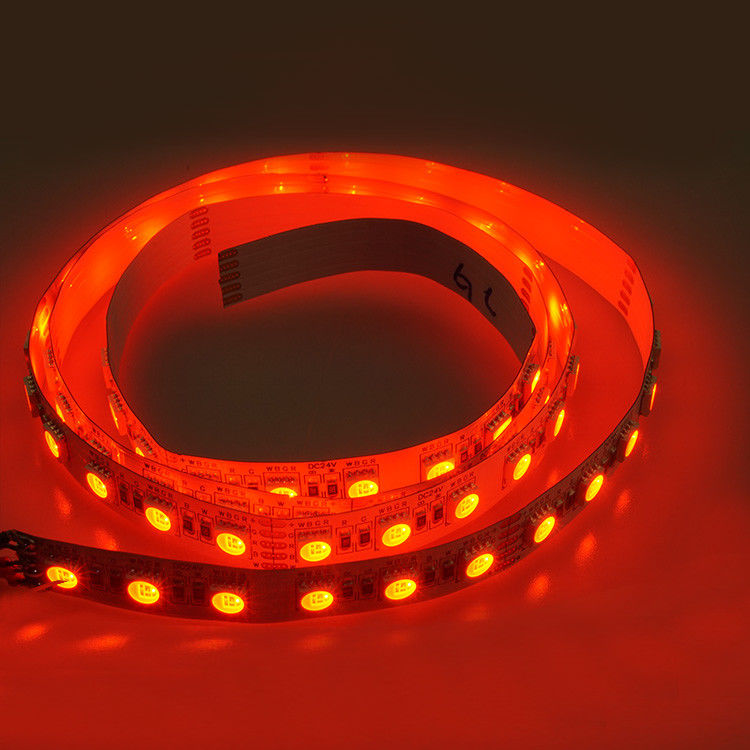

Beam Angle 120° Dimmable Led Strip 84 LEDs Per Meter IP20 RGBW 3 Years Warranty
-
Highlight
exterior led tape light
-
LED SMD5050
-
ColorRed
-
Luminous Efficiency20lm/w
-
Voltage24VDC
-
Wattage10W Per Meter
-
CRI80
-
Working Temperature(℃)-20~60℃
-
Pcb Color12MM White Color
-
Place of OriginShenzhen China
-
Brand NameTL
-
CertificationETL CE RoHS UL
-
Model NumberTL-FW50-IN84RGBW-CV80-12-24V_Red
-
Document
-
Minimum Order Quantity1000M
-
PriceNegotiable
-
Packaging DetailsCarton box
-
Delivery Time2-3 weeks
-
Payment TermsT/T
-
Supply Ability30000M per month
Beam Angle 120° Dimmable Led Strip 84 LEDs Per Meter IP20 RGBW 3 Years Warranty
84LEDs Per Meter IP20 RGBW Indoor Special LED Strips 500 to 600lm Per Red color
SMD5050 RGBW
1, High luminous Efficiency 20lm/w
2, 84LEDs per meter, 6LEDs per cutting
3, 24DCV
4, Warranty 3 years
5, Beam angle 120°
6, 2 layer PCB/1+2OZ copper 12mm width
7, CRI≥80, life time 50000h
8, R: 620-630nm, G: 515-525nm, B: 460-470nm
1, Features
High quality flexible PCB strip with ETL UL RoHS and CE certified
Use 2835 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
6pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 5050 | LED quantity/m | PCS | 84 | |
| LED brand | / | Epistar or equivalent Sanan | LED power dissipation/m | W | 8.1 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 10.53 | |
| PCB type | type | 2 layer PCB/1+oz copper 12mm | Luminous flux±10% | lm/m | 435-525 | |
| Length | M | 5 | Efficacy | lm/w | 20 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | 3M 9495 200MP | Operating current/m | A | 0.7 | |
| Color | / | WW/NW/CW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥80 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | Red |
620-630nm |
- | Heatsink | c㎡/m | 807 |
| Green | 515-525nm | - | Warranty period | year | 3 | |
| Blue | 460-470nm | - | Life time | H |
50000 |
|
| - |
- |
- | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
5, Package
