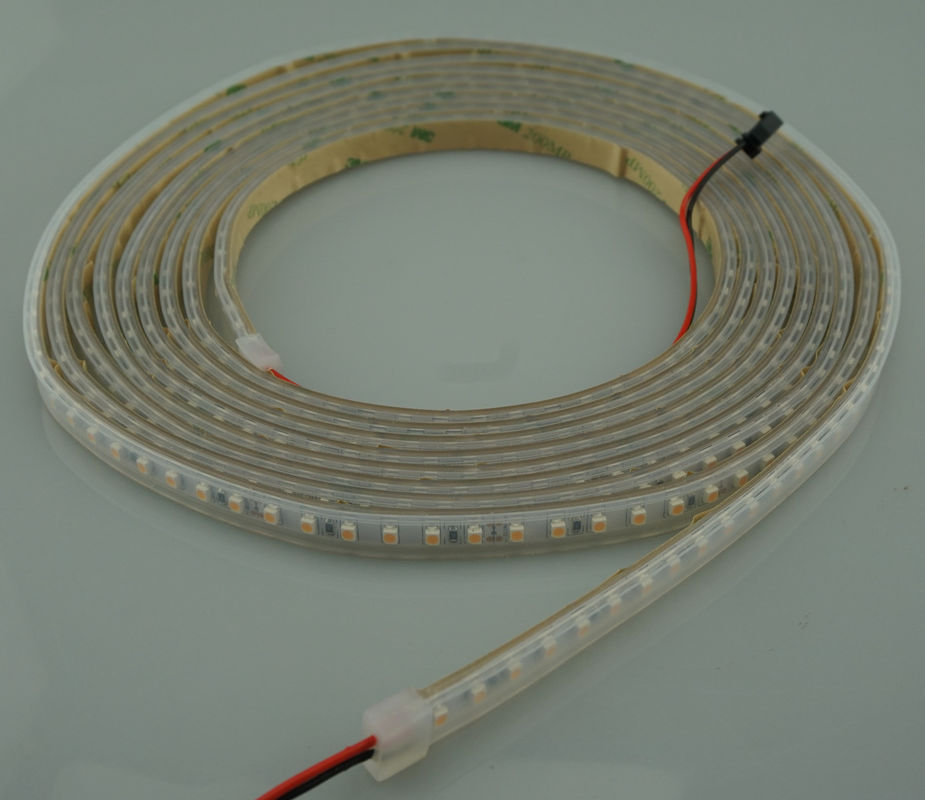

24VDC CRI90 Exterior Led Tape Light 130lm Per Watt SMD2835 8 LEDs Cutting 4000-6500K
-
Highlight
external led strip lights
,led commercial strip lighting
-
LED SMD2835 Chips
-
Color4000-6500K
-
Luminous Efficiency130~135lm/w
-
Voltage24VDC
-
Wattage25W/M
-
CRI90
-
TypeFlex LED Strips
-
Working Lifetime(hour)50000h
-
Place of OriginShenzhen China
-
Brand NameTL
-
CertificationCE RoHS ETL
-
Model NumberTL-FW28HE-USS120-CV90-10-24V-CCT
-
Document
-
Minimum Order Quantity1000M
-
PriceNegotiable
-
Packaging DetailsCartons
-
Delivery Time2 to 3 weeks
-
Payment TermsT/T
-
Supply Ability30000M per month
24VDC CRI90 Exterior Led Tape Light 130lm Per Watt SMD2835 8 LEDs Cutting 4000-6500K
128pcs SMD2835 8LEDs Cutting Outdoor LED Strip Lights 24VDC CRI90 130lm per watt
SMD2835
1, High luminous Efficiency 130~135lm/w
2, 128LEDs per meter, 8LEDs per cutting
3, 24DCV
4, Warranty 3 years
5, Beam angle 120°
6, 2 layer PCB/1+2OZ copper 10mm width
7, CRI≥90, lifetime 30000h
8, CCT/X.Y: 2200k 2700k 3000k 4000k 5000k 5500k 6500k
1, Features
High quality flexible PCB strip with ETL, RoHS and CE certified
Use 2835 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
8pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 2835 | LED quantity/m | PCS | 128 | |
| LED brand | / | Epistar or equivalent Sanan | LED power dissipation/m | W | 22.5 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 25 | |
| PCB type | type | 2 layer PCB/1+2oz copper 10mm | Luminous flux±10% | lm/m | 3200 | |
| Length | M | 3 | Efficacy | lm/w | 130 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | TIA806FG | Operating current/m | A | 1.05 | |
| Color | / | WW/NW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥90 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | 2700k | 27S(2645-2805K) X=0.459 Y=0.412 | 125lm/w | Heatsink | [c㎡/m] | 750 |
| 3000k | 29S(2854-3026K) X=0.44 Y=0.403 | 125lm/w | Warranty period | year | 3 | |
| 4000k | 41S(3897-4223K) X=0.38 Y=0.38 | 135lm/w | Life time | H | 30000 | |
| 5000k | 50S(4900-5300K) X=0.346 Y=0.359 | 135lm/w | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
5, Package
