Highlight
external led strip lights
-
LEDSMD 2835
-
Color2200-6000K
-
Luminous Efficiency115-135lm/w
-
Voltage24VDC
-
Wattage17.5W/M
-
CRI85
-
Working Lifetime(hour)50000 Hours
-
Cutting Length83.33mm
-
Place of OriginShenzhen
-
Brand NameTL
-
CertificationCE ROSH ETL UL
-
Model NumberTL-FW28HE-USS96-10-CC80-24V-CCT
-
Document
-
Minimum Order Quantity1000M
-
PriceNegotiable
-
Packaging DetailsCarton
-
Delivery Time2 weeks
-
Payment TermsT/T
-
Supply Ability50000M per month

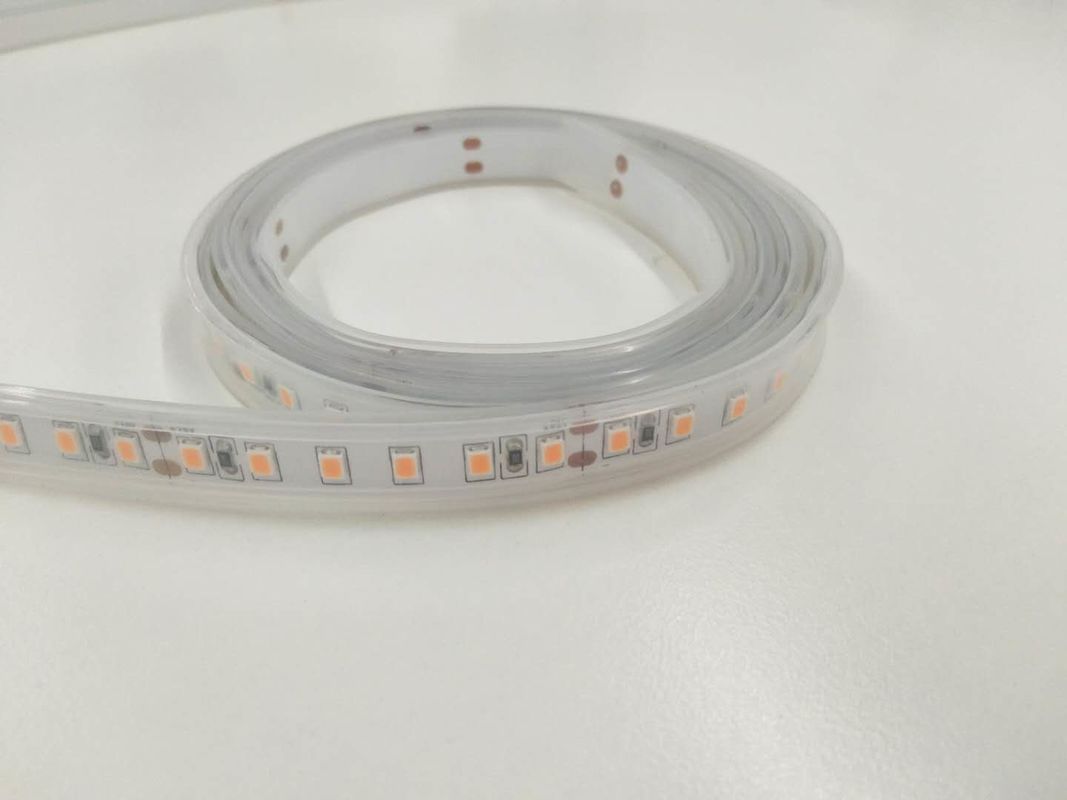

External Led Strip Lights 2835 LEDs
2835 LED Strip Indoor LED Strip Lights 8LEDs Cutting 24VDC CRI80 130lm per watt
SMD2835
1, High luminous Efficiency 115~135lm/w
2, 96LEDs per meter, 8LEDs per cutting, 24DCV
3, Warranty 3 years
4, Beam angle 120°
5, 2 layer PCB/1+2OZ copper 10mm width
6, CRI≥80, lifetime 30000h
7, CCT/X.Y: 2200k 2700k 3000k 4000k 5000k 6000k
1, Features
High quality flexible PCB strip with ETL, CE and UL certified
Use 2835 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
8pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 2835 | LED quantity/m | PCS | 96 | |
| LED brand | / | Epistar or equivalent | LED power dissipation/m | W | 15.9 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 17.5 | |
| PCB type | type | 2 layer PCB/1+2oz copper 10mm | Luminous flux±10% | lm/m | 2200 | |
| Length | M | 5 | Efficacy | lm/w | 135 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | 3M 9495 200MP | Operating current/m | A | 0.72 | |
| Color | / | WW/NW/CW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥80 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | 2700k | 27S(2645-2805K) X=0.459 Y=0.412 | 115lm/w | Heatsink | [c㎡/m] | 519 |
| 3000k | 29S(2854-3026K) X=0.44 Y=0.403 | 115lm/w | Warranty period | year | 3 | |
| 4000k | 41S(3897-4223K) X=0.38 Y=0.38 | 125lm/w | Life time | H | 30000 | |
| 5000k | 50S(4900-5300K) X=0.346 Y=0.359 | 130lm/w | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
5, Package
Our products are sold all over the world, you can rest assured.
