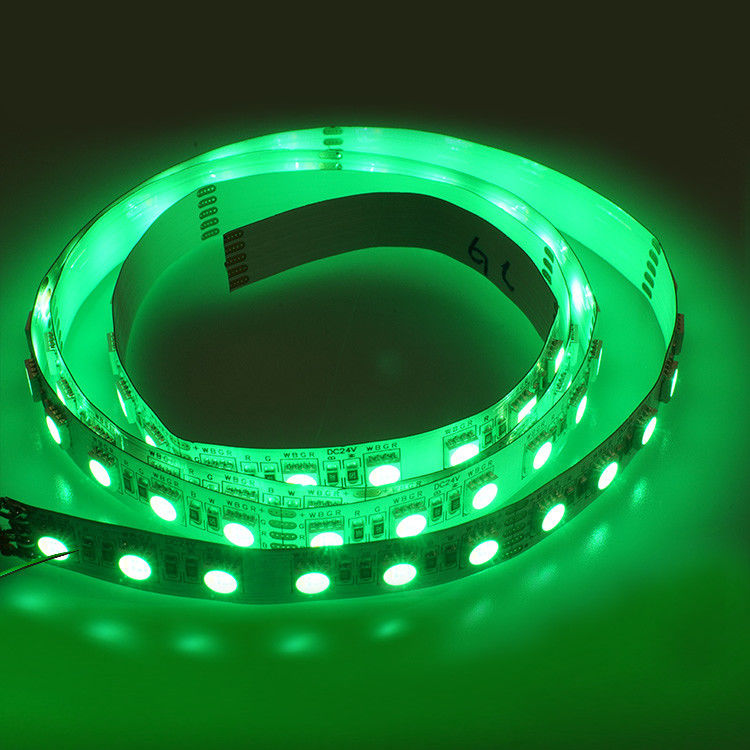

5050 RGBW 84 LEDs Waterproof Led Strip Lightss SMD 5050 500-600lm/m Green Color
-
Highlight
exterior led tape light
-
LED SMD5050 RGBW
-
ColorGreen
-
Luminous Efficiency20lm/w
-
Voltage24VDC
-
Wattage11W/M
-
CRI80
-
Working Temperature(℃)-20~60℃
-
Pcb Color12MM White Color
-
Place of OriginShenzhen China
-
Brand NameTL
-
CertificationETL CE RoHS
-
Model NumberTL-FW50-IN84RGBW-CV80-12-24V_Green
-
Document
-
Minimum Order Quantity1000M
-
PriceNegotiable
-
Packaging DetailsCarton box
-
Delivery Time2-3 weeks
-
Payment TermsT/T
-
Supply Ability30000M per month
5050 RGBW 84 LEDs Waterproof Led Strip Lightss SMD 5050 500-600lm/m Green Color
5050RGBW 84LEDs Indoor Special LED Strips 500 To 600lm Per Green Color
SMD5050 RGBW
High luminous Efficiency 20lm/w
84LEDs per meter, 6LEDs per cutting
24DCV
Warranty 3 years
Beam angle 120°
2 layer PCB/1+2OZ copper 12mm width
CRI≥80, life time 50000h
Green: 515-525nm
1, Features
High quality flexible PCB strip with ETL UL RoHS and CE certified
Use 2835 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
6pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 5050 | LED quantity/m | PCS | 84 | |
| LED brand | / | Epistar or equivalent Sanan | LED power dissipation/m | W | 9.3 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 11.53 | |
| PCB type | type | 2 layer PCB/1+oz copper 12mm | Luminous flux±10% | lm/m | 435-525 | |
| Length | M | 5 | Efficacy | lm/w | 20 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | 3M 9495 200MP | Operating current/m | A | 0.7 | |
| Color | / | WW/NW/CW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥80 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | Red |
620-630nm |
- | Heatsink | c㎡/m | 807 |
| Green | 515-525nm | - | Warranty period | year | 3 | |
| Blue | 460-470nm | - | Life time | H |
50000 |
|
| - |
- |
- | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
