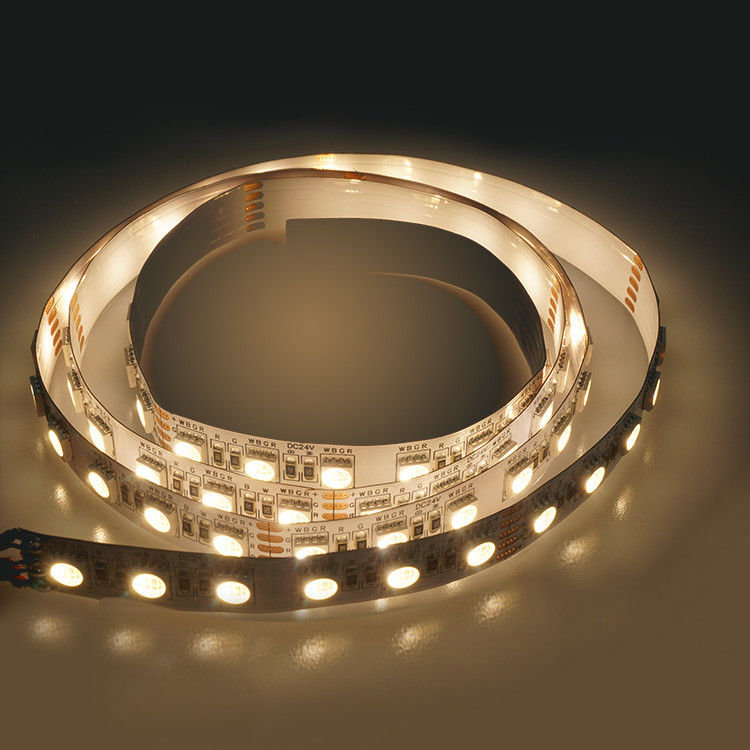

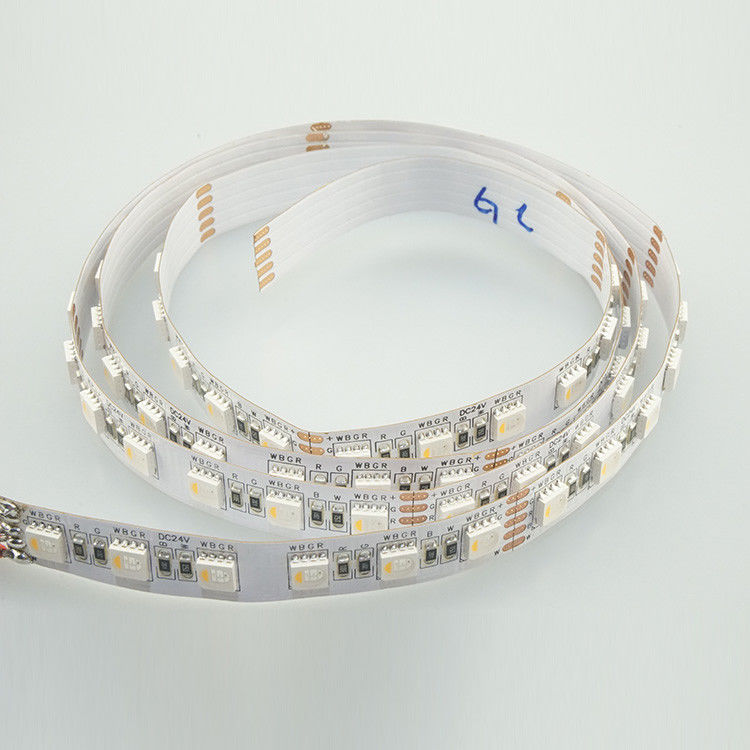

High Brightness Indoor LED Strip Lights , Led Light Bar Strip 500lm Per Watt 2700K
-
Highlight
exterior led tape light
-
LED SMD5050
-
Color2700k
-
Luminous Efficiency20lm/w
-
Voltage24VDC
-
Wattage23W Per Meter
-
CRI80
-
Working Temperature(℃)-20~60℃
-
Pcb Color12MM White Color
-
Place of OriginShenzhen China
-
Brand NameTL
-
CertificationETL CE RoHS UL
-
Model NumberTL-FW50-IN84RGBW-CV80-12-24V_2700K
-
Document
-
Minimum Order Quantity1000M
-
PriceNegotiable
-
Packaging DetailsCarton box
-
Delivery Time2-3 weeks
-
Payment TermsT/T
-
Supply Ability30000M per month
High Brightness Indoor LED Strip Lights , Led Light Bar Strip 500lm Per Watt 2700K
84LEDs Per Meter IP20 RGBW Indoor Special LED Strips 140lm Per Watt 2700K
SMD5050 RGBW
1, High luminous Efficiency 20lm/w
2, 84LEDs per meter, 6LEDs per cutting
3, 24DCV
4, Warranty 3 years
5, Beam angle 120°
6, 2 layer PCB/1+2OZ copper 12mm width
7, CRI≥80, lifetime 30000h
8, CCT/X.Y: 2700k 3200k 4200k 5200k
9, R: 620-630nm, G: 515-525nm, B: 460-470nm
1, Features
High quality flexible PCB strip with ETL UL RoHS and CE certified
Use 2835 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
7pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 5050 | LED quantity/m | PCS | 84 | |
| LED brand | / | Epistar or equivalent Sanan | LED power dissipation/m | W | 22.1 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 23.53 | |
| PCB type | type | 2 layer PCB/1+oz copper 12mm | Luminous flux±10% | lm/m | 435-525 | |
| Length | M | 5 | Efficacy | lm/w | 20 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | 3M 9495 200MP | Operating current/m | A | 0.7 | |
| Color | / | WW/NW/CW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥80 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | 2700k |
2500-2700K X=0.459 Y=0.412 |
- | Heatsink | [c㎡/m] | 807 |
| 3000k | 2800-3200K X=0.44 Y=0.403 | - | Warranty period | year | 3 | |
| 4000k | 3800-4200K X=0.38 Y=0.38 | - | Life time | H |
30000 |
|
| 5500k |
5000-5500K X=0.346 Y=0.359 |
- | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
5, Package
