Low VF Flexible Led Light Strip Waterproof 62.5mm Cutting Length 185lm / Watt
-
Highlight
exterior led tape light
-
LED SMD2835
-
Color2700K
-
Luminous Efficiency185lm/w
-
Voltage24VDC
-
Wattage22W/M
-
CRI80
-
Working Lifetime(hour)100000h
-
Pcb ColorWhite Color
-
Place of OriginShenzhen China
-
Brand NameTL
-
CertificationCE RoHS ETL UL
-
Model NumberTL-FW28HE-IN128-CV80-10-24V-CCT
-
Document
-
Minimum Order Quantity1000M
-
PriceNegotiable
-
Packaging DetailsCartons
-
Delivery Time2 to 3 weeks
-
Payment TermsT/T
-
Supply Ability30000M per month

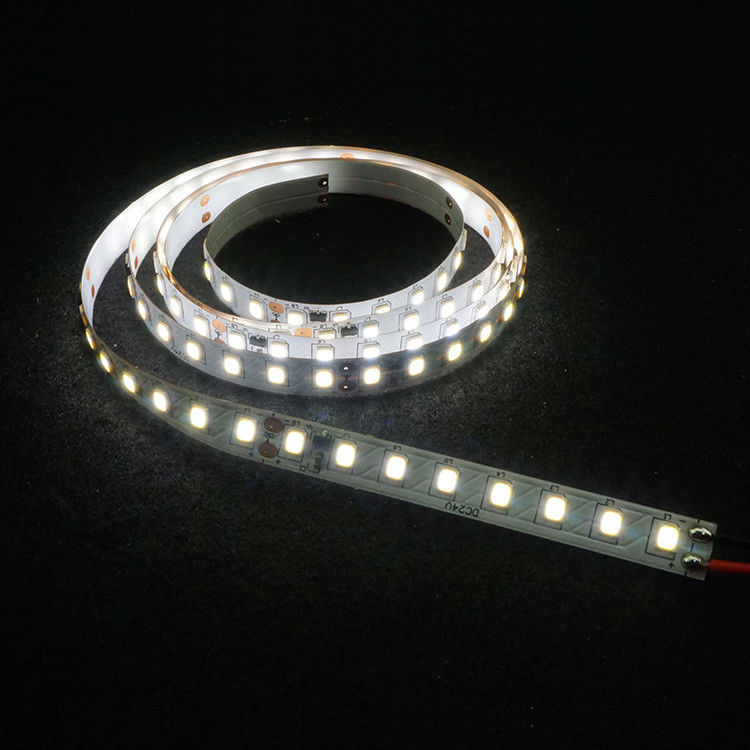

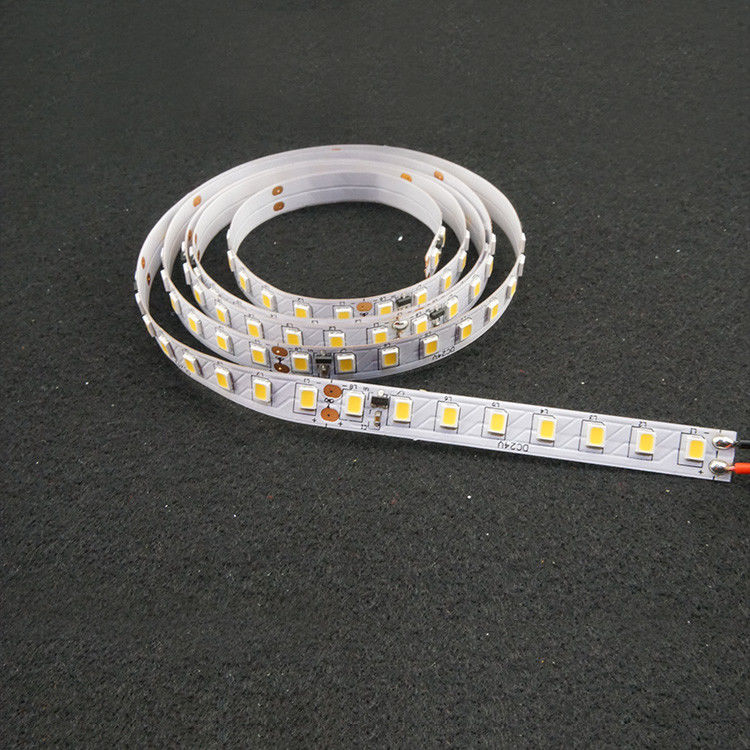

Low VF Flexible Led Light Strip Waterproof 62.5mm Cutting Length 185lm / Watt
Low VF 128 LEDs IP20 LED Strip Lights 62.5mm Cutting Length 185lm per watt
SMD2835
1, High luminous Efficiency 150~185lm/w
2, 128LEDs per meter, 8LEDs per cutting
3, 24vDC
4, Warranty 3 years
5, Beam angle 120°
6, 2 layer PCB/1+2OZ copper 10mm width
7, CRI≥80, lifetime 100000h
8, CCT/X.Y: 2700k 3000k 4000k 5000k 6000k
1, Features
High quality flexible PCB strip with UL ETL RoHS and CE certified
Use 2835 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
8pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 2835 | LED quantity/m | PCS | 128 | |
| LED brand | / | Epistar or equivalent Sanan | LED power dissipation/m | W | 22 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 23 | |
| PCB type | type | 2 layer PCB/1+2oz copper 10mm | Luminous flux±10% | lm/m | 3900 | |
| Length | M | 3 | Efficacy | lm/w | 175 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | TIA806FG | Operating current/m | A | 1.05 | |
| Color | / | WW/NW/CW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥80 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | 2700k | 27S(2645-2805K) X=0.459 Y=0.412 | 125lm/w | Heatsink | [c㎡/m] | 750 |
| 3000k | 29S(2854-3026K) X=0.44 Y=0.403 | 125lm/w | Warranty period | year | 3 | |
| 4000k | 41S(3897-4223K) X=0.38 Y=0.38 | 155lm/w | Life time | H | 30000 | |
| 5000k | 50S(4900-5300K) X=0.346 Y=0.359 | 170lm/w | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
