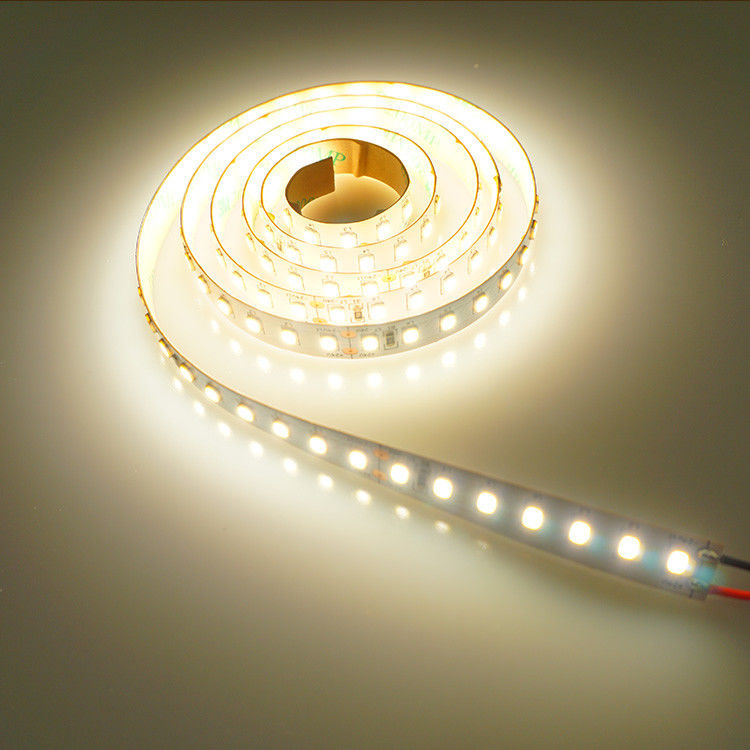

SMD2835 126LEDs Flexible LED Strip Lights 7LEDs Per Cutting 24VDC CRI80 5000K
-
Highlight
exterior led tape light
-
Color4000-6000K
-
Luminous Efficiency145~150lm/w
-
Voltage24VDC
-
Wattage25.8W/M
-
CRI80
-
Working Lifetime(hour)50000h
-
Working Temperature(℃)-25 - 60
-
Emitting ColorCool White
-
Place of OriginShenzhen China
-
Brand NameTL
-
CertificationCE RoHS ETL UL
-
Model NumberTL-FW28HE-IN126-CV80-10-24V-5000K
-
Document
-
Minimum Order Quantity1500M
-
PriceNegotiable
-
Packaging DetailsCartons
-
Delivery TimeTwo to Three weeks
-
Payment TermsT/T
-
Supply Ability30000M per month
SMD2835 126LEDs Flexible LED Strip Lights 7LEDs Per Cutting 24VDC CRI80 5000K
SMD2835 126LEDs 7LEDs Cutting length Indoor LED Strip Lights 24VDC CRI80 150lm 5000K
SMD2835
High luminous Efficiency 145~155lm/w
126LEDs per meter, 7LEDs per cutting 24DCV
Warranty 5 years Beam angle 120°
2 layer PCB/1+2OZ copper 10mm width
CRI≥80, lifetime 50000h
CCT/X.Y: 4000k 5000k 5500k 6000k
Rich colour, variety of colour optional, easy to install, also can be used according to the environmental needs waterproof design, waterproof level as high as IP68, use DC12 and 24 v voltage, safe and reliable.High quality FPC. This strip is designed for optimal performance and brightness without degradation for long term use.
Customized design is warmly welcome!
1, Features
High quality flexible PCB strip with UL ETL RoHS and CE certified
Use 2835 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED, 7pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | 2835 chips | LED quantity/m | PCS | 126 | |
| LED brand | / | Epistar or equivalent Sanan | LED power dissipation/m | W | 23.6 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 25.6 | |
| PCB type | type | 2 layer PCB/1+2oz copper 10mm | Luminous flux±10% | lm/m | 3520 | |
| Length | M | 5 | Efficacy | lm/w | 155 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | TIA806FG | Operating current/m | A | 1.07 | |
| Color | / | WW/NW/CW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥80 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | 2700k | 27S(2645-2805K) X=0.459 Y=0.412 | 130lm/w | Heatsink | [c㎡/m] | 776 |
| 3000k | 29S(2854-3026K) X=0.44 Y=0.403 | 130lm/w | Warranty period | year | 5 | |
| 4000k | 41S(3897-4223K) X=0.38 Y=0.38 | 150lm/w | Life time | H | 50000 | |
| 5000k | 50S(4900-5300K) X=0.346 Y=0.359 | 155lm/w | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
Our products are sold all over the world, you can rest assured.
