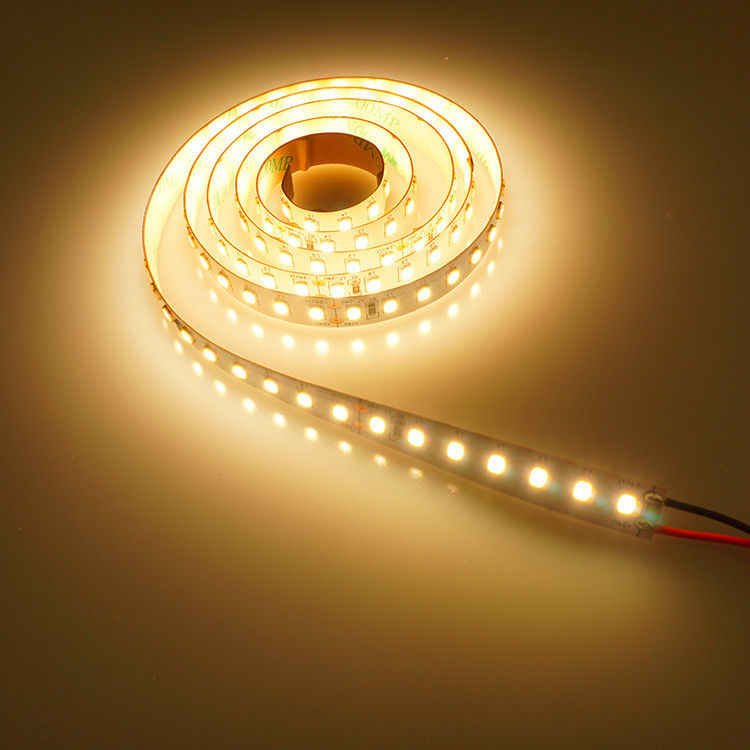

55.5mm Cutting Length Indoor LED Strip Lights 3000k 160lm High Luminous Efficiency
-
Highlight
external led strip lights
-
LED SMD2835 Chips
-
Color2200-4000K
-
Luminous Efficiency140~150lm/w
-
Voltage24VDC
-
Wattage24.8W/M
-
CRI80
-
TypeFlex LED Strips
-
Lamp Luminous Flux(lm)26-31lm/led
-
Place of OriginShenzhen China
-
Brand NameTL
-
CertificationCE RoHS ETL UL
-
Model NumberTL-FW28HE-IN126-CV80-10-24V-3000K
-
Document
-
Minimum Order Quantity1500M
-
PriceNegotiable
-
Packaging DetailsCartons
-
Delivery Time2~3 weeks
-
Payment TermsT/T
-
Supply Ability40000M per month
55.5mm Cutting Length Indoor LED Strip Lights 3000k 160lm High Luminous Efficiency
126pcs 2835LEDs 55.5mm Cutting length Indoor LED Strip Lights 24VDC CRI80 160lm 3000k
SMD2835
1, High luminous Efficiency 140~150lm/w
2, 126LEDs per meter, 7LEDs per cutting
3, 24DCV
4, Warranty 3 years
5, Beam angle 120°
6, 2 layer PCB/1+2OZ copper 10mm width
7, CRI≥80, lifetime 50000h
8, CCT/X.Y: 2200k 2700k 3000k 4000k
1, Features
High quality flexible PCB strip with UL ETL RoHS and CE certified
Use 2835 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
7pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 2835 | LED quantity/m | PCS | 126 | |
| LED brand | / | Epistar or equivalent Sanan | LED power dissipation/m | W | 23.3 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 25.4 | |
| PCB type | type | 2 layer PCB/1+2oz copper 10mm | Luminous flux±10% | lm/m | 3530 | |
| Length | M | 5 | Efficacy | lm/w | 155 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | TIA806FG | Operating current/m | A | 1.08 | |
| Color | / | WW/NW/CW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥80 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | 2700k | 27S(2645-2805K) X=0.459 Y=0.412 | 130lm/w | Heatsink | [c㎡/m] | 785 |
| 3000k | 29S(2854-3026K) X=0.44 Y=0.403 | 130lm/w | Warranty period | year | 5 | |
| 4000k | 41S(3897-4223K) X=0.38 Y=0.38 | 140lm/w | Life time | H | 30000 | |
| 5000k | 50S(4900-5300K) X=0.346 Y=0.359 | 150lm/w | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
