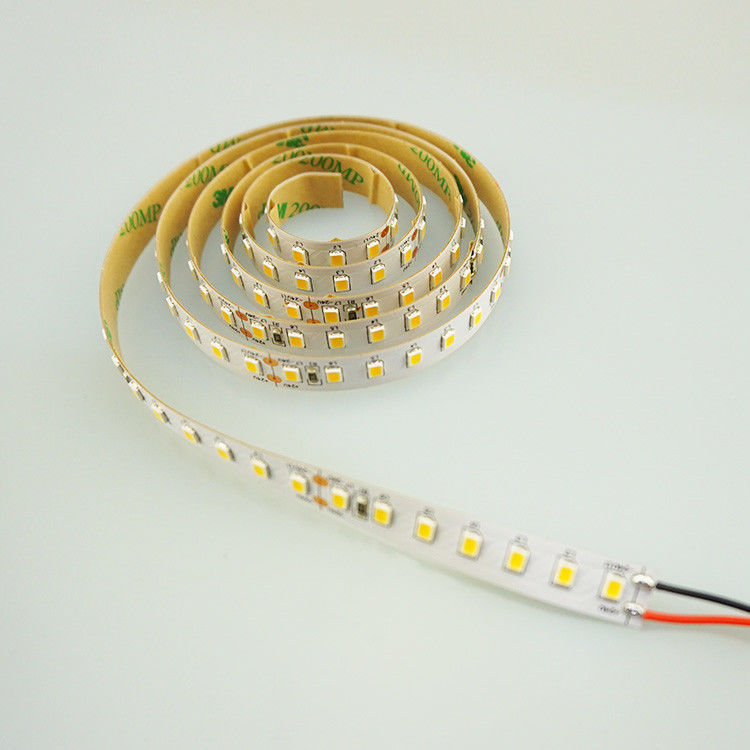

High Brightness Color Changing LED Strip CRI90 50000h Long Work Life
-
Highlight
exterior led tape light
-
LED SMDSMD2835
-
Color2200-4000K
-
Luminous Efficiency150~160lm/w
-
Voltage24VDC
-
Wattage25W/M
-
CRI90
-
Working Lifetime(hour)50000h
-
Pcb ColorCopper Color
-
Place of OriginShenzhen China
-
Brand NameTL
-
CertificationCE RoHS ETL UL
-
Model NumberTL-FW28HE-IN126-CV90-10-24V-CCT
-
Document
-
Minimum Order Quantity1000M
-
PriceNegotiable
-
Packaging DetailsCartons
-
Delivery Time2 to 3 weeks
-
Payment TermsT/T
-
Supply Ability30000M per month
High Brightness Color Changing LED Strip CRI90 50000h Long Work Life
126pcs 2835LEDs 55.5mm Cutting length Indoor LED Strip Lights 24VDC CRI80 160lm per watt
SMD2835
1, High luminous Efficiency 150~160lm/w
2, 126LEDs per meter, 7LEDs per cutting
3, 24DCV
4, Warranty 3 years
5, Beam angle 120°
6, 2 layer PCB/1+2OZ copper 10mm width
7, CRI≥90, lifetime 50000h
8, CCT/X.Y: 2200k 2700k 3000k 4000k
1, Features
High quality flexible PCB strip with UL ETL RoHS and CE certified
Use 2835 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
7pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 2835 | LED quantity/m | PCS | 126 | |
| LED brand | / | Epistar or equivalent Sanan | LED power dissipation/m | W | 23.3 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 25.9 | |
| PCB type | type | 2 layer PCB/1+2oz copper 10mm | Luminous flux±10% | lm/m | 3500 | |
| Length | M | 5 | Efficacy | lm/w | 155 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | TIA806FG | Operating current/m | A | 1.08 | |
| Color | / | WW/NW/CW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥90 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | 2700k | 27S(2645-2805K) X=0.459 Y=0.412 | 130lm/w | Heatsink | [c㎡/m] | 777 |
| 3000k | 29S(2854-3026K) X=0.44 Y=0.403 | 130lm/w | Warranty period | year | 3 | |
| 4000k | 41S(3897-4223K) X=0.38 Y=0.38 | 150lm/w | Life time | H | 30000 | |
| 5000k | 50S(4900-5300K) X=0.346 Y=0.359 | 160lm/w | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
