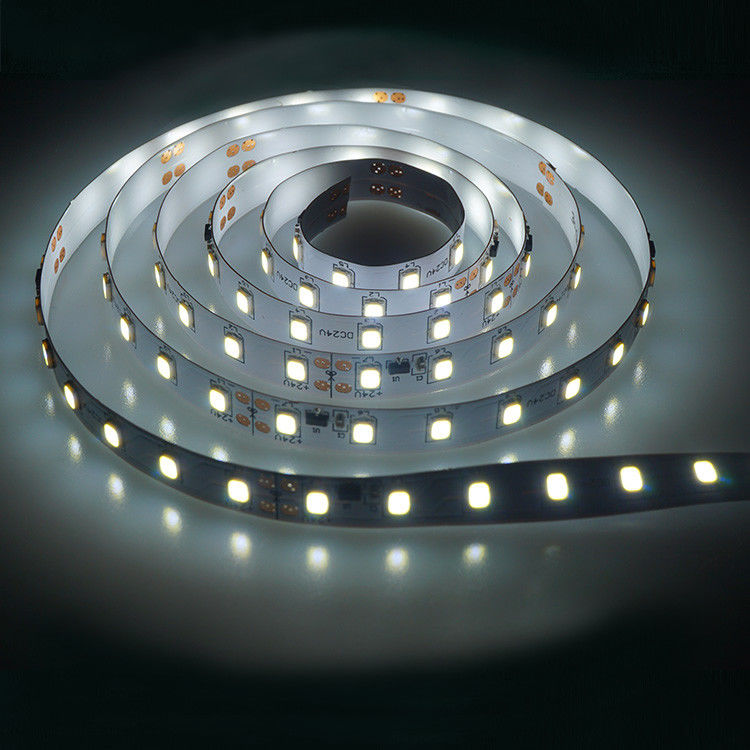

SMD 2835 LED Tape Strip Lights 71.4mm Cutting Length 24VDC Low Voltage
-
Highlight
exterior led tape light
-
LED2835 Chips
-
Color2500-6500K
-
Luminous Efficiency110~120lm/w
-
Voltage24VDC
-
Wattage19.2W/M
-
CRI80
-
Working Lifetime(hour)50000h
-
Ip RatingIP20
-
Place of OriginShenzhen China
-
Brand NameTL
-
CertificationCE RoSH ETL UL
-
Model NumberTL-FW28CE-IN98-CV90-10-24V-CCT
-
Document
-
Minimum Order Quantity1000M
-
PriceNegotiable
-
Packaging DetailsCartons
-
Delivery Time15-20 work days
-
Payment TermsT/T
-
Supply Ability30000M per month
SMD 2835 LED Tape Strip Lights 71.4mm Cutting Length 24VDC Low Voltage
2835 LED Strips Indoor LED Strip Lights 71.4mm Cutting length 24VDC CRI90 120lm
SMD2835
1, High luminous Efficiency 110~120lm/w
2, 98LEDs per meter, 7LEDs per cutting
3, 24DCV
4, Warranty 3 years
5, Beam angle 120°
6, 2 layer PCB/1+2OZ copper 10mm width
7, CRI≥90, lifetime 30000h
8, CCT/X.Y: 2200k 2700k 3000k 4000k 5000k 6000k
1, Features
High quality flexible PCB strip with ETL and CE certified
Use 2835 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
7pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 2835 | LED quantity/m | PCS | 98 | |
| LED brand | / | Epistar or equivalent Sanan | LED power dissipation/m | W | 19.62 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 21.8 | |
| PCB type | type | 2 layer PCB/1+2oz copper 10mm | Luminous flux±10% | lm/m | 2500 | |
| Length | M | 5 | Efficacy | lm/w | 110 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | 9495 200MP | Operating current/m | A | 0.91 | |
| Color | / | WW/NW/CW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥90 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | 2700k | 27S(2645-2805K) X=0.459 Y=0.412 | 110lm/w | Heatsink | [c㎡/m] | 654 |
| 3000k | 29S(2854-3026K) X=0.44 Y=0.403 | 110lm/w | Warranty period | year | 3 | |
| 4000k | 41S(3897-4223K) X=0.38 Y=0.38 | 120lm/w | Life time | H | 30000 | |
| 5000k | 50S(4900-5300K) X=0.346 Y=0.359 | 120lm/w | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
5, Package
