Commercial IP20 Safe Indoor LED Strip Lights 140lm/W 70LEDs Per Meter
-
Highlight
exterior led tape light
-
LED SMD2835 LEDs
-
Color2200-4000K
-
Luminous Efficiency135-140lm/w
-
Voltage24VDC
-
Wattage16W Per Meter
-
CRI80
-
TypeFlex LED Strips
-
Working Temperature(℃)-20~50℃
-
Place of OriginShenzhen China
-
Brand NameTL
-
CertificationETL CE RoHS
-
Model NumberTL-FW28HE-IN70-CV80-10-24V-40K
-
Document
-
Minimum Order Quantity1000M
-
PriceNegotiable
-
Packaging DetailsCartons
-
Delivery Time2-3 weeks
-
Payment TermsT/T
-
Supply Ability30000M per month

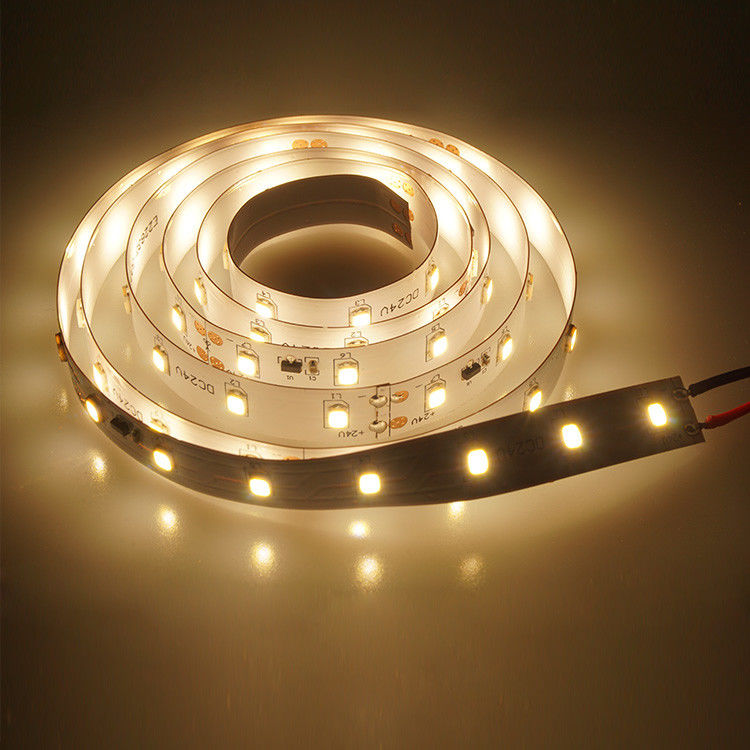

Commercial IP20 Safe Indoor LED Strip Lights 140lm/W 70LEDs Per Meter
SMD2835 LED strips 70LEDs per meter 100mm cutting length 24VDC 140lm per watt IP20
SMD2835
1, High luminous Efficiency 135~140lm/w
2, 70LEDs per meter, 7LEDs per cutting
3, 24DCV
4, Warranty 3 years
5, Beam angle 120°
6, 2 layer PCB/1+1OZ copper 8mm width
7, CRI≥80, lifetime 30000h
8, CCT/X.Y: 2200k 2700k 3000k 4000k
1, Features
High quality flexible PCB strip with ETL UL RoHS and CE certified
Use 2835 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
7pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 2835 | LED quantity/m | PCS | 70 | |
| LED brand | / | Epistar or equivalent Sanan | LED power dissipation/m | W | 15.1 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 16.85 | |
| PCB type | type | 2 layer PCB/1+1oz copper 8mm | Luminous flux±10% | lm/m | 2310 | |
| Length | M | 5 | Efficacy | lm/w | 140 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | 3M 9495 200MP | Operating current/m | A | 0.7 | |
| Color | / | WW/NW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥80 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | 2700k | 27S(2645-2805K) X=0.459 Y=0.412 | 125lm/w | Heatsink | [c㎡/m] | 504 |
| 3000k | 29S(2854-3026K) X=0.44 Y=0.403 | 125lm/w | Warranty period | year | 3 | |
| 4000k | 41S(3897-4223K) X=0.38 Y=0.38 | 135lm/w | Life time | H | 30000 | |
| 5000k | 50S(4900-5300K) X=0.346 Y=0.359 | 140lm/w | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
5, Package
Our products are sold all over the world, you can rest assured.
