80 CRI Flexible Multi Color LED Light Strips High Luminous Efficiency
-
Highlight
exterior led tape light
-
LED SMDSMD2835
-
Color4000-6500K
-
Luminous Efficiency135-140lm/w
-
Voltage24VDC
-
Wattage16W/M
-
CRI80
-
TypeFlex LED Strips
-
Lamp Body MaterialCopper
-
Place of OriginShenzhen China
-
Brand NameTL
-
CertificationCE RoHS ETL UL
-
Model NumberTL-FW28HE-IN70-CV80-10-24V-40K
-
Document
-
Minimum Order Quantity1000M
-
PriceNegotiable
-
Packaging DetailsCartons
-
Delivery Time2-3 weeks
-
Payment TermsT/T
-
Supply Ability30000M per month
80 CRI Flexible Multi Color LED Light Strips High Luminous Efficiency

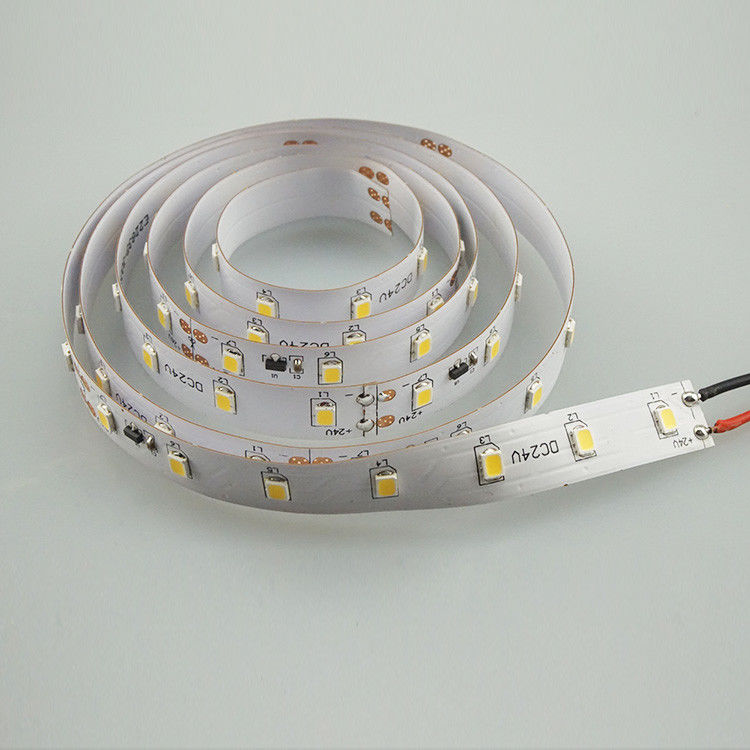

2835 LED strips 70LEDs per meter 7LEDs cutting 24VDC 140lm per watt IP20
SMD2835
1, High luminous Efficiency 135~140lm/w
2, 70LEDs per meter, 7LEDs per cutting
3, 24DCV
4, Warranty 3 years
5, Beam angle 120°
6, 2 layer PCB/1+1OZ copper 8mm width
7, CRI≥80, lifetime 30000h
8, CCT/X.Y: 4000k 5000k 6000k
1, Features
High quality flexible PCB strip with ETL UL RoHS and CE certified
Use 2835 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
7pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 2835 | LED quantity/m | PCS | 70 | |
| LED brand | / | Epistar or equivalent Sanan | LED power dissipation/m | W | 15.12 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 16.8 | |
| PCB type | type | 2 layer PCB/1+1oz copper 8mm | Luminous flux±10% | lm/m | 2300 | |
| Length | M | 5 | Efficacy | lm/w | 140 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | 3M 9495 200MP | Operating current/m | A | 0.7 | |
| Color | / | WW/NW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥80 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | 2700k | 27S(2645-2805K) X=0.459 Y=0.412 | 125lm/w | Heatsink | [c㎡/m] | 504 |
| 3000k | 29S(2854-3026K) X=0.44 Y=0.403 | 125lm/w | Warranty period | year | 3 | |
| 4000k | 41S(3897-4223K) X=0.38 Y=0.38 | 135lm/w | Life time | H | 30000 | |
| 5000k | 50S(4900-5300K) X=0.346 Y=0.359 | 140lm/w | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
5, Package
