Warm White Bendable LED Strip Lights No UV No Radiation Eco Friendly
-
Highlight
exterior led tape light
-
LED SMDSMD2835
-
Color2200-4000K
-
Luminous Efficiency120~135lm/w
-
Voltage24VDC
-
Wattage25W/M
-
CRI90
-
TypeFlex LED Strips
-
Lamp Body MaterialCopper
-
Place of OriginShenzhen China
-
Brand NameTL
-
CertificationCE RoHS ETL UL
-
Model NumberTL-FW28HE-IN128-CV90-10-24V-CCT
-
Document
-
Minimum Order Quantity1000M
-
PriceNegotiable
-
Packaging DetailsCartons
-
Delivery Time2-3 weeks
-
Payment TermsT/T
-
Supply Ability30000M per month

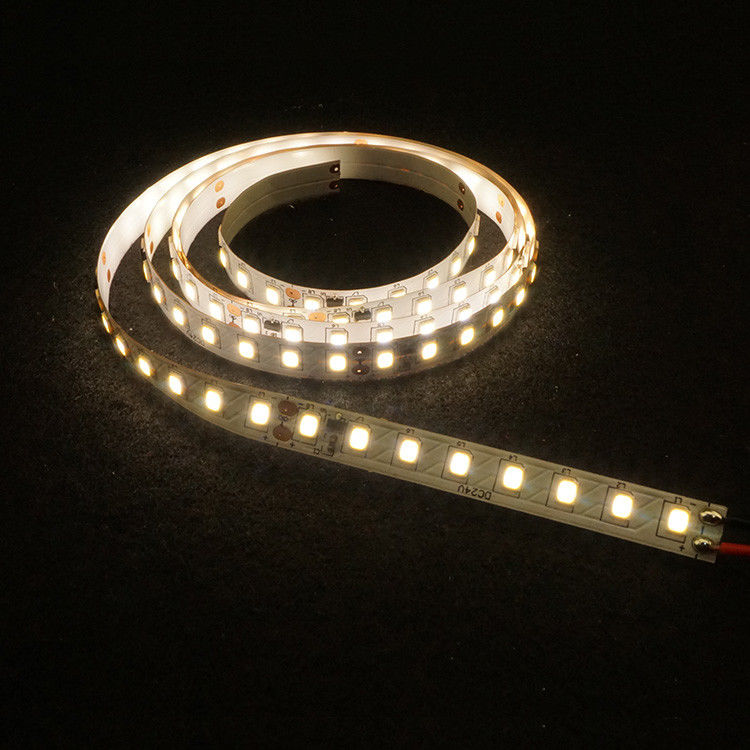

Warm White Bendable LED Strip Lights No UV No Radiation Eco Friendly
SMD2835 128 LEDs Indoor 8LEDs Cutting LED Strip Lights 24VDC CRI90 130lm per watt
SMD2835
1, High luminous Efficiency 120~135lm/w
2, 128LEDs per meter, 8LEDs per cutting
3, 24DCV
4, Warranty 3 years
5, Beam angle 120°
6, 2 layer PCB/1+2OZ copper 10mm width
7, CRI≥90, lifetime 30000h
8, CCT/X.Y: 2200k 2700k 3000k 4000k
1, Features
High quality flexible PCB strip with ETL, RoHS and CE certified
Use 2835 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
8pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 2835 | LED quantity/m | PCS | 128 | |
| LED brand | / | Epistar or equivalent Sanan | LED power dissipation/m | W | 22.5 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 25 | |
| PCB type | type | 2 layer PCB/1+2oz copper 10mm | Luminous flux±10% | lm/m | 3200 | |
| Length | M | 3 | Efficacy | lm/w | 130 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | TIA806FG | Operating current/m | A | 1.05 | |
| Color | / | WW/NW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥90 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | 2700k | 27S(2645-2805K) X=0.459 Y=0.412 | 125lm/w | Heatsink | [c㎡/m] | 750 |
| 3000k | 29S(2854-3026K) X=0.44 Y=0.403 | 125lm/w | Warranty period | year | 3 | |
| 4000k | 41S(3897-4223K) X=0.38 Y=0.38 | 135lm/w | Life time | H | 30000 | |
| 5000k | 50S(4900-5300K) X=0.346 Y=0.359 | 135lm/w | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
5, Package
