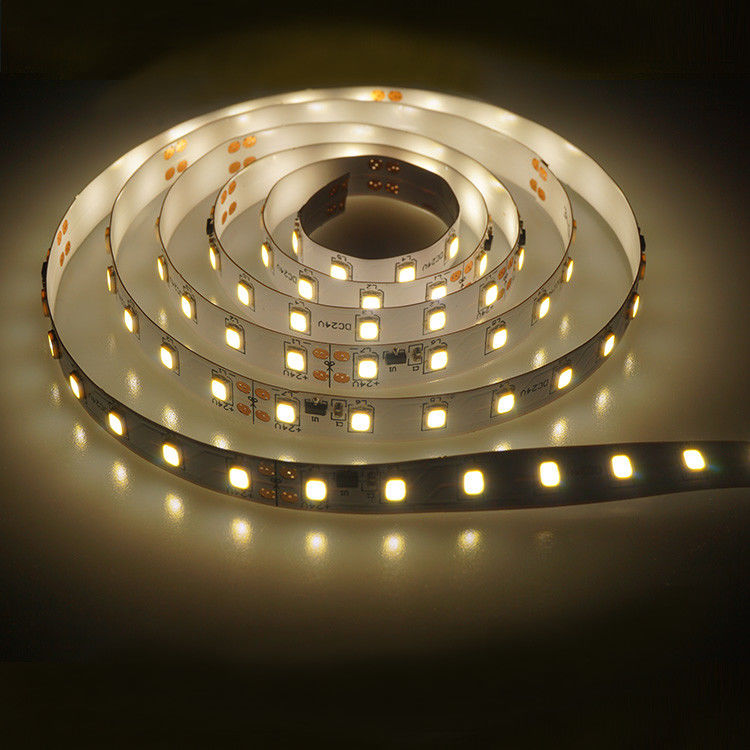

2 Layer PCB Indoor LED Strip Lights 2oz Copper Dimmable LED Strip Lights
-
Highlight
exterior led tape light
-
LEDSMD 2835 3030
-
Color2700-5000K
-
Luminous Efficiency110~120lm/w
-
Voltage24VDC
-
Wattage19.62W/M
-
CRI80
-
TypeFlex LED Strips
-
Led Quantity98leds/m
-
Place of OriginShenzhen China
-
Brand NameTL
-
CertificationCE ROSH UL
-
Model NumberTL-FW28CE-IN98-CV90-10-24V-CCT
-
Document
-
Minimum Order Quantity1000M
-
PriceNegotiable
-
Packaging DetailsCartons
-
Delivery Time14-21 work days
-
Payment TermsT/T
-
Supply Ability30000M per month
2 Layer PCB Indoor LED Strip Lights 2oz Copper Dimmable LED Strip Lights
2835 LED Strips Indoor LED Strip Lights 7LEDs Cutting 24VDC CRI90 120lm per watt
SMD2835
High luminous Efficiency 110~120lm/w
98LEDs per meter, 7LEDs per cutting
24DCV
Warranty 3 years
Beam angle 120°
2 layer PCB/1+2OZ copper 10mm width
CRI≥90, lifetime 30000h
CCT/X.Y: 2300k 2700k 3000k 4000k 5000k 6000k
1, Features
High quality flexible PCB strip with ETL and CE certified
Use 2016 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
7pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 2835 | LED quantity/m | PCS | 98 | |
| LED brand | / | Epistar or equivalent Sanan | LED power dissipation/m | W | 19.62 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 21.8 | |
| PCB type | type | 2 layer PCB/1+2oz copper 10mm | Luminous flux±10% | lm/m | 2500 | |
| Length | M | 5 | Efficacy | lm/w | 110 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | 9495 200MP | Operating current/m | A | 0.91 | |
| Color | / | WW/NW/CW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥90 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | 2700k | 27S(2645-2805K) X=0.459 Y=0.412 | 110lm/w | Heatsink | [c㎡/m] | 654 |
| 3000k | 29S(2854-3026K) X=0.44 Y=0.403 | 110lm/w | Warranty period | year | 3 | |
| 4000k | 41S(3897-4223K) X=0.38 Y=0.38 | 120lm/w | Life time | H | 30000 | |
| 5000k | 50S(4900-5300K) X=0.346 Y=0.359 | 120lm/w | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
5, Package
