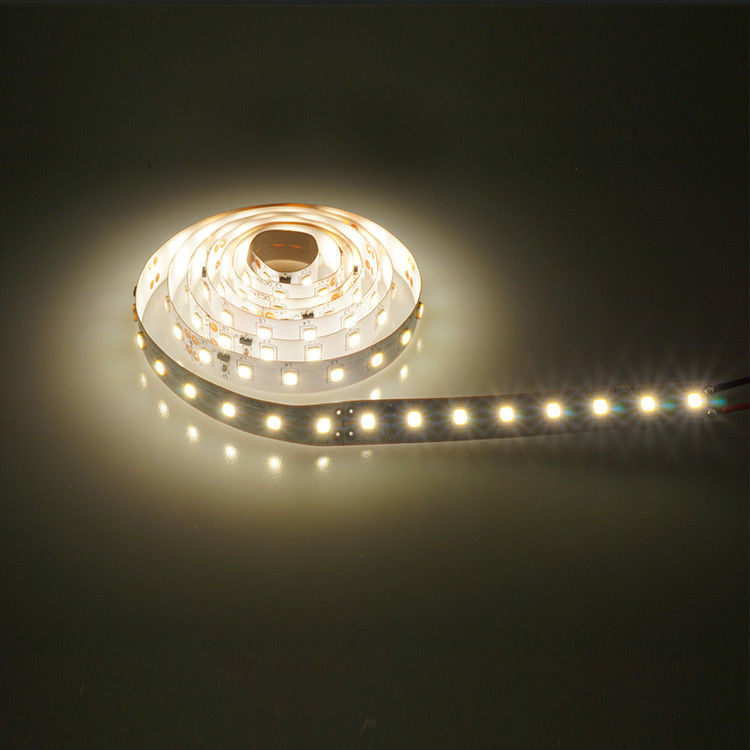

High Performance Durable Indoor LED Strip Lights 50000h Long Working Life
-
Highlight
external led strip lights
-
Color2700-5000K
-
Luminous Efficiency110-120lm/w
-
Voltage12VDC 24VDC
-
CRI90
-
TypeFlex LED Strips
-
Cutting Length62.5mm
-
Working Lifetime(hour)50000
-
Led Quantity96leds/m
-
Place of OriginShenzhen China
-
Brand NameTL
-
CertificationCE ROSH ETL UL
-
Model NumberTL-FW28CB-IN96-10-CC90-24V-CCT
-
Document
-
Minimum Order Quantity1000M
-
PriceNegotiable
-
Packaging DetailsCartons
-
Delivery Time2-3 weeks
-
Payment TermsT/T
-
Supply Ability50000M per month
High Performance Durable Indoor LED Strip Lights 50000h Long Working Life
2835 LED Strip Indoor LED Strip Lights 6LEDs Cutting 24VDC CRI90 120lm per watt
SMD2835
High luminous Efficiency 115~125lm/w
96LEDs per meter, 6LEDs per cutting, 12VDC 24DCV
Warranty 3 years
Beam angle 120°
2 layer PCB/1+1OZ copper 10mm width
CRI≥90, lifetime 50000h
CCT/X.Y: 2200k 2700k 3000k 4000k 5000k 6000k
1, Features
High quality flexible PCB strip with ETL, CE and RoHS certified
Use 2835 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
6pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 2835 | LED quantity/m | PCS | 96 | |
| LED brand | / | Epistar or equivalent | LED power dissipation/m | W | 17.28 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 19.2 | |
| PCB type | type | 2 layer PCB/1+1oz copper 10mm | Luminous flux±10% | lm/m | 2300 | |
| Length | M | 5 | Efficacy | lm/w | 120 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | 3M 9495 200MP | Operating current/m | A | 0.8 | |
| Color | / | WW/NW/CW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥80 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | 2700k | 27S(2645-2805K) X=0.459 Y=0.412 | 115lm/w | Heatsink | [c㎡/m] | 576 |
| 3000k | 29S(2854-3026K) X=0.44 Y=0.403 | 115lm/w | Warranty period | year | 2 | |
| 4000k | 41S(3897-4223K) X=0.38 Y=0.38 | 125lm/w | Life time | H | 30000 | |
| 5000k | 50S(4900-5300K) X=0.346 Y=0.359 | 125lm/w | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
5, Package
