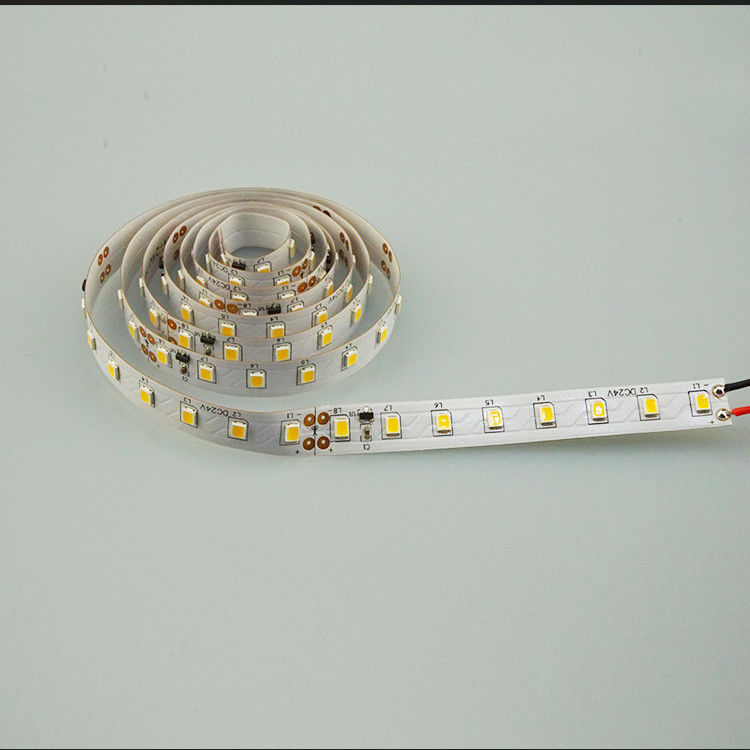

19.2W/M LED Strip Light Fixture SMD 3030 Energy Saving LED Flex Tape Lighting
-
Highlight
exterior led tape light
-
LEDSMD 2835 3030
-
Color2200-5500K
-
Luminous Efficiency110-120lm/w
-
Voltage24VDC
-
Wattage19.2W/M
-
CRI80
-
TypeFlex LED Strips
-
Cutting Length62.5mm
-
Place of OriginShenzhen
-
Brand NameTL
-
CertificationCE ROSH ETL
-
Model NumberTL-FW28CB-IN96-10-CC80-24V-CCT
-
Document
-
Minimum Order Quantity1000M
-
PriceNegotiable
-
Packaging DetailsCarton
-
Delivery Time2 weeks
-
Payment TermsT/T
-
Supply Ability50000M per month
19.2W/M LED Strip Light Fixture SMD 3030 Energy Saving LED Flex Tape Lighting
2835 3030 LED Strips Indoor LED Strip Lights 6LEDs Cutting 24VDC CRI80 125lm per watt
SMD2835
1, High luminous Efficiency 110~120lm/w
2, 96LEDs per meter, 6LEDs per cutting, 24DCV
3, Warranty 3 years
4, Beam angle 120°
5, 2 layer PCB/1+2OZ copper 10mm width
6, CRI≥80, lifetime 30000h
7, CCT/X.Y: 2200k 2700k 3000k 4000k 5000k 6000k
1, Features
High quality flexible PCB strip with ETL, CE and RoHS certified
Use 2835 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
6pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 2835 | LED quantity/m | PCS | 96 | |
| LED brand | / | Epistar or equivalent | LED power dissipation/m | W | 17.28 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 19.2 | |
| PCB type | type | 2 layer PCB/1+1oz copper 10mm | Luminous flux±10% | lm/m | 2300 | |
| Length | M | 5 | Efficacy | lm/w | 120 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | 3M 9495 200MP | Operating current/m | A | 0.8 | |
| Color | / | WW/NW/CW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥80 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | 2700k | 27S(2645-2805K) X=0.459 Y=0.412 | 110lm/w | Heatsink | [c㎡/m] | 576 |
| 3000k | 29S(2854-3026K) X=0.44 Y=0.403 | 110lm/w | Warranty period | year | 2 | |
| 4000k | 41S(3897-4223K) X=0.38 Y=0.38 | 120lm/w | Life time | H | 30000 | |
| 5000k | 50S(4900-5300K) X=0.346 Y=0.359 | 120lm/w | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
5, Package
