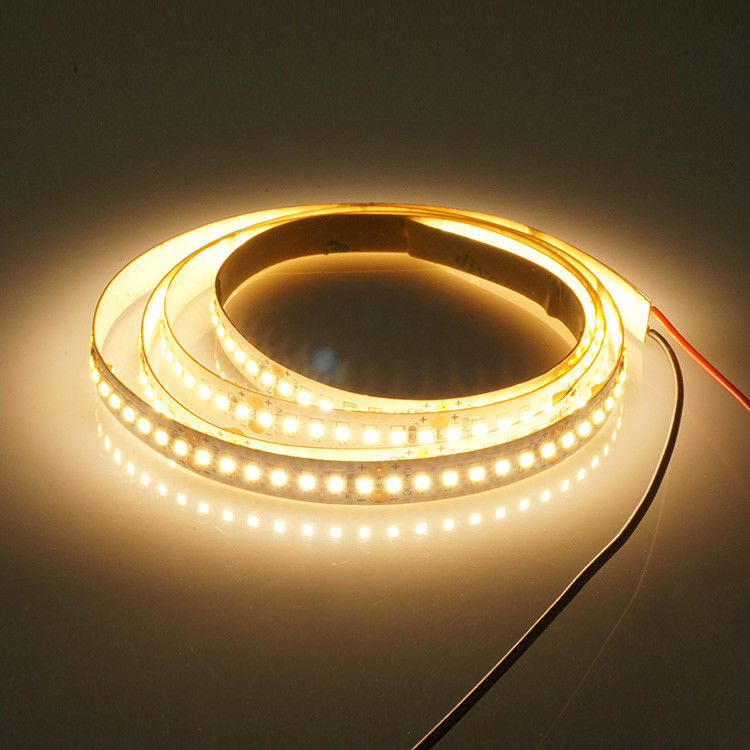

8mm Width PCB Adhesive LED Light Strips Noinfrared 120 Degree Large Vier Angle
-
Highlight
exterior led tape light
-
LEDSMD 2016
-
Color2700-6000K
-
Luminous Efficiency115-140lm/w
-
Voltage24VDC
-
Wattage16.5W/M
-
CRI80
-
Place of OriginShenzhen,China
-
Brand NameTL
-
CertificationCE,ROSH,UL
-
Model NumberTL-FW20CE-IN238-CV80-8-24V-CCT
-
Document
-
Minimum Order Quantity500M
-
PriceNegotiable
-
Packaging DetailsCarton
-
Delivery Time7-15 workdays
-
Payment TermsT/T
-
Supply Ability30000M per month
8mm Width PCB Adhesive LED Light Strips Noinfrared 120 Degree Large Vier Angle
2016 LED Strips , Indoor LED Strip Lights , 7LEDs Cutting , 24VDC , CRI80 High Luminous Efficiency
SMD2016
High luminous Efficiency 115~140lm/w
238LEDs per meter, 7LEDs per cutting
24DCV
Warranty 3 years
Beam angle 120°
2 layer PCB/1+1OZ copper 8mm width
CRI≥90, lifetime 30000h
CCT/X.Y: 2300k 2700k 3000k 4000k 5000k 6000k
1, Features
High quality flexible PCB strip with ETL and CE certified
Use 2016 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
7pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 2016 | LED quantity/m | PCS | 238 | |
| LED brand | / | Epistar or equivalent | LED power dissipation/m | W | 14.69 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 16.3 | |
| PCB type | type | 2 layer PCB/1+1oz copper 8mm | Luminous flux±10% | lm/m | 2200 | |
| Length | M | 5 | Efficacy | lm/w | 130 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | 9495 200MP | Operating current/m | A | 0.68 | |
| Color | / | WW/NW/CW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥90 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | 2700k | 27S(2645-2805K) X=0.459 Y=0.412 | 120lm/w | Heatsink | [c㎡/m] | 489 |
| 3000k | 29S(2854-3026K) X=0.44 Y=0.403 | 120lm/w | Warranty period | year | 3 | |
| 4000k | 41S(3897-4223K) X=0.38 Y=0.38 | 130lm/w | Life time | H | 30000 | |
| 5000k | 50S(4900-5300K) X=0.346 Y=0.359 | 130lm/w | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
5, Package
