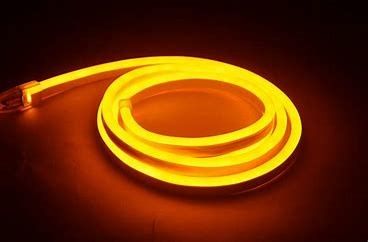

Mini 8x10mm 12v 24v Side View 2.5cm Cut Length Led Flex Neon Strip Rope for Sign Logo

Product features

• Dot-free linear neon-like illumination
• Fabricated with Eco-friendly, UV-resistant silicone material; V-2 flame resistance;
•  Flexible PCB with 2835 SMD LED technology;
•  5mm cutting mark by each, much flexible on different length request;
• Small size L6XW12mm, economical; CE RoH, cULus Listed

.

Application data

Installation

U-type PC accessory to fix

Technical data

① Tolerance range for optical and electrical data: ±15 %.

② All value @ ta=25℃.

③ Voltage tolerance range of the power supply: ±5 %.

Product 2D drawing

• 12VDC/24VDC product interior drawing

                                                                            3 LEDs cut-able

                                                                            6 LEDs cut-able

• Product installation schematic diagram

Product sectional drawing

Product application

     Product      ⇒    Fix letter groove   ⇒    Clip product       ⇒    Actual result

Connect two products

           Product      ⇒  Cut the product based    ⇒ Solder the wire  ⇒    Actual result

                                           on application requirement          “+/+”, “-/-“

Benging direction

The maximum bending angle 360°The minimum bending radius: 15mm (0.59")

Light distribution

Packaging information
