Highlight
led rope light
,led neon sign lights
-
Part NoTL-SW10CA/B
-
LED Qty/m108pcs
-
LEDSMD5050
-
MaterialsSilicone
-
IP GradeIP67
-
ColorRGB
-
VoltageDC12V/24V
-
PerformanceStable Reliability,UV And Yellowish Resistant
-
Cut Length28mm/56mm
-
CertificationUL CE ROSH
-
Place of OriginShenzhen,China
-
Brand NameTL
-
CertificationCE,ROSH,UL
-
Model NumberTL-SW10CA/B
-
Document
-
Minimum Order Quantity1pcs
-
PriceNegotiable
-
Packaging DetailsCarton
-
Delivery Time7-15 workdays
-
Payment TermsT/T
-
Supply Ability5000m/day

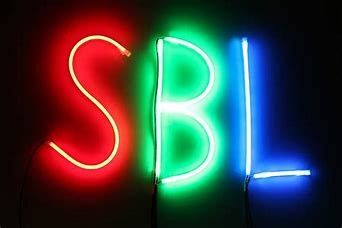

SMD5050 LED Neon Lights Side View 56mm Cut Length RGB Color IP67
SMD5050 LED Neon Lights Side View 56mm Cut Length RGB Color IP67
Application
-
Can be Widely used in building outline decoration lighting, KTV decoration lighting, Car decoration lighting,
urban lighting and others decoration lighting.
Product features
- Product standard length: 5 meters(16.4ft).
- Product can be fixed in the rugged place (smooth surface and bendable).
- Beam angle: 150°.
- Input voltage: 12VDC/24VDC.
- Excellent lumen maintenance (3oz FPC).
- 12VDC product: maximum length 5 meters (16.4ft).
- 24VDC product: maximum length 10 meters (32.8ft).
- Flexible cutting (the cut mouth sealed by silicone glue).
- IP68.
- Stable reliability and anti-UV.
Technical data
| Part No | light color | light wavelength (nm) | light angle (°) | lumens (lm/m) | light efficiency (lm/W) | voltage (DC/V) | power (W/M) |
|
TL-SW10CA/B |
R | 617 | 120 | 55.25 | 12.79 | 12/24 |
17.28 |
| G | 515 | 120 | 136.79 | 21.11 | 12/24 | ||
| B | 462 | 120 | 26.19 | 4.042 | 12/24 |
① Tolerance range for optical and electrical data: ±15 %.
② All value @ ta=25℃.
③ Voltage tolerance range of the power supply: ±5 %.
Application data
| Maximum length① |
10/15 meters (32.8/49.2ft) |
| Ambient temperature range | -25 ~ +50 °C |
| The temperature of module top | 65 °C |
| Storage temperature range | -40 ~ +70 °C |
| Certification | CE/UL/ RoHS |
Installation
U-type PC accessory to fix
Product 2D drawing
- 12VDC/24VDC product interior drawing
- Product installation schematic diagram
Product sectional drawing
Product application
Product ⇒ Fix letter groove ⇒ Clip product ⇒ Actual result
Connect two products
Product ⇒ Cut the product based ⇒ Solder the wire ⇒ Actual result
on application requirement “+/+”, “-/-“
Benging direction
The maximum bending angle 360°The minimum bending radius: 15mm (0.59")
Light distribution
Packaging information
|
Product name |
Productd dimension (L*W*H) |
Carton dimension (mm/inch) |
Total length/carton |
Gross |
|
RCC0GX06A/B(2835) |
5m*10mm*17mm (16.4ft*0.39"*0.67") |
390*390*325 (15.4"*15.4"*12.8") |
60m (195ft) |
15.5 |
