Multi Color LED Neon Lights Slim Silicone 50000H Lifetime ROSH Certification
-
Highlight
led rope light
-
MaterialSilicon
-
Standard Length5 Meters(16.4ft)/10m(32.8ft)
-
Beam Angle150°
-
Input Voltage12V/24V
-
Power14w/m
-
ColorWhite/red/green/blue/yellow /pink/purple
-
WaterproofIP68
-
PerformanceStable Reliability,UV And Yellowish Resistant
-
Lifetime50000H
-
CertificationUL CE ROSH
-
Place of OriginShenzhen,China
-
Brand NameTL
-
CertificationCE,ROSH,UL
-
Model NumberTL-SW08A/B
-
Document
-
Minimum Order Quantity1pcs
-
PriceNegotiable
-
Packaging DetailsCarton
-
Delivery Time7-15 workdays
-
Payment TermsT/T
-
Supply Ability5000m/day
Multi Color LED Neon Lights Slim Silicone 50000H Lifetime ROSH Certification
Multi Color LED Neon Lights Slim Silicone 50000H Lifetime ROSH Certification

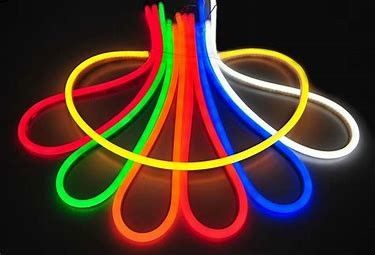

RGB LED Neon Light is the latest decorative light with the photoelectric technology. It combined Neon light controller with Tricolor (RGB) LED light source, having the characteristics of the full color gradual changing of LED Digital Tube and dynamic brightness of neon light, as well as the effects of synchronous gradual full color changing, skip changing, water flow changing, pursuing and sweeping and so on. Its appearance will replace LED digital Tube series and LED rope light series completely.
Advantage
- Weather Resistant: IP67
- Higher brightness: 240 Ultra bright LEDs/meter (R:80 G:80 B:80)
- Easy Installation: Simply put it into aluminum channel, make it to various shapes.
- Longer Life: Theoretically 40,000 hrs.
- Low Voltage Options: 12V and 24VDC available
- Low Heat: LED is cold light source, reduce the nitrogen dioxide
- Extremely Low Maintenance Costs
- 70% less energy consumption of glass neon
- Does not interfere with Video/Audio systems nearb
Product features
- Dot-free linear neon-like illumination;
- Fabricated with Eco-friendly, UV-resistant silicone material;
- V-2 flame resistance;
- Flexible PCB with 2835 SMD LED technology;
- 25mm cutting mark by each, much flexible on different length request;
- Small size L6XW12mm, economical;
- IP68.
- table reliability and anti-UV.
- CE RoH, cULus Listed.
Application data
| Maximum length① |
10/15 meters (32.8/49.2ft) |
| Ambient temperature range | -25 ~ +50 °C |
| The temperature of module top | 65 °C |
| Storage temperature range | -40 ~ +70 °C |
| Certification | CE/UL/ RoHS |
Installation
U-type PC accessory to fix
Technical data
| Part No. | TL-SW08A/B |
| LED Qty/m | 120pcs |
| LED | SMD 2835 |
| IP Grade | IP67 |
| Materials | Silicone |
| Power (W/m) | 9.6W/m |
| Voltage | 12V DC |
| Beam angle | 140° |
| Working Temperature(℃) | -20~+60℃ |
| Installation | Plastic bracket |
| Running Length | Single feed: 5m/ 16.4ft Double feed:10m/32.8ft |
| Cutting length | 25mm [0.98in] |
① Tolerance range for optical and electrical data: ±15 %.
② All value @ ta=25℃.
③ Voltage tolerance range of the power supply: ±5 %.
Product 2D drawing
- 12VDC/24VDC product interior drawing
3 LEDs cut-able
6 LEDs cut-able
- Product installation schematic diagram
Product sectional drawing
Product application
Product ⇒ Fix letter groove ⇒ Clip product ⇒ Actual result
Connect two products
Product ⇒ Cut the product based ⇒ Solder the wire ⇒ Actual result
on application requirement “+/+”, “-/-“
Benging direction
The maximum bending angle 360°The minimum bending radius: 15mm (0.59")
Light distribution
Packaging information
|
Product name |
Product dimension (L*W*H) |
Carton dimension (mm/inch) |
Total length/carton |
Gross weight (kg) |
|
RCC0GX06A/B(2835) |
5m*8mm*12mm (16.4ft*0.32"*0.47") | 520*370*260 (20.5"*14.5"*10.2") |
200m (656ft) |
20 |
