Slim Silicone Multi Color LED Neon Lights High Brightness With 3 Years Warranty

Slim Silicone Multi Color LED Neon Lights High Brightness With 3 Years Warranty

Products - LED Neon Lights
  • Highlight

    led rope light

  • Material
    Silicon
  • Standard Length
    5 Meters(16.4ft)/10m(32.8ft)
  • Beam Angle
    150°
  • Input Voltage
    12V/24V
  • Power
    14w/m
  • Color
    White/red/green/blue/yellow /pink/purple
  • Waterproof
    IP68
  • Performance
    Stable Reliability,UV And Yellowish Resistant
  • Lifetime
    50000H
  • Certification
    UL CE ROSH
  • Place of Origin
    Shenzhen,China
  • Brand Name
    TL
  • Certification
    CE,ROSH,UL
  • Model Number
    TL-SW08A/B
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiable
  • Packaging Details
    Carton
  • Delivery Time
    7-15 workdays
  • Payment Terms
    T/T
  • Supply Ability
    5000m/day

Slim Silicone Multi Color LED Neon Lights High Brightness With 3 Years Warranty

  • Slim Silicone Multi Color LED Neon Lights High Brightness With 3 Years Warranty
  • Slim Silicone Multi Color LED Neon Lights High Brightness With 3 Years Warranty
Get Price Contact Now

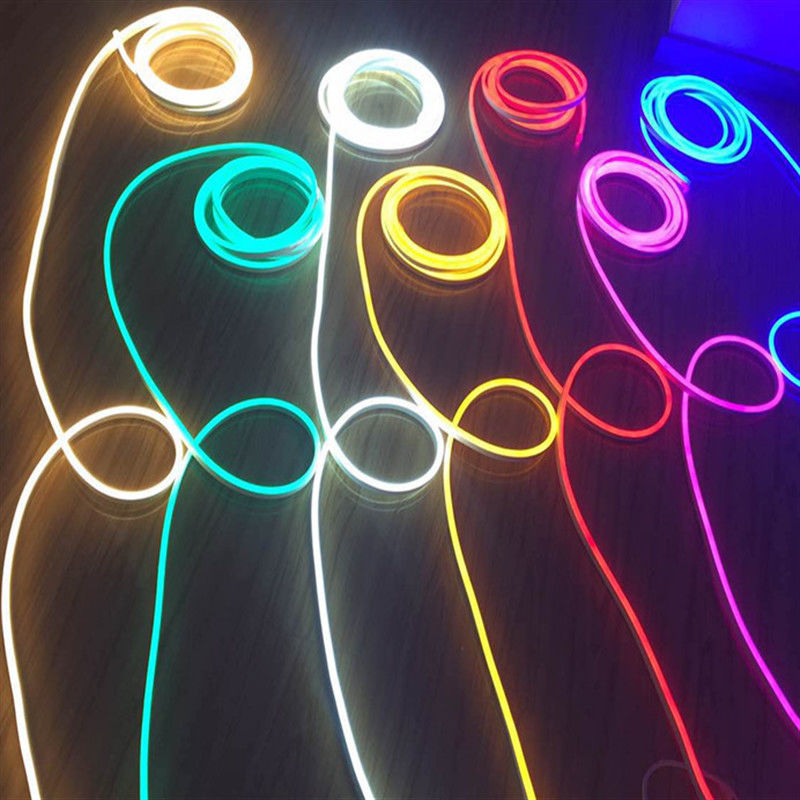

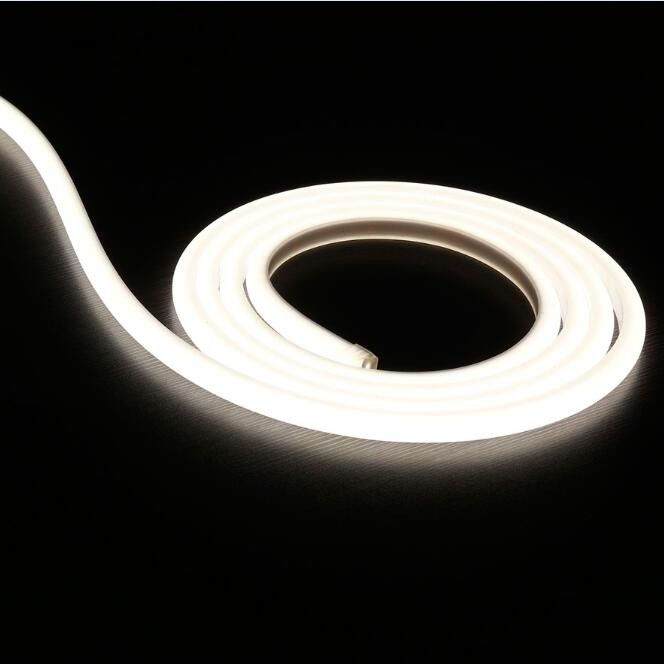

High brightness slim silicone led neon strip DC12V DC24V Led Flex Neon Led with 3 years warranty







LED Neon Strip are perfect for lighting ceiling coves, floor coves, back lighting Perspex or glass, outlining buildings & awnings, feature walls, step lighting, bar lighting, bottle lighting, signs, and of course a great replacement for traditional neon.
Available in red, green, yellow, blue, orange, pink, warm white, cool white and RGB colour changing



RGB LED Neon Light is the latest decorative light with the photoelectric technology. It combined Neon light controller with Tricolor (RGB) LED light source, having the characteristics of the full color gradual changing of LED Digital Tube and dynamic brightness of neon light, as well as the effects of synchronous gradual full color changing, skip changing, water flow changing, pursuing and sweeping and so on. Its appearance will replace LED digital Tube series and LED rope light series completely.



Advantage

  •  Weather Resistant: IP67
  •  Higher brightness: 240 Ultra bright LEDs/meter (R:80 G:80 B:80)
  •  Easy Installation: Simply put it into aluminum channel, make it to various shapes.
  •  Longer Life: Theoretically 40,000 hrs.
  •  Low Voltage Options: 12V and 24VDC available
  •  Low Heat: LED is cold light source, reduce the nitrogen dioxide
  •  Extremely Low Maintenance Costs
  •  70% less energy consumption of glass neon
  •  Does not interfere with Video/Audio systems nearb

Product features

  •  Dot-free linear neon-like illumination;
  •  Fabricated with Eco-friendly, UV-resistant silicone material;
  •  V-2 flame resistance;
  •  Flexible PCB with 2835 SMD LED technology;
  •  25mm cutting mark by each, much flexible on different length request;
  •  Small size L6XW12mm, economical;
  •  IP68.
  •  table reliability and anti-UV.
  •  CE RoH, cULus Listed.​

Application data



Maximum length①

10/15 meters

                                                          (32.8/49.2ft)
Ambient temperature range -25 ~ +50 °C
The temperature of module top 65 °C
Storage temperature range -40 ~ +70 °C
Certification CE/UL/ RoHS





Installation

U-type PC accessory to fix

Technical data

Part No. TL-SW08A/B
LED Qty/m 120pcs
LED SMD 2835
IP Grade IP67
Materials Silicone
Power (W/m) 9.6W/m
Voltage 12V DC
Beam angle 140°
Working Temperature(℃) -20~+60℃
Installation Plastic bracket
Running Length Single feed: 5m/ 16.4ft Double feed:10m/32.8ft
Cutting length 25mm [0.98in]

① Tolerance range for optical and electrical data: ±15 %.

② All value @ ta=25℃.

③ Voltage tolerance range of the power supply: ±5 %.



Product 2D drawing



  • 12VDC/24VDC product interior drawing

                                                                            3 LEDs cut-able





Slim Silicone Multi Color LED Neon Lights High Brightness With 3 Years Warranty 0

                                                                            6 LEDs cut-able



Slim Silicone Multi Color LED Neon Lights High Brightness With 3 Years Warranty 1

  • Product installation schematic diagram



Slim Silicone Multi Color LED Neon Lights High Brightness With 3 Years Warranty 2





Product sectional drawing





Slim Silicone Multi Color LED Neon Lights High Brightness With 3 Years Warranty 3Slim Silicone Multi Color LED Neon Lights High Brightness With 3 Years Warranty 4







Product application

     Product      ⇒    Fix letter groove   ⇒    Clip product       ⇒    Actual result

Slim Silicone Multi Color LED Neon Lights High Brightness With 3 Years Warranty 5





Connect two products

           Product      ⇒  Cut the product based    ⇒ Solder the wire  ⇒    Actual result

                                           on application requirement          “+/+”, “-/-“

Slim Silicone Multi Color LED Neon Lights High Brightness With 3 Years Warranty 6







Benging direction

The maximum bending angle 360°Slim Silicone Multi Color LED Neon Lights High Brightness With 3 Years Warranty 7The minimum bending radius: 15mm (0.59")







Light distribution

Slim Silicone Multi Color LED Neon Lights High Brightness With 3 Years Warranty 8





Packaging information





Product name

Product dimension

(L*W*H)

Carton dimension

(mm/inch)



Total length/carton

Gross

weight (kg)



RCC0GX06A/B(2835)

 5m*8mm*12mm (16.4ft*0.32"*0.47") 520*370*260 (20.5"*14.5"*10.2")



200m (656ft)



20



Slim Silicone Multi Color LED Neon Lights High Brightness With 3 Years Warranty 9
