Highlight
led rope light
,led flex tube lights
-
MaterialSilicon
-
Standard Length5 Meters(16.4ft)/10m(32.8ft)
-
Beam Angle150°
-
Input Voltage12V/24V
-
Power14w/m
-
ColorWhite/red/green/blue/yellow /pink/purple
-
WaterproofIP68
-
PerformanceStable Reliability,UV And Yellowish Resistant
-
Lifetime50000H
-
CertificationUL CE ROSH
-
Place of OriginShenzhen,China
-
Brand NameTL
-
CertificationCE,ROSH,UL
-
Model NumberTL-SW08A/B
-
Document
-
Minimum Order Quantity1pcs
-
PriceNegotiable
-
Packaging DetailsCarton
-
Delivery Time7-15 workdays
-
Payment TermsT/T
-
Supply Ability5000m/day

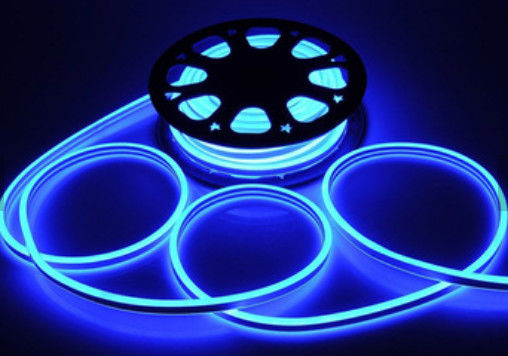

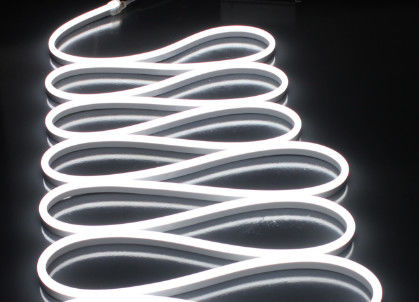

8x10mm Decorative LED Rope Light
Mini 8x10mm 12v 24v Side View 2.5cm Cut Length Led Flex Neon Strip Rope for Sign Logo
Application
- Signage lighting
- Outdoor and indoor decoration
- Contour application
.
Product features
- Dot-free linear neon-like illumination
- Fabricated with Eco-friendly, UV-resistant silicone material; V-2 flame resistance;
- Flexible PCB with 2835 SMD LED technology;
- 5mm cutting mark by each, much flexible on different length request;
- Small size L6XW12mm, economical; CE RoH, cULus Listed
.
Application data
| Maximum length① |
10/15 meters (32.8/49.2ft) |
| Ambient temperature range | -25 ~ +50 °C |
| The temperature of module top | 65 °C |
| Storage temperature range | -40 ~ +70 °C |
| Certification | CE/UL/ RoHS |
Installation
U-type PC accessory to fix
Technical data
| Part No. | TL-SW08A/B |
| LED Qty/m | 120pcs |
| LED | SMD 2835 |
| IP Grade | IP67 |
| Materials | Silicone |
| Power (W/m) | 1446W/m |
| Voltage | 12V DC |
| Beam angle | 140° |
| Working Temperature(℃) | -20~+60℃ |
| Installation | Plastic bracket |
| Running Length | Single feed: 5m/ 16.4ft Double feed:10m/32.8ft |
| Cutting length | 25mm [0.98in] |
① Tolerance range for optical and electrical data: ±15 %.
② All value @ ta=25℃.
③ Voltage tolerance range of the power supply: ±5 %.
Product 2D drawing
- 12VDC/24VDC product interior drawing
3 LEDs cut-able
6 LEDs cut-able
- Product installation schematic diagram
Product sectional drawing
Product application
Product ⇒ Fix letter groove ⇒ Clip product ⇒ Actual result
Connect two products
Product ⇒ Cut the product based ⇒ Solder the wire ⇒ Actual result
on application requirement “+/+”, “-/-“
Benging direction
The maximum bending angle 360°The minimum bending radius: 15mm (0.59")
Light distribution
Packaging information
|
Product name |
Product dimension (L*W*H) |
Carton dimension (mm/inch) |
Total length/carton |
Gross weight (kg) |
|
RCC0GX06A/B(2835) |
5m*8mm*12mm (16.4ft*0.32"*0.47") | 520*370*260 (20.5"*14.5"*10.2") |
200m (656ft) |
20 |
