Highlight
led flex tube lights
-
MaterialSilicon
-
Standard Length5 Meters(16.4ft)/10m(32.8ft)
-
Beam Angle150°
-
Input Voltage12V/24V
-
Power14w/m
-
ColorWhite/red/green/blue/yellow /pink/purple
-
WaterproofIP68
-
PerformanceStable Reliability,UV And Yellowish Resistant
-
Lifetime50000H
-
CertificationUL CE ROSH
-
Place of OriginShenzhen,China
-
Brand NameTL
-
CertificationCE,ROSH,UL
-
Model NumberTL-SW08A/B
-
Document
-
Minimum Order Quantity1pcs
-
PriceNegotiable
-
Packaging DetailsCarton
-
Delivery Time7-15 workdays
-
Payment TermsT/T
-
Supply Ability5000m/day

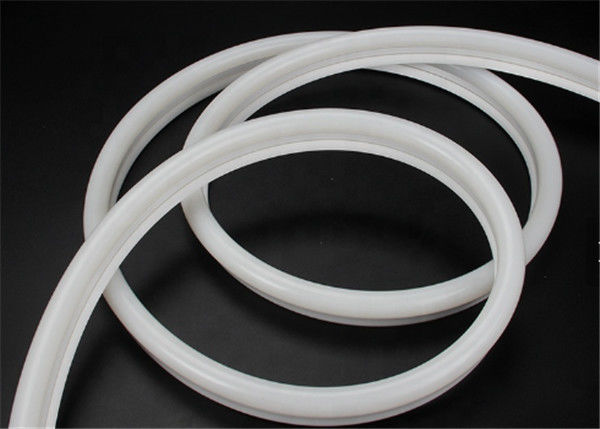

Cutable LED Neon Rope Light IP68 14w/M Energy Saving And Eco Friendly
Mini Size 8x10mm Silicone Led Neon Rope 2.5mm Cut-able with CE UL
Application
-
Can be Widely used in building outline decoration lighting, KTV decoration lighting, Car decoration lighting, urban lighting and others decoration lighting.
Product features
- Product standard length: 5 meters(16.4ft).
- Product can be fixed in the rugged place (smooth surface and bendable).
- Beam angle: 150°.
- Input voltage: 12VDC/24VDC.
- Excellent lumen maintenance (3oz FPC).
- 12VDC product: maximum length 10 meters (32.8ft).
- 24VDC product: maximum length 15 meters (49.2ft).
- Flexible cutting (the cut mouth sealed by silicone glue).
- IP68.
- table reliability and anti-UV.
Application data
| Maximum length① |
10/15 meters (32.8/49.2ft) |
| Ambient temperature range | -25 ~ +50 °C |
| The temperature of module top | 65 °C |
| Storage temperature range | -40 ~ +70 °C |
| Certification | CE/UL/ RoHS |
Installation
U-type PC accessory to fix
Technical data
| Product Name | Nominal voltage③ | Color temperature or Wavelength①② | CRI①② |
Typ. Flux/meter(3.28ft) ①② |
Typ. Power/meter(3.28ft)①② |
| TL-SW08A/B(2835) | 12/24 VDC | 2700-5500 K | >75 | 850~1100 lm | 12 W |
| TL-SR08A/B(2835) | 12/24 VDC | 620-625 nm | Red | 300~350 lm | 12 W |
| TL-SG08A/B(2835) | 12/24 VDC | 520-528 nm | Green | 210~230 lm | 12 W |
| TL-SB08A/B(2835) | 12/24 VDC | 465-470 nm | Blue | 1100~1010 lm | 12 W |
| TL-SY08A/B(2835) | 12/24 VDC | 590-596 nm | Yellow | 300~310 lm |
12 W |
① Tolerance range for optical and electrical data: ±15 %.
② All value @ ta=25℃.
③ Voltage tolerance range of the power supply: ±5 %.
Product 2D drawing
- 12VDC/24VDC product interior drawing
3 LEDs cut-able
6 LEDs cut-able
- Product installation schematic diagram
Product sectional drawing
Product application
Product ⇒ Fix letter groove ⇒ Clip product ⇒ Actual result
Connect two products
Product ⇒ Cut the product based ⇒ Solder the wire ⇒ Actual result
on application requirement “+/+”, “-/-“
Benging direction
The maximum bending angle 360°The minimum bending radius: 15mm (0.59")
Light distribution
Packaging information
|
Product name |
Product dimension (L*W*H) |
Carton dimension (mm/inch) |
Total length/carton |
Gross weight (kg) |
|
RCC0GX06A/B(2835) |
5m*8mm*12mm (16.4ft*0.32"*0.47") | 520*370*260 (20.5"*14.5"*10.2") |
200m (656ft) |
20 |
