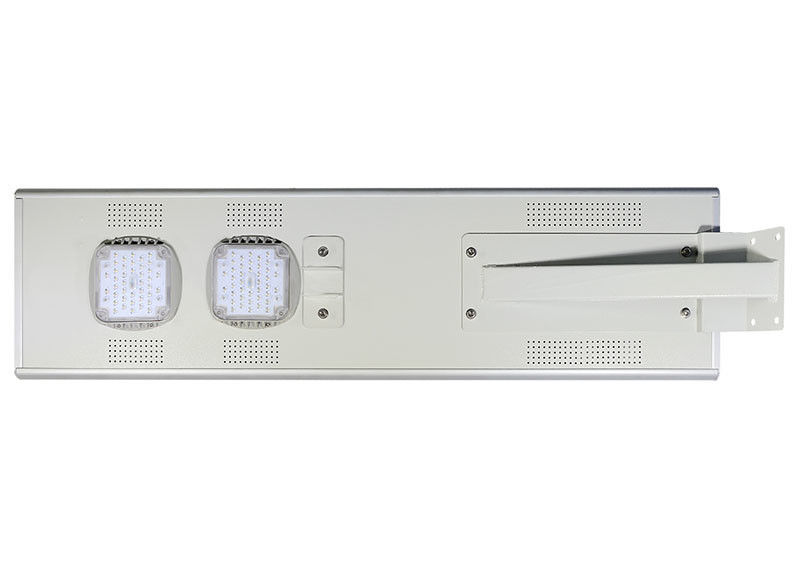

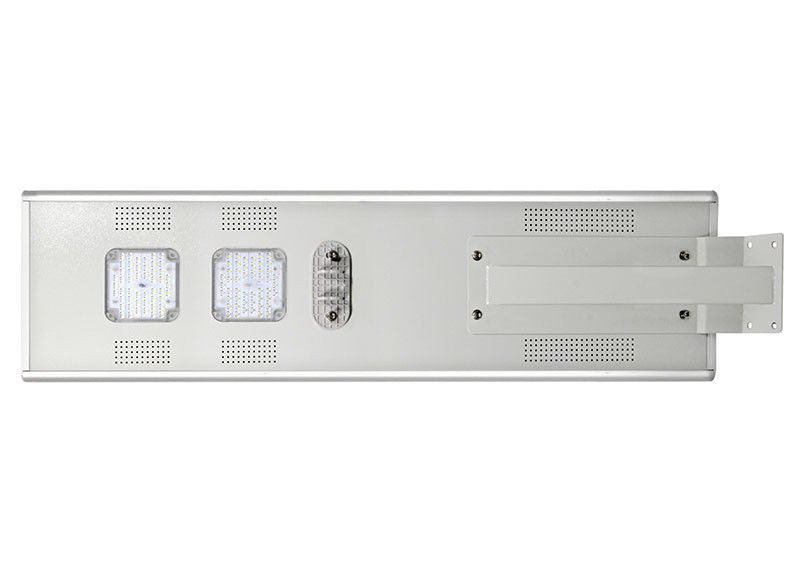

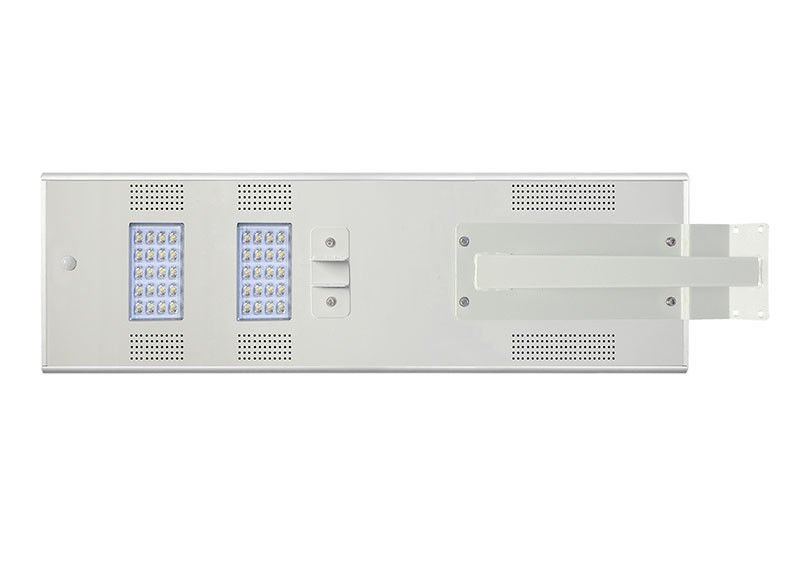

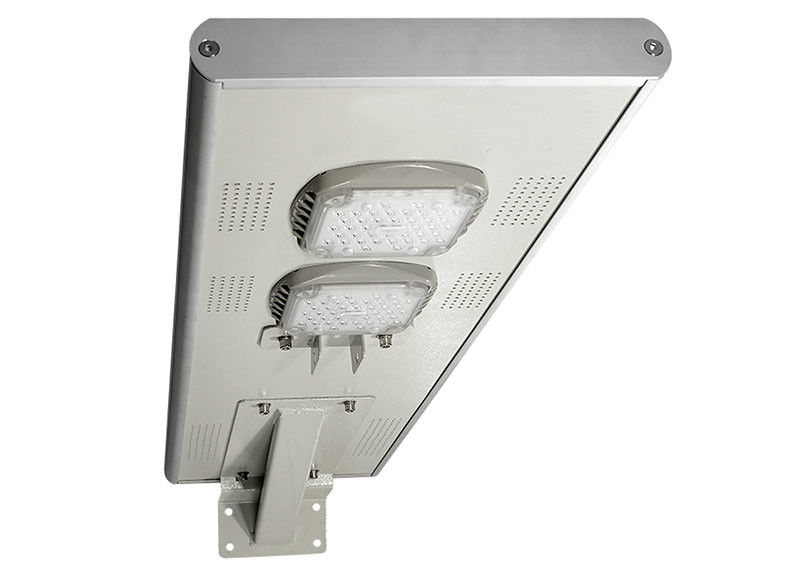

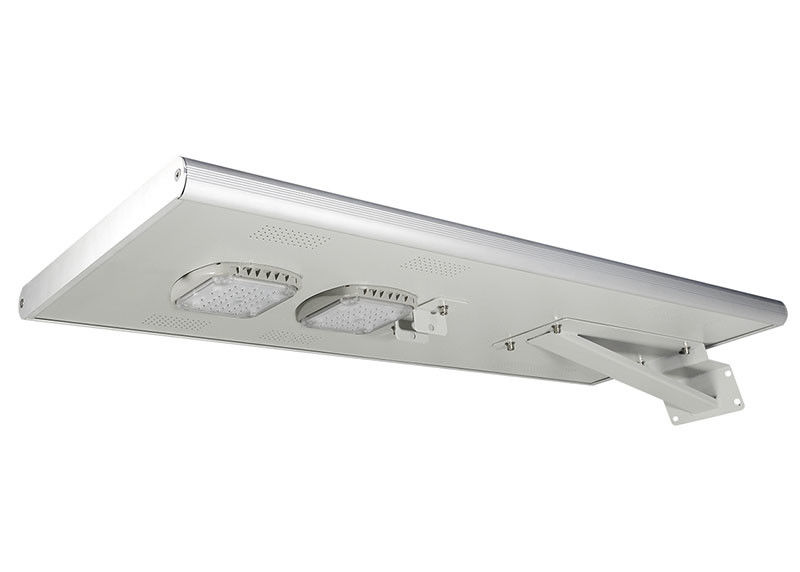

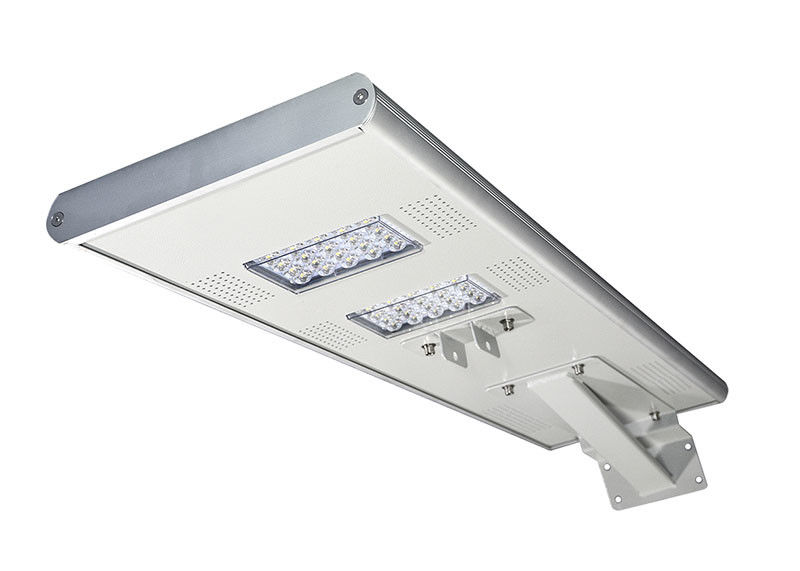

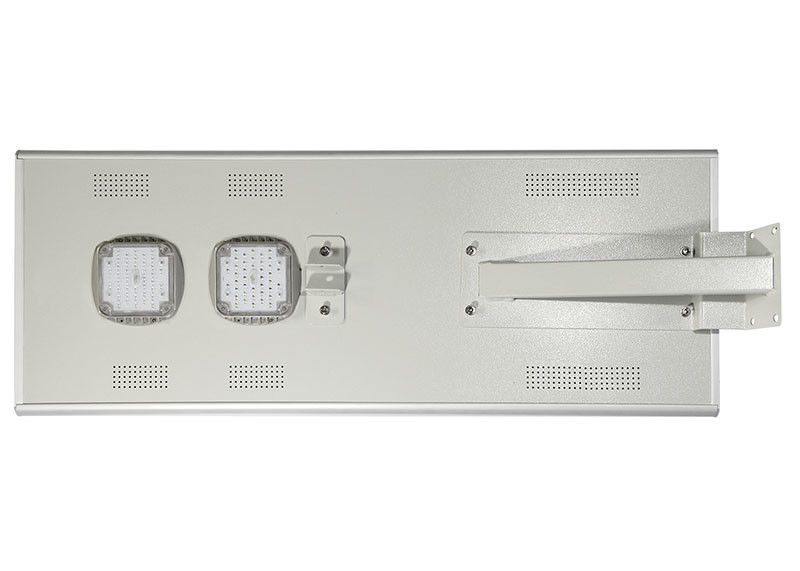

Aluminium All In One Solar Street Light 40W/ 50W Lightweight Integrated Design
-
Highlight
solar powered road lights
,solar powered led lights
-
PVMonocrystalline Silicon
-
BatteryLiFePO4
-
ControllerMPPT
-
LED30W / 40W/ 50W
-
MaterialsAluminium
-
MW SensorOptional
-
Place of OriginShenzhen China
-
Brand NameChanpower
-
CertificationCE FCC ROHS
-
Model NumberTSSA030-H / TSSA040-H / TSSA050-H
-
Document
-
Minimum Order Quantity500
-
Pricenegotiable
-
Packaging DetailsCarton
-
Delivery Time20~25 work days
-
Payment TermsL/C, T/T
Aluminium All In One Solar Street Light 40W/ 50W Lightweight Integrated Design
All In One Solar Street Light Built-in LiFePO4 Battery Solar Controller 30W 40W 50W
Feature
- Integrated design, lightweight,stylish, easy to install
- Monocrystalline solar cell with high photoelectric conversion efficiency
- Built-in LiFePO4 battery, high energy density, safety and long life
- US LED chip, light power from 10W to 100W optional
- Built-in chanpower exclusive solar controller, stable and reliable
- IR & MW sensor optional, green energy saving
- Aluminum structure, rust-proof, anti-corrosive and good heat dissipation
- CKD is available, modular design and easy to assemble
Parameters
| Item | TSSA030-H | TSSA040-H | TSSA050-H | |
| POWER | 30W | 40W | 50W | |
| LED | Flux | 150-160 lm/w | 150-160 lm/w | 150-160 lm/w |
| Brand | CREE | CREE | CREE | |
| Life | 50000hrs | 50000hrs | 50000hrs | |
| Solar Panels | Largest Wattage | 18V/40W 820*272mm monocrystalline silicon |
18V/50W 960*272mm monocrystalline silicon |
18V/60W 960*398mm monocrystalline silicon |
| Life | 25years | 25years | 25years | |
| Battery | Type | Lithium iron phosphate battery 208WH |
Lithium iron phosphate battery 320WH |
Lithium iron phosphate battery 320WH |
| Life | 5-8years | 5-8years | 5-8years | |
| Control | Charge / time | valid for 6 hours of sunshine | valid for 6 hours of sunshine | valid for 6 hours of sunshine |
| Discharge / time | Half Power 40hrs,Full Power 20hrs | Half Power 40hrs,Full Power 20hrs | Half Power 40hrs,Full Power 20hrs | |
| Lighting Time | 12hrs every day 4-7 rainning days | 12hrs every day 4-7 rainning days | 12hrs every day 4-7 rainning day | |
| Function | Multi function (dim lighting power) 0%-100% optional, light and human body induction, (overheating or low temperature) charge discharge protection. | |||
| Normal Setting | 5 Time Setting,[eg. X% Power Light when people come,when people go, change to Y% power] | |||
| Installation | Height and Distance | Height 4-6M / Distance10-18M | Height 4-7M/ Distance12-20M | Height 5-8M/ Distance20-25M |
| Installation Hole | Diameter:40-75MM | Diameter:40-75MM | Diameter:40-75MM | |
| Materials | Aluminium | Aluminium | Aluminium | |
| Certificates | CE,ROHS, IP65 | CE,ROHS, IP65 | CE,ROHS, IP65 | |
| Warranty | 5 years | 5 years | 5 years | |
| Package | Size | 889*286*165mm | 965*286*165mm | 965*412*165mm |
| Net weight | 9.6kg | 13.8kg | 14.6kg | |
| Package Size | 960*350*210mm | 1080*350*200mm | 1080*475*220mm | |
| Gross Weight | 11.2kg | 16kg | 17.2kg | |
| Package Way | 1pc/Carton | 1pc/Carton | 1pc/Carton | |
Production
LiFePO4 Battery
Packing
