Integrated All In One Solar Street Light Aluminium Materials Easy Installation
-
Highlight
solar powered road lights
,solar powered led lights
-
PVMonocrystalline Silicon
-
BatteryLiFePO4
-
ControllerMPPT
-
LED60W / 80W/ 100W
-
MaterialsAluminium
-
MW SensorOptional
-
Place of OriginShenzhen China
-
Brand NameChanpower
-
CertificationCE FCC ROHS
-
Model NumberTSSA060-H / TSSA080-H / TSSA100-H
-
Document
-
Minimum Order Quantity500
-
Pricenegotiable
-
Packaging DetailsCarton
-
Delivery Time20~25 work days
-
Payment TermsL/C, T/T

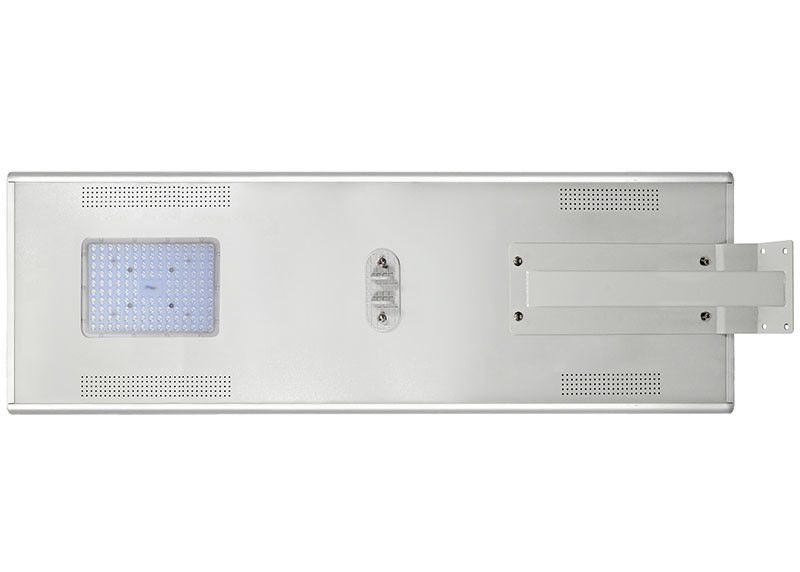

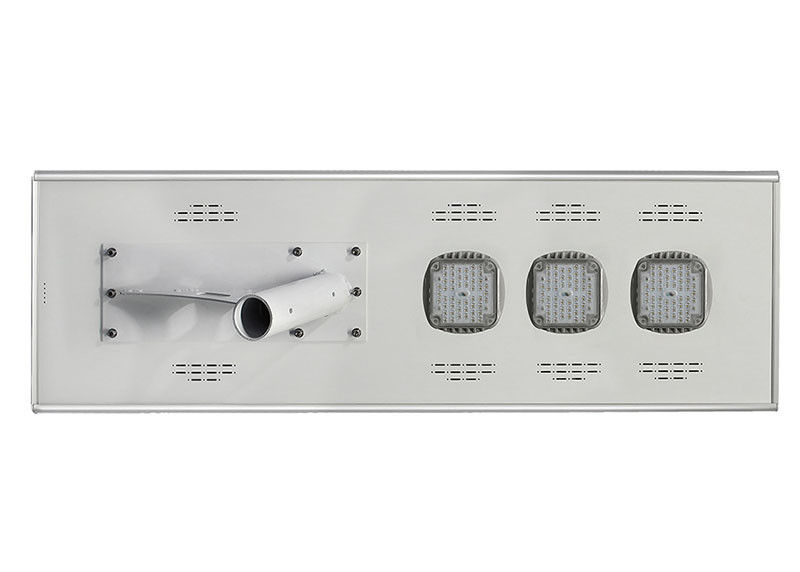

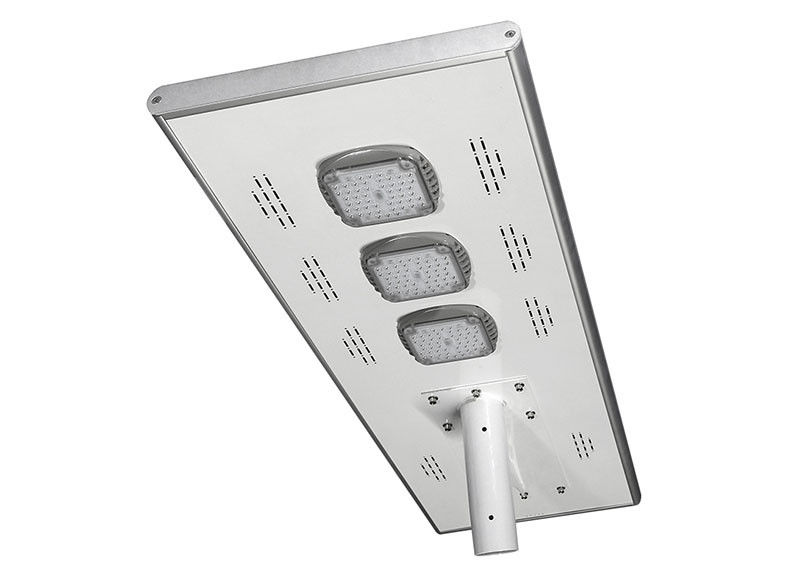

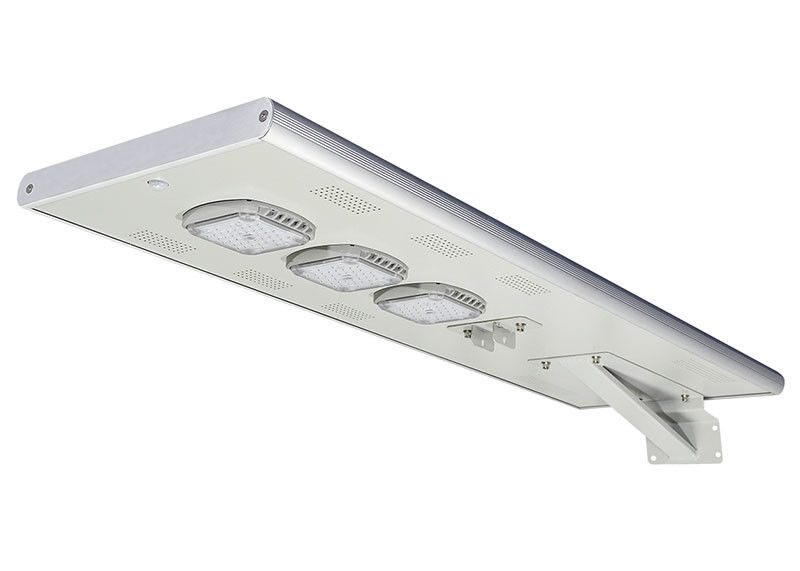

Integrated All In One Solar Street Light Aluminium Materials Easy Installation
Integrated Solar Street Lights Built-in LiFePO4 Battery Solar Controller 60W 80W 100W
Feature
- Integrated design, lightweight,stylish, easy to install
- Monocrystalline solar cell with high photoelectric conversion efficiency
- Built-in LiFePO4 battery, high energy density, safety and long life
- US LED chip, light power from 10W to 100W optional
- Built-in chanpower exclusive solar controller, stable and reliable
- IR & MW sensor optional, green energy saving
- Aluminum structure, rust-proof, anti-corrosive and good heat dissipation
- CKD is available, modular design and easy to assemble
Parameters
| Item | TSSA060-H | TSSA080-H | TSSA100-H | |
| POWER | 60W | 80W | 100W | |
| LED | Flux | 150-160 lm/w | 150-160 lm/w | 150-160 lm/w |
| Brand | CREE | CREE | CREE | |
| Life | 50000hrs | 50000hrs | 50000hrs | |
| Solar Panels | Largest Wattage | 18V/70W 1070*398mm monocrystalline silicon |
18V/100W 1280*398mm monocrystalline silicon |
18V/120W 1280*398mm monocrystalline silicon |
| Life | 25years | 25years | 25years | |
| Battery | Type | Lithium iron phosphate battery 384WH |
Lithium iron phosphate battery 540WH |
Lithium iron phosphate battery 640WH |
| Life | 5-8years | 5-8years | 5-8years | |
| Control | Charge / time | valid for 6 hours of sunshine | valid for 6 hours of sunshine |
valid for 6 hours of sunshine |
| Discharge / time | Half Power 40hrs,Full Power 20hrs | Half Power 40hrs,Full Power 20hrs | Half Power 40hrs,Full Power 20hrs | |
| Lighting Time | 12hrs every day 4-7 rainning day | 12hrs every day 4-7 rainning day | 12hrs every day 4-7 rainning day | |
| Function | Multi function (dim lighting power) 0%-100% optional, light and human body induction, (overheating or low temperature) charge discharge protection. | |||
| Normal Setting | 5 Time Setting,[eg. X% Power Light when people come,when people go, change to Y% power] | |||
| Installation | Height and Distance | Height 5-8M / Distance20-28M | Height 6-9M/ Distance25-32M | Height 7-10M / Distance25-34M |
| Installation Hole | Diameter:40-75MM | Diameter : 40-75MM | Diameter:40-75MM | |
| Materials | Aluminium | Aluminium | Aluminium | |
| Certificates | CE,ROHS, IP65 | CE,ROHS, IP65 | CE,ROHS,IP65 | |
| Warranty | 5 years | 5 years | 5 years | |
| Package | Size | 1080*412*165mm | 1354*412*186mm | 1354*412*186mm |
| Net weight | 17kg | 20.1kg | 23.5kg | |
| Package Size | 1130*475*200mm | 1390*475*220mm | 1390*475*220mm | |
| Gross Weight | 20kg | 23.7kg | 27.5kg | |
| Package Way | 1pc/Carton | 1pc/Carton | 1pc/Carton | |
