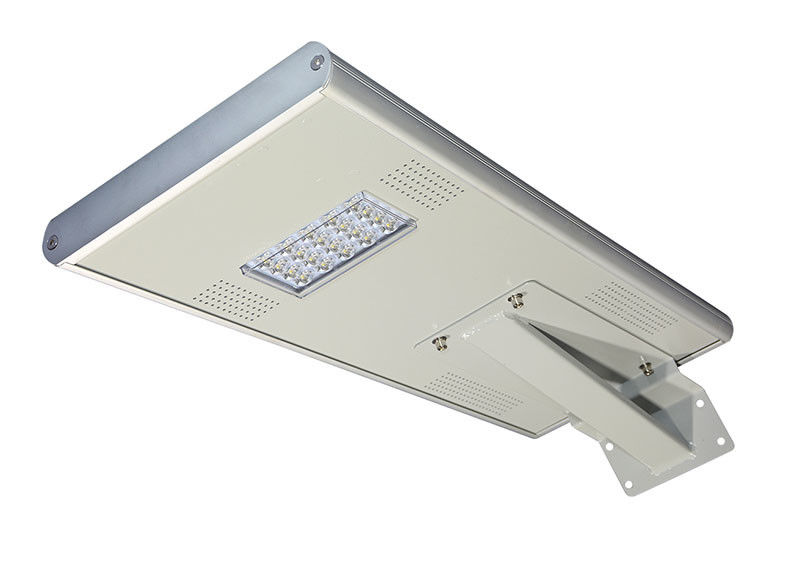

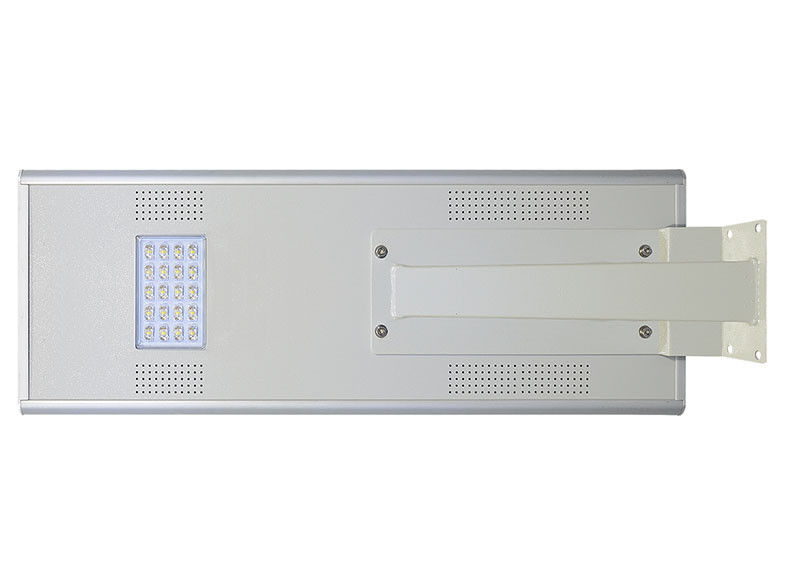

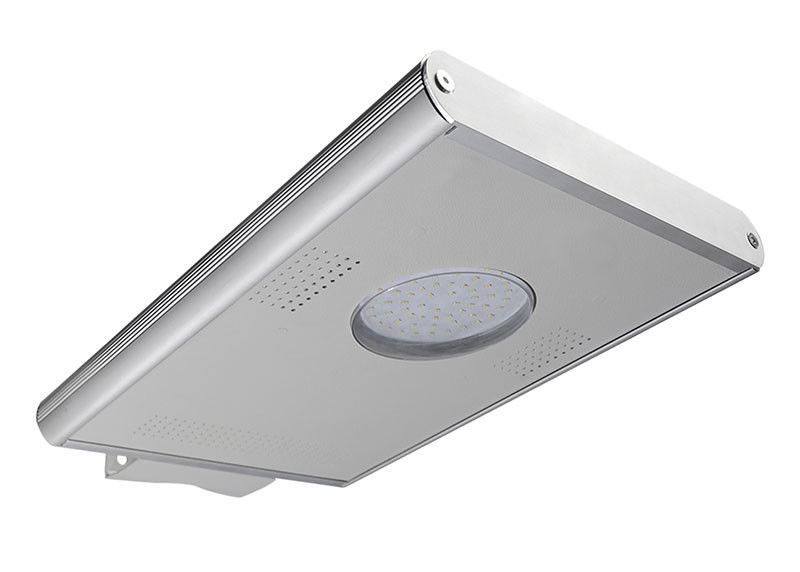

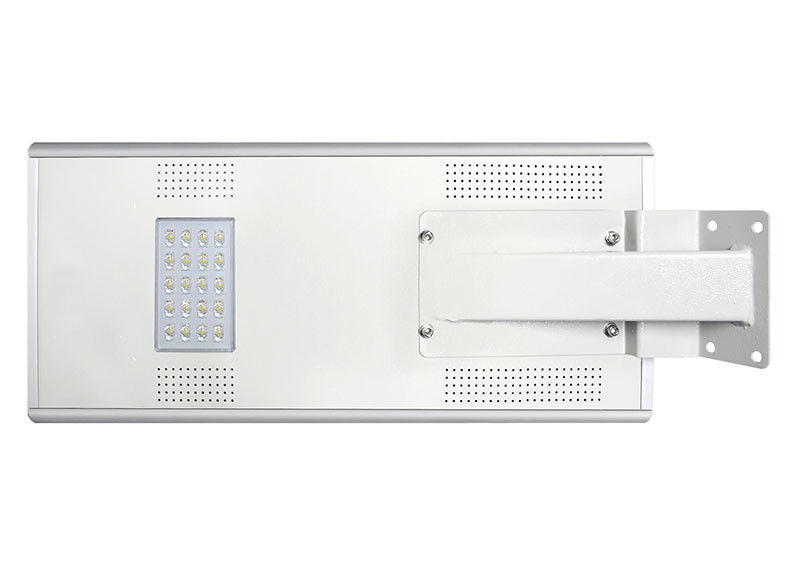

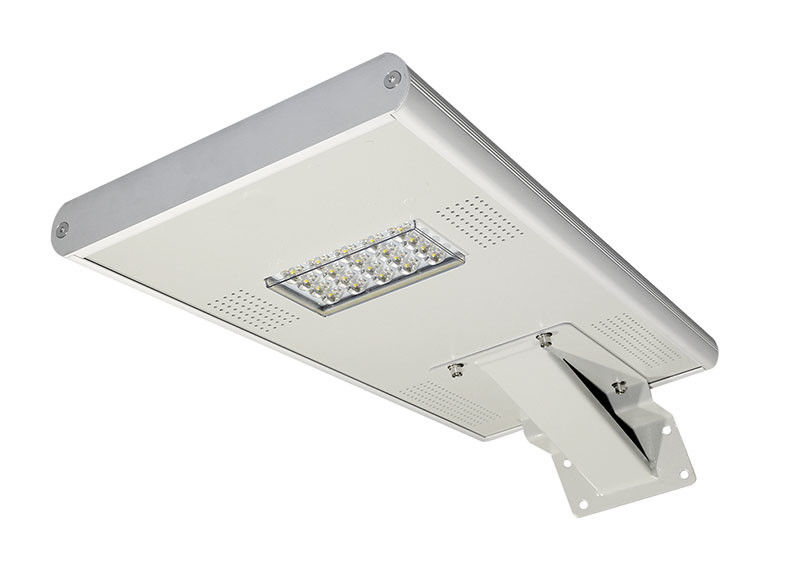

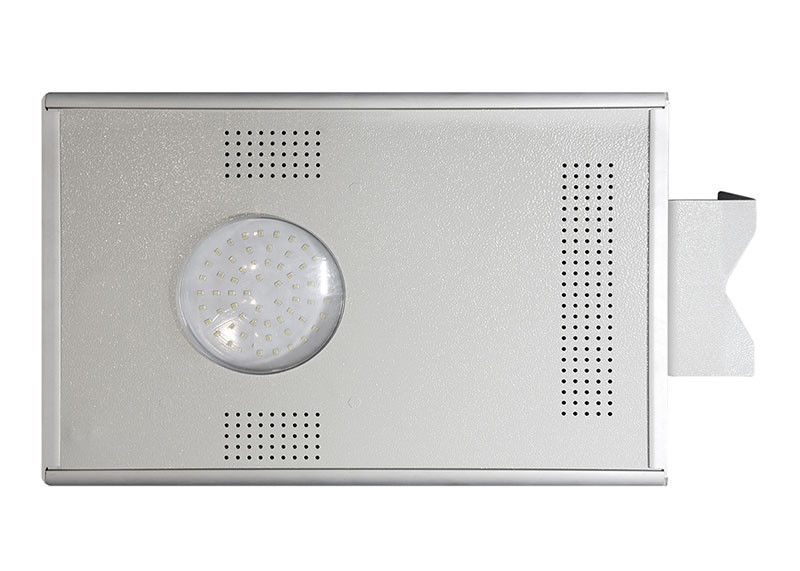

10W / 15W All In One Solar Street Light With Built In LiFePO4 Battery Solar Controller
-
Highlight
commercial solar pole lights
,solar powered road lights
-
PVMonocrystalline Silicon
-
BatteryLiFePO4
-
ControllerMPPT
-
LED10W / 15W/ 20W
-
MaterialsAluminium
-
MW SensorOptional
-
Place of OriginShenzhen China
-
Brand NameChanpower
-
CertificationCE FCC ROHS
-
Model NumberTSSA010-H / TSSA015-H / TSSA020-H
-
Document
-
Minimum Order Quantity500
-
Pricenegotiable
-
Packaging DetailsCarton
-
Delivery Time20~25 work days
-
Payment TermsL/C, T/T
10W / 15W All In One Solar Street Light With Built In LiFePO4 Battery Solar Controller
All In One Solar Street Light Built-in LiFePO4 Battery Solar Controller 10W 15W 20W
Feature
- Integrated design, lightweight,stylish, easy to install
- Monocrystalline solar cell with high photoelectric conversion efficiency
- Built-in LiFePO4 battery, high energy density, safety and long life
- US LED chip, light power from 10W to 100W optional
- Built-in chanpower exclusive solar controller, stable and reliable
- IR & MW sensor optional, green energy saving
- Aluminum structure, rust-proof, anti-corrosive and good heat dissipation
- CKD is available, modular design and easy to assemble
Parameters
| Item | TSSA015-H | TSSA015-H | TSSA020-H | |
| POWER | 10W | 15W | 20W | |
| LED | Flux | 150-160 lm/w | 150-160 lm/w | 150-160 lm/w |
| Brand | CREE | CREE | CREE | |
| Life | 50000hrs | 50000hrs | 50000hrs | |
| Solar Panels | Largest Wattage | 18V/20W 430*272mm monocrystalline silicon |
18V/20W 430*272mm monocrystalline silicon |
18V/30W 680*272mm monocrystalline silicon |
| Life | 25years | 25years | 25years | |
| Battery | Type | Lithium iron phosphate battery 112WH |
Lithium iron phosphate battery 128WH |
Lithium iron phosphate battery 128WH |
| Life | 5-8years | 5-8years | 5-8years | |
| Controller | Charge / time | valid for 6 hours of sunshine |
valid for 6 hours of sunshine |
valid for 6 hours of sunshine |
| Discharge / time | Half Power 40hrs,Full Power 20hrs | Half Power 40hrs,Full Power 20hrs | Half Power 40hrs,Full Power 20hrs | |
| Lighting Time | 12hrs every day 4-7 rainning days | 12hrs every day 4-7 rainning days | 12hrs every day 4-7 rainning days | |
| Function | Multi function (dim lighting power) 0%-100% optional, light and human body induction, (overheating or low temperature) charge discharge protection. | |||
| Normal Setting | 5 Time Setting,[eg. X% Power Light when people come,when people go, change to Y% power] | |||
| Installation | Height and Distance | Height 3-4M/ Distance 6-10M | Height 3-4M/ Distance 8-12M | Height 3-5M / Distance 9-15M |
| Installation Hole | Diameter:40-75MM | Diameter:40-75MM | Diameter:40-75MM | |
| Materials | Aluminium | Aluminium | Aluminium | |
| Certificates | CE,ROHS, IP65 | CE,ROHS, IP65 | CE,ROHS, IP65 | |
| Warranty | 5 years | 5 years | 5 years | |
| Package | Size | 452*286*138mm | 452*286*138mm | 749*286*165mm |
| Net weight | 5.5kg | 6kg | 8kg | |
| Package Size | 540*350*170mm | 540*350*170mm | 790*350*200mm | |
| Gross Weight | 6.5kg | 7.1kg | 9.5kg | |
| Package Way | 1pc/Carton | 1pc/Carton | 1pc/Carton | |
