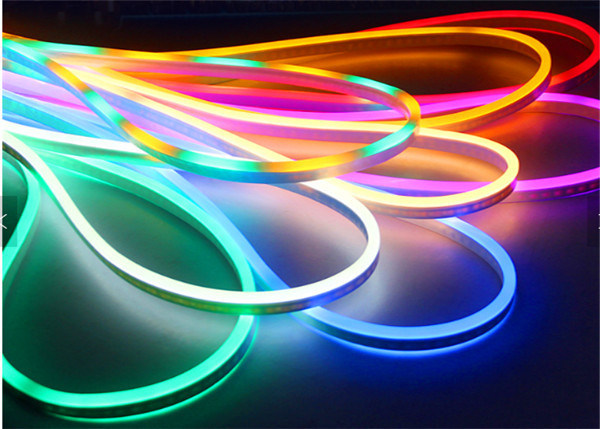

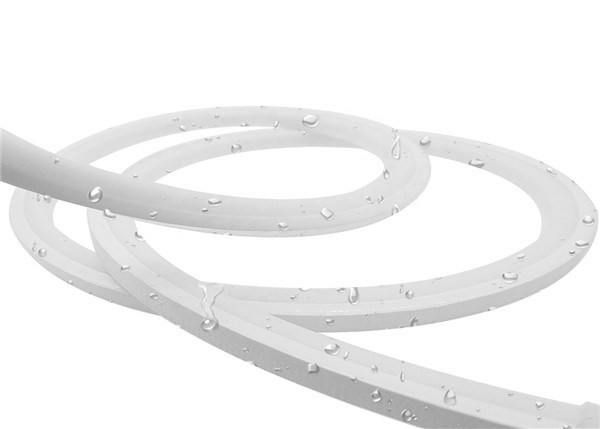

Red Green Blue LED Neon Rope Light

Merah Hijau Biru LED Neon Rope Light

  • Menyoroti

    lampu tabung fleksibel LED

    ,

    lampu tanda neon led

  • Bagian No
    TL-SW10CA/B
  • Jml LED/m
    108pcs
  • DIPIMPIN
    SMD5050
  • Bahan
    silikon
  • Kelas Ip
    IP67
  • Warna
    RGB
  • Voltase
    DC12V/24V
  • Pertunjukan
    Keandalan yang stabil, tahan UV dan kekuningan
  • Potong panjang
    28mm/56mm
  • certification
    UL CE ROSH
  • Tempat asal
    Shenzhen, Tiongkok
  • Nama merek
    TL
  • Sertifikasi
    CE,ROSH,UL
  • Nomor model
    TL-SW10CA/B
  • Dokumen
  • Kuantitas min Order
    1 buah
  • Harga
    Bisa dinegosiasikan
  • Kemasan rincian
    karton
  • Waktu pengiriman
    7-15 hari kerja
  • Syarat-syarat pembayaran
    T/T
  • Menyediakan kemampuan
    5000m/hari

Merah Hijau Biru LED Neon Rope Light

Ukuran Mini 28mm Dapat Dipotong Lebar 10mm 12V LED RGB Neon Rope Strip dengan CE UL


Aplikasi

  •  Pencahayaan Signage,
     Dekorasi luar dan dalam ruangan,
     Aplikasi kontur.

Fitur produk

  •  Pencahayaan linier seperti neon tanpa titik;
  •  Dibuat dengan bahan silikon ramah lingkungan, tahan UV;
  •  Ketahanan api V-2;
  •  PCB fleksibel dengan teknologi LED SMD 2835;
  •  Tanda potong 28mm setiap, sangat fleksibel pada permintaan panjang yang berbeda;
  •  Ukuran kecil L10XW17mm, ekonomis;
  •  IP68.
  •  keandalan tabel dan anti-UV.
  •  CE RoH, cULus Terdaftar.

Data teknis

    Bagian No warna cahaya  panjang gelombang cahaya (nm) sudut cahaya (°) lumen (lm/m) efisiensi cahaya (lm/W) tegangan (DC/V) daya (W/M)

TL-SW10CA/B

R 617 120 55.25 12.79 12/24

17.28

G 515 120 136.79 21.11 12/24
B 462 120 26.19 4.042 12/24


    ① Rentang toleransi untuk data optik dan listrik: ±15 %.

② Semua nilai @ ta=25℃.

③ Rentang toleransi tegangan catu daya: ±5 %.

Data aplikasi



Panjang maksimum①

10/15 meter

                                                          (32.8/49.2 kaki)

Suhu sekitar rentang -25 ~ +50 °C
Suhu bagian atas modul 65 °C
Suhu penyimpanan rentang -40 ~ +70 °C
Sertifikasi CE/UL/ RoHS



Instalasi
Aksesori PC tipe-U untuk memperbaiki

Gambar 2D produk



  • Gambar interior produk 12VDC/24VDC


Merah Hijau Biru LED Neon Rope Light 0



  • Diagram skematik pemasangan produk



Merah Hijau Biru LED Neon Rope Light 1





Gambar potongan produk




Merah Hijau Biru LED Neon Rope Light 2







Aplikasi produk

     Produk      ⇒    Perbaiki alur huruf   ⇒    Klip produk       ⇒    Hasil sebenarnya

Merah Hijau Biru LED Neon Rope Light 3


Hubungkan dua produk

           Produk      ⇒  Potong produk berdasarkan    ⇒ Solder kabel  ⇒    Hasil sebenarnya

                                           pada persyaratan aplikasi         “+/+”, “-/-“

Merah Hijau Biru LED Neon Rope Light 4





Arah pembengkokan

Sudut tekukan maksimum 360°Merah Hijau Biru LED Neon Rope Light 5Jari-jari tekukan minimum: 15mm (0.59")





Distribusi cahaya

Merah Hijau Biru LED Neon Rope Light 6




Informasi pengemasan





Nama produk

Dimensi produk

(P*L*T)

Dimensi karton

(mm/inci)



Total panjang/karton

Kotor
berat (kg)



RCC0GX06A/B(2835)

5m*8mm*12mm (16.4ft*0.32"*0.47") 520*370*260 (20.5"*14.5"*10.2")



200m (656ft)



20
