Highlight
waterproof led downlights
-
Lamp Power30w 40w 50w 60w 80w 100w 120w 150w 180w 200w
-
Input VoltageAC100-305V DC12V 24V 36V
-
DimmableSCR Dimming / 0-10V Dimming / DALI Dimming
-
Size5'' 6" 8" 10" 12''
-
Beam Angle(°)30° 45° 120° 60° 90° 120°
-
Lamp Lumen100-120LM/W
-
ChipsCREE Chips
-
ItemsLED Recessed Downlight Dimmable
-
InstallationHole Embedded(Ceiling Hole)
-
ApplicationsHall, Large Conference Room
-
Emergency LightsCan Add Batteries(need Customize)
-
Warranty3 Years
-
Place of OriginChina
-
Brand NameMINSENS
-
CertificationCE ROHS DLC ETL SAA
-
Model NumberMS-DWH-30W-200W
-
Document
-
Minimum Order Quantity10pcs
-
PriceNegotiable
-
Packaging DetailsStandard export packaging or customize
-
Delivery Time5-10 work days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability1000000pcs per month

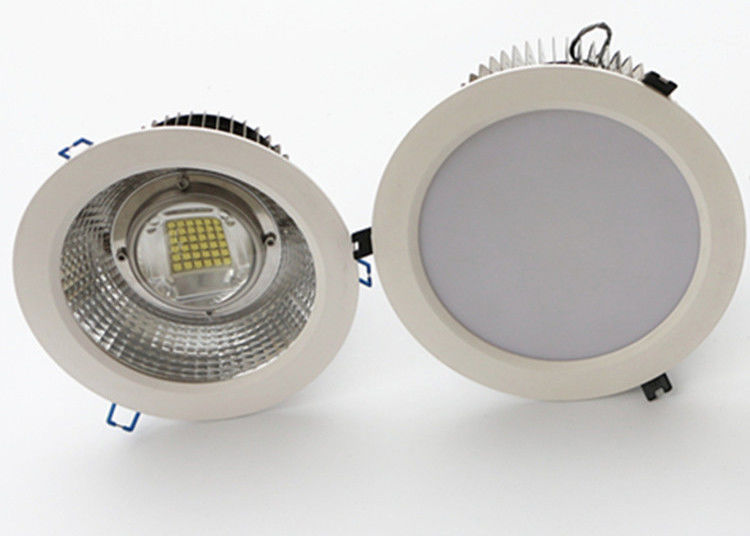

240V Adjustable Bathroom LED Downlights
240V Led Recessed Downlight DALI Dimmable 30W - 200W CREE Chips MEANWELL Driver 5" 6"
8" 10" 12''
Features
1. Dimmable: SCR dimming / 0-10V dimming / DALI dimming.
2. Can add batteries, make it Emergency led downlights(need customize).
3. Easy to install. Ceiling reccessed mounted. Driver inlcuded, supporting AC110V, AC220V, AC277V.
4. High lumen output, high luminous efficacy LED Chips as light source.
5. Good light distribution makes light more soft and uniform.
6. Correlated Color Temperature(CCT)(K):Warm White(3000k-3500k)/White(6000k-6500k).
7. Input Voltage: AC85v-305v.
8. Long lifespan, low maintenance cost.
Specification
| Watt | 30W | 40W | 50W | 60W | 80W | 100W | 120W | 150W | 180W | 200W |
| Lamp lumen |
3000- 3200LM |
3500- 4400lm |
6000- 6600LM |
6000- 6600LM |
8000- 8800LM |
10000- 11000LM |
12500- 13200LM |
15700- 16000LM |
18000- 192000lm |
20000lm |
| LED chips | /cree | |||||||||
| LEDS | 30pcs | 40pcs | 50pcs | 18pcs | 24pcs | 30pcs | 36pcs | 48pcs | 60pcs | 70pcs |
| Size | 5inch:170*100mm 6inch:200*120mm 8inch:225*120mm | |||||||||
| 10inch:270*130mm 12inch:300*130mm | ||||||||||
| Cut out size | 5inch:140-150mm 6inch:170-180mm 8inch:200-215mm | |||||||||
| 10inch:240-250mm 12inch:260-275mm | ||||||||||
| Input Voltage | AC100V-305V 50/60HZ | |||||||||
| Beam Angle | PC Mily Lens | |||||||||
| Color Temperature | Warm White:3000K Pure White:4000-4500K Cold White:5700-6300K | |||||||||
| Material | Aluminum Alloy | |||||||||
| Rated LED Life | 50,000 hrs | |||||||||
| Net Weight | 0.48kg | 1.5kg | 2kg | |||||||
| Package | 6pcs/carton | 6pcs/carton | ||||||||
| G.w.:15kgs MEAS:57*46*36CM | G.w.:15kgs MEAS:57*46*36CM | |||||||||
Details
Open hole
6 inches: 140mm
6 inches: 170mm
8 inch: 200mm
10 inches: 240mm
12 inches: 260mm
LED light source
1 CREE
2
Beam angle
1. Cream cover 120 degrees
2 glass lens 60 90 120 degrees
Drive selection
1. Made in china CE isolated drive
2 MEANWELL driver
30w 40w 50w 60w 80w 100w 120w 150w 180w 200w is available
5'' 6" 8" 10" 12'' can choose
Support dimmable SCR / 0-10V / DALI Three ways dimmable(need customize)
Cream white cover and transparent cover to choose
Applications
Corridor, office, shopping mall, display window and inner lighting
Reception room, lobby, hotel room lighting
Museum, exhibition hall, art gallery exhibit lighting
Bus / railway / subway stations and other indoor lighting.
Packaging
Standard export packaging or customized according to customer requirements.
Our products are sold all over the world, you can rest assured.
