Highlight
led down lamp
-
Lamp PowerCan Choose 30W-200W
-
Input VoltageAC100-305V DC12V 24V 36V
-
Lumens90-120lm/W
-
Surface Ring5'' 6" 8" 10" 12''
-
Beam Angle30° 45° 120° 60° 90° 120°
-
Lamp Body MaterialFins Aluminum + Lens
-
LED ChipsCREE Or SMD
-
Items30W-200W LED Recessed Downlights
-
Installation4-40m Height Ceiling
-
ApplicationsHigh Ceiling Lighting
-
DimmableTriac / 0-10V / DALI
-
Warranty3 Years
-
Place of OriginChina
-
Brand NameMINSENS
-
CertificationCE ROHS DLC ETL SAA
-
Model NumberMS-DWH-30W-200W
-
Document
-
Minimum Order Quantity10pcs
-
PriceNegotiable
-
Packaging DetailsStandard export packaging or customize
-
Delivery Time5-10 work days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability1000000pcs per month
Dimmable LED Recessed Downlights
High Lumens 30W-200W LED Recessed Downlights Support Dimmable With CE ROHS FCC PSE
Approval
Description
This high power led downlight is design for high ceiling lighting for new install commercial lighting or replacement for downlight applications with compact fluorescent/metal halide lamps .Compatible with standard ceiling cutouts 170 mm or 200 mm or 250mm or 270mm. Wide lighting color range 2700-7000K, RGB lighting colors can be customized ,dual functions of lighting and decorating.
Features
1. High brightness led 120lm/W
2. Power-saving, best aluminum alloy fin heat sink for high effective cooling operation
3. Both dimmable and non-dimmable are available (0-10V or 1-10V dimmable)
4. Go green,energy saving,low carbon environmental protection,no mercury pollution
5. High power, light weight, easy installation
6. Direct retrofit to most LED Down Light 5 inch/ 6 inch/8 inch /9 inch/10 inch / 12 inch diameter are available.
Specification
| 30-200W LED Recessed Downlights | ||
| Input Voltage | AC100V~305V DC12V/ 24V | |
| Frequency Range | 50Hz~60Hz | |
| Total Harmonic Distortion | ≤ 9 % | |
| Power Factor | >0.95 | |
| Power Efficiency | >87 % | |
| Working Voltage | DC30~36V | |
| Color Rendering Index | Ra>80 | |
| Material | Aluminum Alloy | |
| Led Luminous Efficiency | 130Lm /W | |
| lamps Efficiency | >91 % | |
| Illuminance Uniformity | >0.6 | |
| Color Temperature | 2700-7000K | |
| Light emitting angle | 60° 90° 120° | |
| Junction Temperature | ≤80℃ | |
| Working Temperature | -40℃ ~ +55℃ | |
| Storage Temperature | -25℃ ~ +65℃ | |
| Working Lifespan | 50000H | |
| Family Model | ||
| Model No. | Watt | Lamp Lumen |
| MS-DWH-30W | 30W | 2700-3300lm |
| MS-DWH-40W | 40W | 3600-4400lm |
| MS-DWH-50W | 50W | 4500-5000lm |
| MS-DWH-60W | 60W | 5400-6000lm |
| MS-DWH-80W | 80W | 7200-8000lm |
| MS-DWH-100W | 100W | 9000-10000lm |
| MS-DWH-120W | 120W | 10800-12000lm |
Details
1. 30w 40w 50w 60w 80w 100w 120w 150w 180w 200w is available
2. Support dimmable Triac / 0-10V / DALI Three ways dimmable(need customize)
3. Cream white cover and transparent cover to choose
4. Isolated drive provides high safety.
5. Better heat conductivity and dissipation.
6. There is no glare or flickering from the LED Tube.
7. No UV radiation, no heat radiation,ni noise,no lead&mercury.
Applications
1. Widely used in luxury villas,houses,apartments,high-end stores
2. Cabinet and under counter lighting,office work station
3. Back light,step lighting,lighting boxes.
4. Merchandising,exhibition stands and panels.
5. Use in specialty store,high-end leisure,entertainment clubs
6. Use in shop,counter,family decorations.
Production line
Packaging
Packing for LED Downlight
P6pcs/CTN G.W.:19.2KGS MEAS:57.5*46.5*36CMp

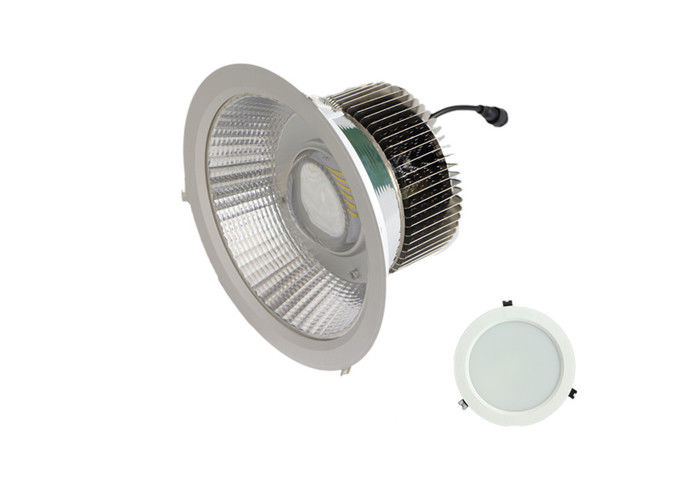

Picture of LED Downlight
Our products are sold all over the world, you can rest assured.
