High Power LED Recessed Downlights Fins Aluminum Cooling For Indoor Hall / Conference Room
-
Highlight
led down lamp
,waterproof led downlights
-
Lamp Power30W-200W
-
Input VoltageAC100-305V DC12V 24V 36V
-
Lumens90-120lm/W
-
Size5'' 6" 8" 10" 12''
-
Beam Angle(°)30° 45° 120° 60° 90° 120°
-
Lamp Body MaterialFins Aluminum + Lens
-
CoverCream Cover / Transparent Cover
-
ItemsLED Recessed Downlights For Indoor Hall
-
InstallationHole Embedded
-
ApplicationsHall, Large Conference Room
-
DimmableSCR / 0-10V / DALI
-
Warranty3 Years
-
Place of OriginChina
-
Brand NameMINSENS
-
CertificationCE ROHS DLC ETL SAA
-
Model NumberMS-DWH-30W-200W
-
Document
-
Minimum Order Quantity10pcs
-
PriceNegotiable
-
Packaging DetailsStandard export packaging or customize
-
Delivery Time5-10 work days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability1000000pcs per month

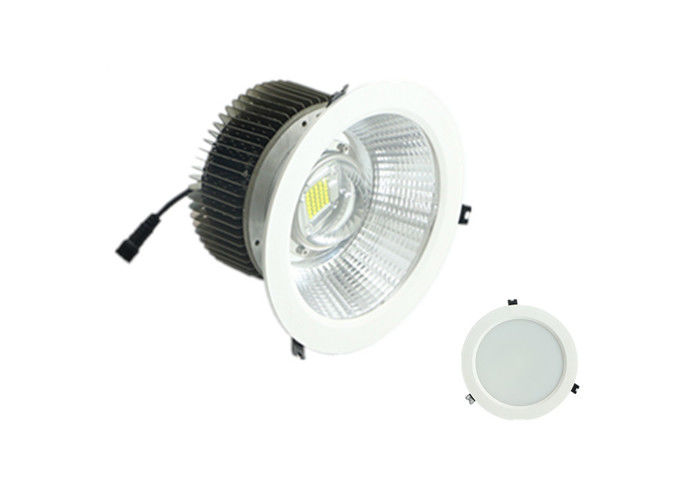

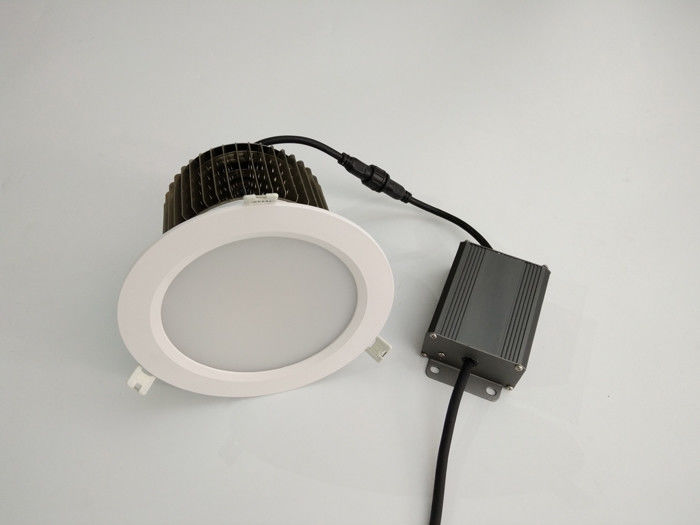

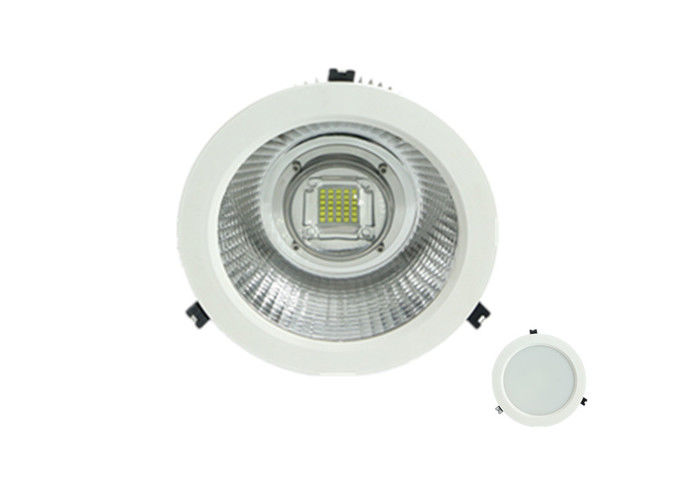

High Power LED Recessed Downlights Fins Aluminum Cooling For Indoor Hall / Conference Room
High Power Fins Aluminum Cooling LED Recessed Downlights For Indoor Hall , Conference
Room
Features
1.High quality Cree /SMD3030 led chip ,120-130lm/W.
2.Unique product design ,up to 80% energy saving, low power consumption ,low heat emission and high brightness.
3.Dimmable and non-dimmable are both available.(0-10V or 1-10V dimmable)
4.Go Green ,energy saving ,low carbon environmental protection ,no mercury pollution.
5.Instant start up , silent operation and flicker-free,effectively protecting the eyes.
Specification
| Watt | 30w 40w 50w 60w 80w 100w 120w 150w 180w 200w |
| Size | 5'' 6" 8" 10" 12'' |
| Input Voltage | AC100V-305V / 347V / 480V , DC12V/24V |
| Frequency | 50/60Hz |
| Power Factor | >0.95 |
| Total Harmonic Distortion | <9% |
| Material | Aluminum Alloy Fin |
| LEDS | CREE |
| LED Luminous Efficiency | 120-130lm/w |
| Lamp Efficiency | > 91% |
| Color Rendering Index | >80ra |
| Color Temperature | Warm White:3000K |
| Pure White:4000-4500K | |
| Cold White:5700-6300K | |
| Rated LED Life | Up to 50,000 hrs |
| Protection | IP54 |
| Warranty | 3 Years |
Details
30w 40w 50w 60w 80w 100w 120w 150w 180w 200w is available
Support dimmable SCR / 0-10V / DALI Three ways dimmable(need customize)
Cream white cover and transparent cover to choose
Applications
Corridor, office, shopping mall, display window and inner lighting
Reception room, lobby, hotel room lighting
Museum, exhibition hall, art gallery exhibit lighting
Bus / railway / subway stations and other indoor lighting.
Demension
5'' 6" 8" 10" 12'' diameter and hole size
Packaging
Standard export packaging or customized according to customer requirements.
Our products are sold all over the world, you can rest assured.
