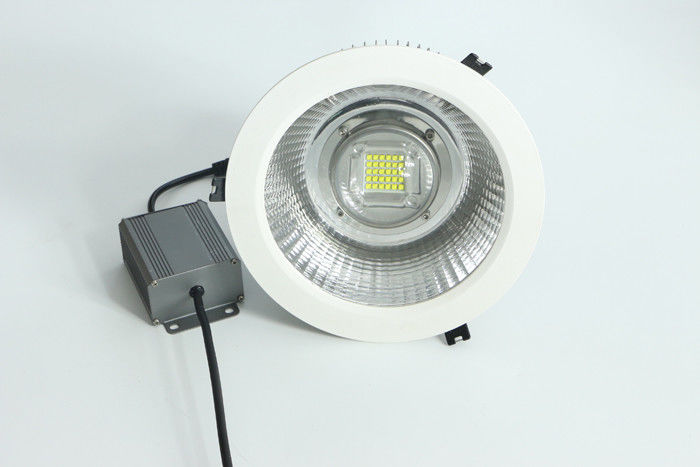

Shallow Depth LED Recessed Downlights , 100W LED Recessed Ceiling Lights 5" 6" 8" 10" 12''
-
Highlight
led down lamp
-
Lamp Power30W-200W
-
Input Voltage(V)AC100-305V DC12V 24V 36V
-
Lumens90-120lm/W
-
Size5'' 6" 8" 10" 12''
-
Beam Angle(°)30° 45° 120° 60° 90° 120°
-
Lamp Body MaterialFins Aluminum + Lens
-
Color Temperature2800~7000K
-
ItemsLED Recessed Downlight
-
InstallationRecessed
-
ApplicationsHall, Large Conference Room
-
Place of OriginChina
-
Brand NameMINSENS
-
CertificationCE ROHS DLC ETL SAA
-
Model NumberMS-DWH-30W-200W
-
Document
-
Minimum Order Quantity10pcs
-
PriceNegotiable
-
Packaging DetailsStandard export packaging or customize
-
Delivery Time5-10 work days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability1000000pcs per month
Shallow Depth LED Recessed Downlights , 100W LED Recessed Ceiling Lights 5" 6" 8" 10" 12''
5" 6" 8" 10" 12'' High Power LED Recessed Downlights 100W For Conference Hall , Lobby 10m -
40m Installation Height
Features
1. Unique fin LED downlight, light weight, small size, not easy to deformation, thermal performance, low transportation costs.
2. The use of the United States Section sharp light source, the use of unique multi-chip integrated module light source design, with high thermal conductivity, low light failure, light color pure, no ghosting and so on.
3. Downlight hole size optional 5 inch 6 inch 8 inch 10 inch 12 inch.

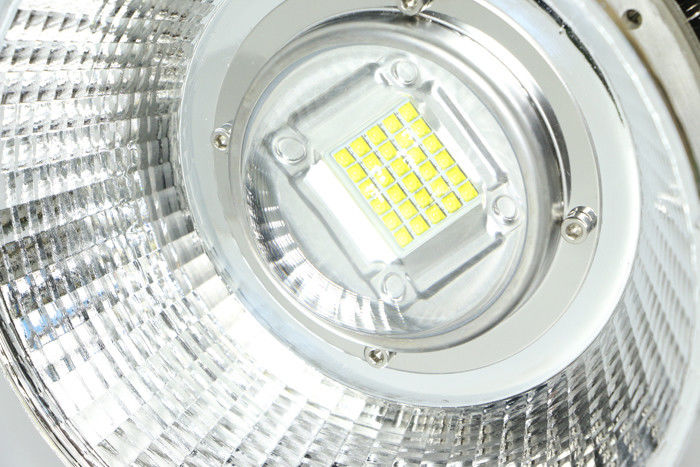

4. Using high quality CREE LED chip, 120-130lm/w high brightness
5. Power-saving, best aluminum alloy fin heat sink for high effective cooling operation
6. Both dimmable and non-dimmable are available (0-10V or 1-10V dimmable)
7. Modern and brandnew style, unique in market
8. User-friendly anti-flicker design, instant start up

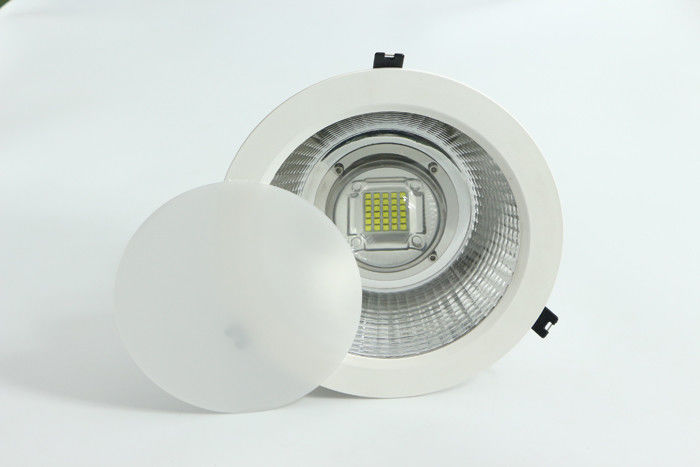

9. With reflective cup and milkly white lens for option
10. High power, arge dimensions, light weight, easy installation
11. Widly applied to commercial premises places, hospital, hotel, etc.
Specification
| MS-DWH-30W | 30W | 3050 | 5'' 6" 8" 10" 12'' | 5inch:140-150mm 6inch:170-180mm 8inch:200-215mm 10inch:240-250mm 12inch:260-275mm |
| MS-DWH-40W | 40W | 4015 | ||
| MS-DWH-50W | 50W | 5215 | ||
| MS-DWH-60W | 60W | 6300 | ||
| MS-DWH-80W | 80W | 8435 | ||
| MS-DWH-100W | 100W | 11532 | ||
| MS-DWH-120W | 120W | 13005 | ||
| MS-DWH-150W | 150W | 16225 | ||
| MS-DWH-180W | 180W | 18652 | ||
| MS-DWH-200W | 200W | 21568 | ||
| Input Voltage | AC100V~305V | |||
| Frequency Range | 50Hz~60Hz | |||
| Total Harmonic Distortion | ≤ 9 % | |||
| Power Factor | >0.98 | |||
| Power Efficiency | >87 % | |||
| Working Voltage | DC30~36V | |||
| Color Rendering Index | Ra>80 | |||
| IP Grade | IP54 | |||
| Material | Aluminum Alloy | |||
| Led Luminous Efficiency | 95-120Lm /W | |||
| lamps Efficiency | >91 % | |||
| Illuminance Uniformity | >0.6 | |||
| Color Temperature | 2700-7000K | |||
| Light emitting angle | 30° 45° 120° 60° 90° 120° | |||
| Junction Temperature | ≤80℃ | |||
| Working Temperature | -40℃ ~ +55℃ | |||
| Storage Temperature | -25℃ ~ +65℃ | |||
| Working Lifespan | 50000H | |||
Details
1.30W-200W are offered
2.Replace /OSRAM/ Metal Halide Downlight up to 400W .
3.Sizes available :5”-12” Diameter.
4.Suitable Heights: 10M-40M
chip typical light distribution curve
Installation
Open hole embedded installation
Applications
1. Hotel, hotel, hotel lighting
2. Museums, stadium lighting
3 large shopping malls, supermarket lighting
4. Hou hall, bus terminal, airport, subway station lighting
Packaging
Standard export packaging or customized according to customer requirements.
Our products are sold all over the world, you can rest assured.
