Low Profile Recessed Dimmable LED Downlights High Brightness 80% Energy Saving
-
Highlight
led down lamp
-
Lamp Power30w 40w 50w 60w 80w 100w 120w 150w 180w 200w
-
Input Voltage(V)AC100-305V DC12V 24V 36V
-
Lumens90-120lm/W
-
Size5'' 6" 8" 10" 12''
-
Beam Angle(°)30° 45° 120° 60° 90° 120°
-
Lamp Body MaterialFins Aluminum
-
Color Temperature2800~7000K
-
Dimension175-300mm Diameter
-
Cut140-285mm
-
CoverClear Or Frosted
-
Place of OriginChina
-
Brand NameMINSENS
-
CertificationCE ROHS DLC ETL SAA
-
Model NumberMS-DWH-30W-200W
-
Document
-
Minimum Order Quantity10pcs
-
PriceNegotiable
-
Packaging DetailsStandard export packaging or customize
-
Delivery Time5-10 work days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability1000000pcs per month

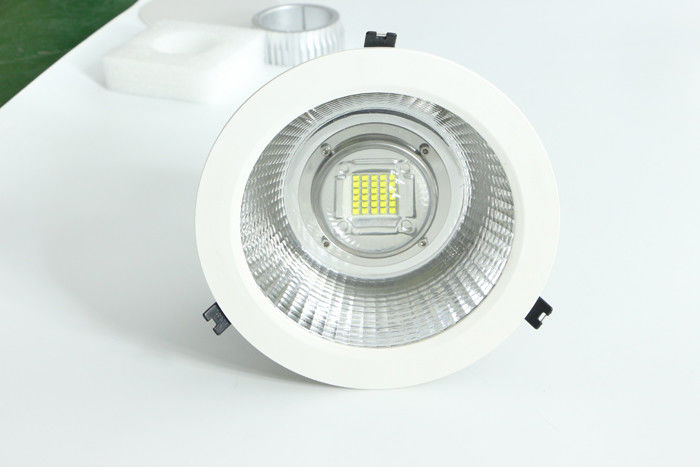

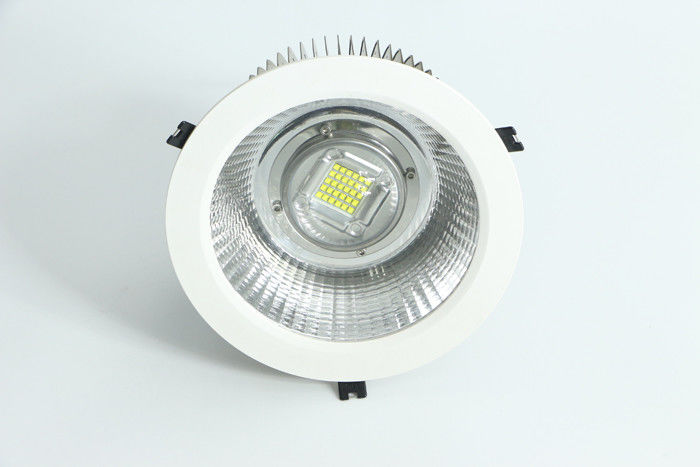

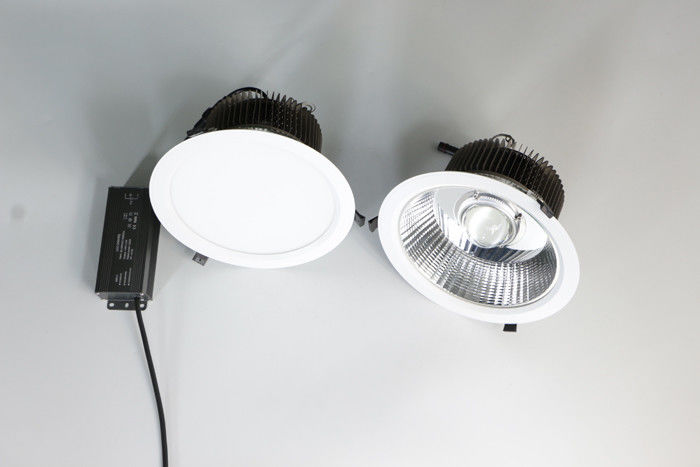

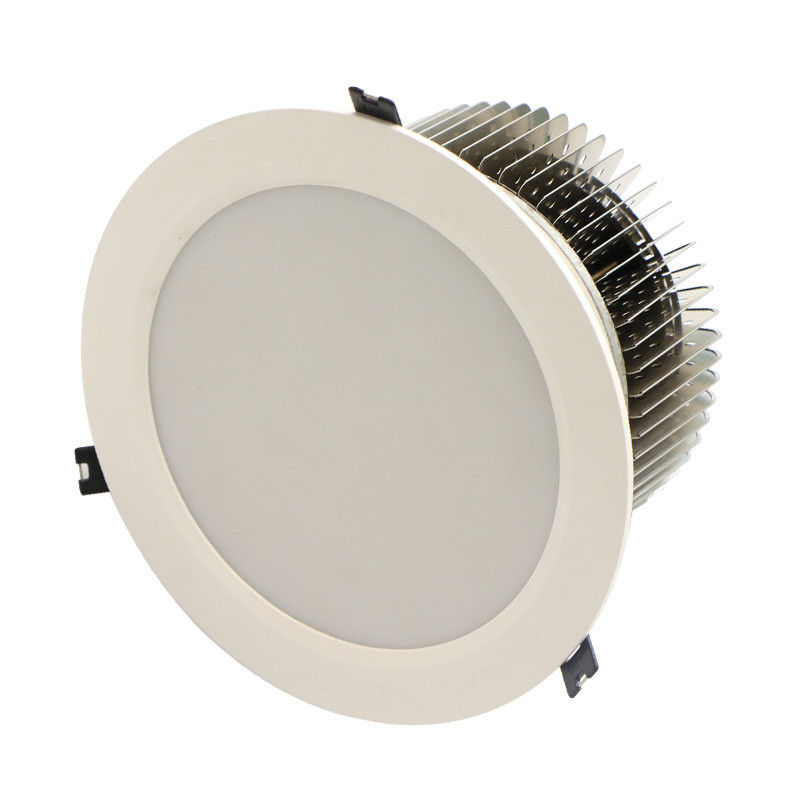

Low Profile Recessed Dimmable LED Downlights High Brightness 80% Energy Saving
30w 40w 50w 60w 80w 100w 120w 150w 180w 200w Dimmable LED Recessed Downlights
Dimmable 6" 8" 10" 347V 277V
Features
1. 30W-200W are offered
2. Replace /OSRAM/ Metal Halide Downlight up to 400W .
3. Sizes available :5”-12” Diameter.
4. Suitable Heights: 10M-40M
5. High quality Cree led chip 130lm/W.
6. Unique product design ,up to 80% energy saving, low power consumption ,low heat emission and high brightness.
7. Dimmable and non-dimmable are both available.(0-10V or 1-10V dimmable)
8. Go Green ,energy saving ,low carbon environmental protection ,no mercury pollution.
9. Instant start up , silent operation and flicker-free,effectively protecting the eyes.
10. Designed as a direct retrofit to most LED Down Light ,5 inch ,6 inch ,8 inch ,9 inch, 10 inch and 12 inch diameter are available.
Specification
| Power | 30W-80W 100W-200W | ||||
| Downlights Dimension | 5'' 6" 8" 10" 12'' | ||||
| Input voltage | AC100-305V DC12V 24V 36V | ||||
| PF | >0.9 | ||||
| Light Emitting Angle | 30° 45° 120° 60° 90° 120° | ||||
| LED luminous Efficiency | 90-120lm/W | ||||
| Color Rendering Index | 80 Ra | ||||
| Dimension(mm) | 175*120 | 200&120 | 225*130 | 270*140 | 300*180 |
| Cut out size(mm) | 140-150mm | 170-180 | 200-215 | 240-250 | 260-280 |
| Weight | 0.6kg | 0.7kg | 1.0kg | 1.2kg | 1.3kg |
| IP Grade | IP54 | ||||
Details
Using high quality CREE LED chip, 120-1301m/w high brightness.
Power-saving, best aluminum alloy fin heat sink for high effective cooling operation.
Both dimmab!e and non-dimmable are available (O-10V or 1-10V dimmable).
Modern and brandnew style, unique in market.
User-fiendly anti-flicker design, instant start up With reflective cup and milkly white lens for option.
High power, arge dimensions, light weight, easy installation.
Widly applied to commercial premises places, hospital, hotel, etc.
Aging test
Applications
Indoor lightings, Retrofit lightings, low bay lightings, office, household lightings, shopping malls, stores, super markets, ect
Packaging
Standard export packaging or customized according to customer requirements
