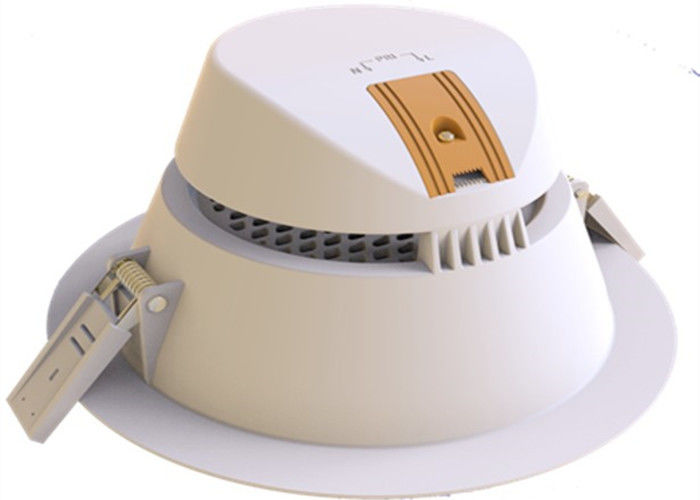

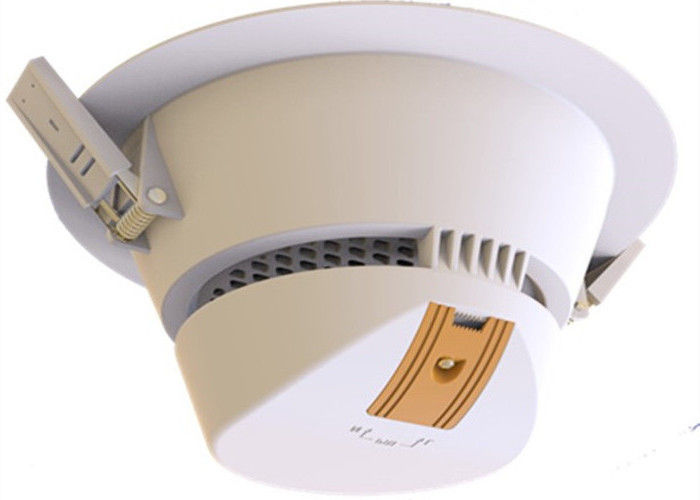

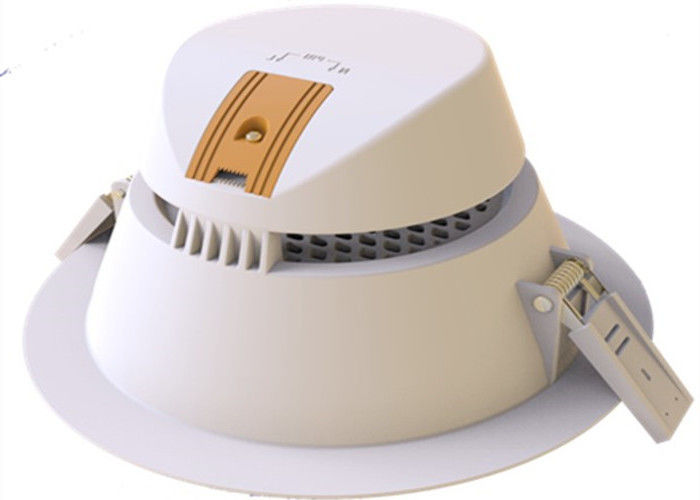

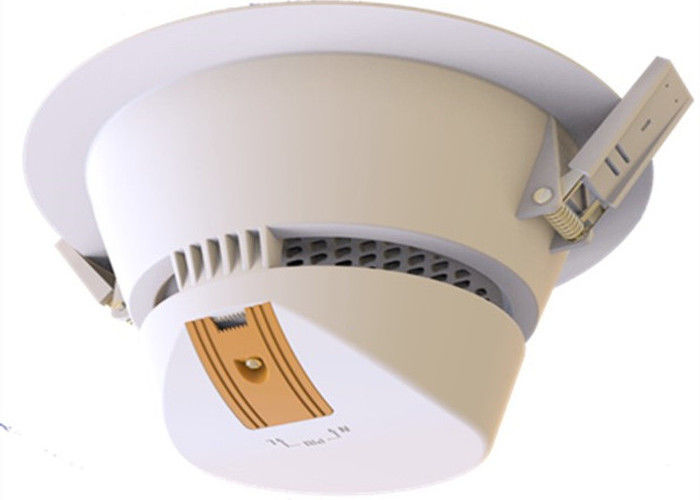

Recessed Dimmable Led Panel Downlight Integrated Design For Library / Living Room
-
Highlight
led slim downlights
-
Cri (ra>)80,85
-
DescriptionDown Light
-
Input Voltage(v)AC85-265V
-
Warranty(years)3
-
Working Temperature(℃)-20 - 45
-
Light SourceLED
-
Color Temperature(cct)Cool White,2700-6500K,Warm White,Pure White,3000K4000K6000K
-
CertificationCE,RoHS,EMC
-
Place of OriginChina
-
Brand NameAina Lighting
-
CertificationCE, ROHS
-
Model NumberClivia 6-12w
-
Document
-
Minimum Order Quantity10
-
Packaging DetailsCarton
-
Delivery Time7 days for samples
-
Payment TermsL/C, T/T, Western Union
-
Supply Ability10000 per day
Recessed Dimmable Led Panel Downlight Integrated Design For Library / Living Room
Clivia Series Recessed Dimmable led Downlights for Library and Living room
Features
Thermal conductive plastic housing,V-1 flame rating.
Drive built-in,integrated design.
Honeycomb heat dissipation Design
90°beam angle.
Non dimmable.
3000K 4000K 6000K for option.
Warranty: 3years. IP44 front only.
- 1. White inner box or color box,Brown Master carton .
2. OEM package available - Port
- Shanghai
- Lead Time :
-
Quantity(Pieces) 1 - 1000 >1000 Est. Time(days) 45 To be negotiated
Application
Shopping mall, Super-market, Hotel, Office, Path way, Stations, School, Library, Living room
Specification
| Model No. | Wattage |
Lumens(±10%) Lm |
Input Voltage | CCT | CRI |
Dimensions mm |
Cutout mm |
| AN-Clivia-6W-120/R860/840/830 A/B/C | 6W | 570-627 | 220-240V~50-60Hz | 3000K 4000K 6000K for option | Ra80 | Φ145*H85 | Φ120-125 |
| AN-Clivia-9W-120/R860/840/830 A/B/C | 9W | 810-890 | Φ145*H85 | Φ120-125 | |||
| AN-Clivia-12W-150/R860/840/830 A/B/C | 12W |
1080-1200
|
Φ175*H93 | Φ145-150 |
| Model No. | Wattage |
Lumens(±10%) Lm |
Input Voltage | CCT | CRI |
Dimensions mm |
Cutout mm |
| AN-Koala-9W-92/R8TW | 9W | 810-1000 |
220-240V ~50-60Hz |
3000K 4000K 5700K CCT Selectable |
Ra80 | Φ104*H30 | Φ92 |
| Model No. | Wattage |
Lumens(±10%) Lm |
Input Voltage | CCT | CRI |
Dimensions mm |
Cutout mm |
| AN204-6W-105x105/R8TW | 6W | 480-510 | 220-240V~50-60Hz |
3000K 4000K 6000K CCT Selectable |
Ra80 | 120*120*35 | 105*105 |
| AN204-12W-155x155/R8TW | 12W | 960-1020 | 170*170*38 | 155*155 | |||
| AN204-18W-205x205/R8TW | 18W | 1440-1530 | 220*220*45 | 205*205 |
FAQ
Q1: Are you factory?
A1: YES. Welcome to visit our company and factory.
Q2: What is the warranty?
A2: At least 3 years warranty.
Q3: What is the shipping way?
A3: DHL, UPS, TNT, EMS, FedEx. By sea.
Q4: What is the payment terms?
A4: L/C.T/T.
About us
Aina-4 Technologies (Shanghai) Co., Ltd. is a private limited company registered in Shanghai, China. It specializes in the R&D, design, manufacture, and marketing of light emitting sources and lighting fixtures. It is an enterprise formed by four (4) pioneer lighting companies, putting their resources together to produce products and services that create sustainability not only for the environment, but also for the economies and societies that the company grows with.
Our products are sold all over the world, you can rest assured.
