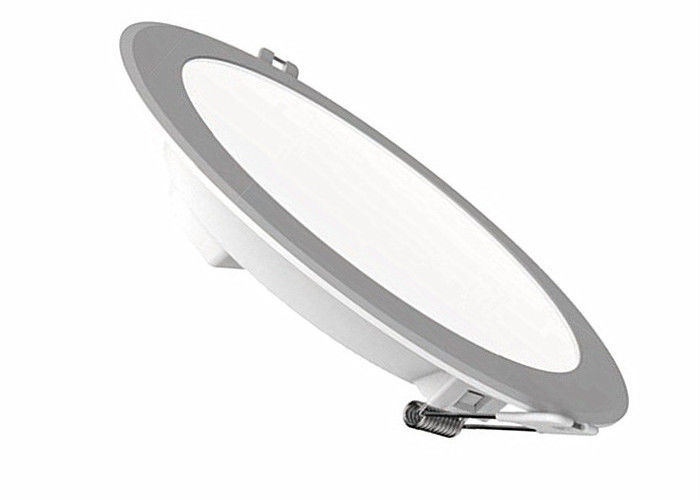

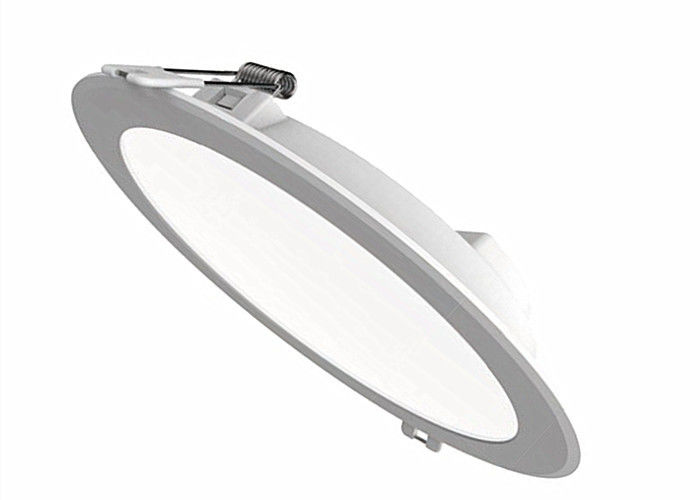

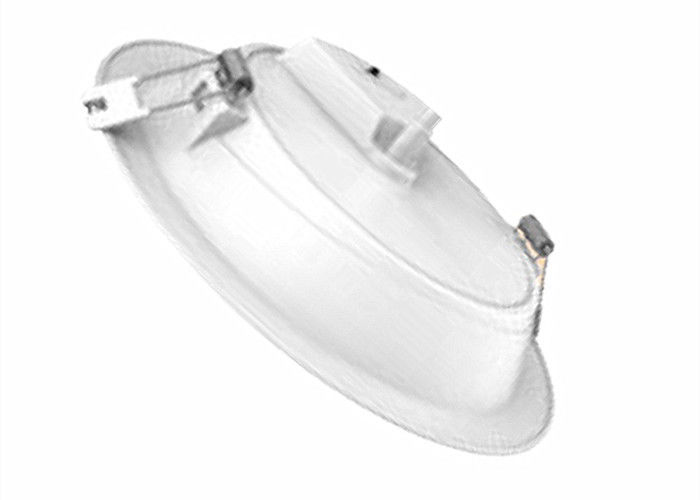

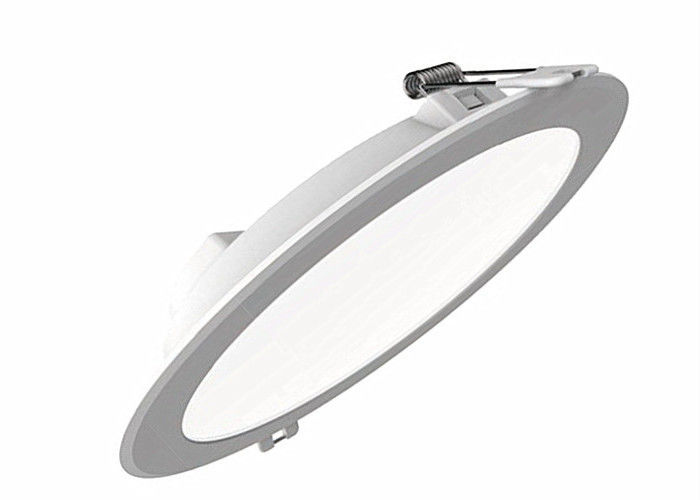

Commercial Round Led Panel Downlight IP20 CCT 5500K Drive On Board Design
-
Highlight
led ceiling downlights
-
Light SourceLED
-
DescriptionDown Light
-
Input Voltage(v)AC85-265V
-
Warranty(years)3
-
Working Temperature(℃)-20 - 45
-
Color Temperature(cct)Cool White,2700-6500K,Warm White,Pure White,3000K4000K6000K
-
Cri (ra>)80,85
-
CertificationCE,RoHS,EMC
-
Place of OriginChina
-
Brand NameAina Lighting
-
CertificationCE, ROHS
-
Model NumberAN203-6W-100/R8TW
-
Document
-
Minimum Order Quantity10
-
Packaging DetailsCarton
-
Delivery Time7 days for samples
-
Payment TermsL/C, T/T, Western Union
-
Supply Ability10000 per day
Commercial Round Led Panel Downlight IP20 CCT 5500K Drive On Board Design
Model 203 Down Light for Commercial Using With Round Futures IP20 CCT 5500K
Features
Plastic housing,V-2 flame rating.
Drive on board design.
Triac dimmable(A) and Tri-color(B) available.
Uniform light, without LGP, no yellowing risk.
3000K 4000K 6000K for option.
Warranty: 3years. IP44 front only. 110°beam angle.
Application
Shopping mall, Super-market, Hotel, Office, Path way, Stations, School, Library, Living room
Specification
| Model No. | Wattage |
Lumens(±10%) Lm |
Input Voltage | CCT | CRI |
Dimensions mm |
Cutout Mm |
| AN203-6W-100/R8TW | 6W | 480-510 | 220-240V~50-60Hz |
3000K 4000K 6000K CCT Selectable |
Ra80 | Φ113*35 | Φ90-100 |
| AN203-12W-150/R8TW | 12W | 960-1020 | Φ174*38 | Φ145-155 | |||
| AN203-18W-205/R8TW | 18W | 1440-1530 | Φ244*38 | Φ198-210 | |||
| AN203-20W-220/R8TW | 20W | 1600-1700 | Φ265*41 | Φ215-230 |
