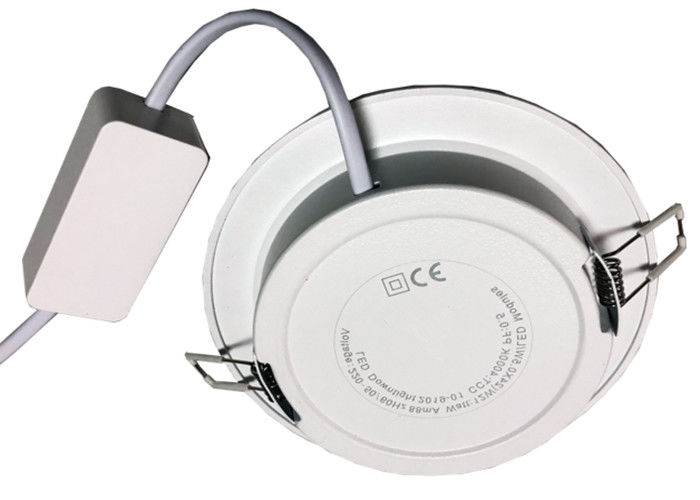

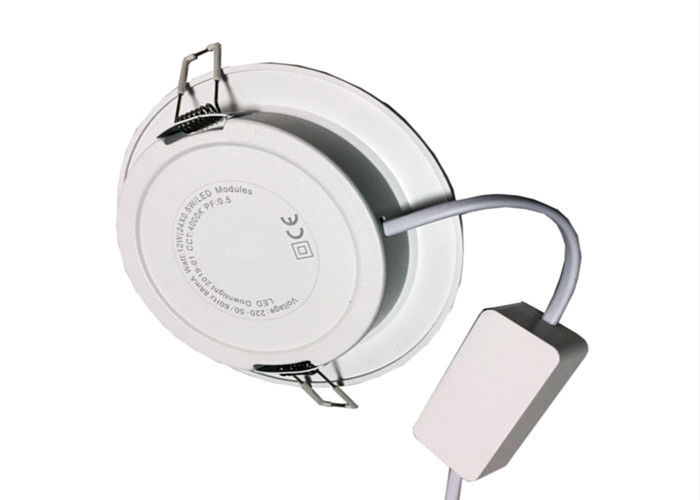

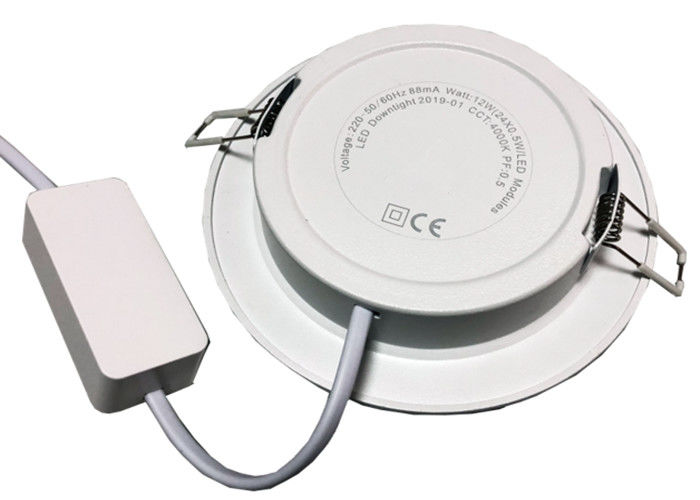

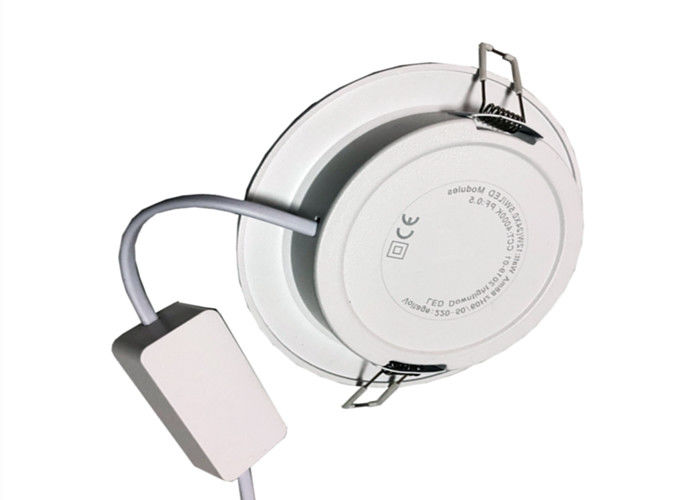

Meeting Room Led Slim Round Panel Downlight Beam Angle 100 Degrees Driver Outside
-
Highlight
led ceiling downlights
,flat led ceiling light
-
DescriptionLED Down Light
-
Power4W-16W
-
Voltage220V-240V
-
Size3 In To 5 In
-
Ra>80
-
Lumen360LM To 1440LM
-
CCT3000K, 4000K, 6000K
-
CutoutΦ92*26 To Φ170*26
-
Place of OriginChina
-
Brand NameAina
-
CertificationCE, ROHS
-
Model NumberAN-TD-196
-
Document
-
Minimum Order Quantity10
-
Packaging DetailsCarton
-
Delivery Time5 days for samples
-
Payment TermsL/C, D/A, T/T, Western Union
-
Supply Ability10000 per day
Meeting Room Led Slim Round Panel Downlight Beam Angle 100 Degrees Driver Outside
4W to 16w TD196 Series 4500K Down Panel Light Beam Angle 100 degrees Driver Outside
Descrption
LED Down Light
Power: 4w to 16w
TD196 series
LED downlight is a kind of modern and decorative lighting, which is ideal for shopping malls, supermarkets, hotels, jewelry counters and high-end home. LED Downlight has main advantages of low-carbon energy, adapting to global energy conservation, low-carbon lifestyle trends. The life span for LED downlight is 50000 hours, equivalent to 50 times of incandescent lamp
SMD Led light distribute ray more even and downy, service life is much longer.
Made of high quality pure aluminum and die-castin durable corrosion resistance,
anti-fading and anti-scratch electrostatic thermo-painting finish.
Perfect integration of lamp body and power supply, self-ballast LED module to solve the fussiness
caused by split drive die casting integral molding with in tegrated heat dissipation design
Die-casting aluminum lamp rings are strong surface texture with excellent corrosion resistance.
It also provides a good anti-dust surfacw with frosted surface treatment
Features
lAlumimun + Plastic housing.
lDrive built-in.
l100°beam angle.
lNon dimmable.
l3000K 4000K 6000K for option.
lWarranty: 3years. IP20
Specification
| Model | Power | Input | Ra | Beam Angle | Lumen |
| AN-TD-196-4-3-10 | 4W | AC220-240V | >80 | 100 degrees | 360LM |
| AN-TD-196-16-6-10 | 16W | AC220-240V | >80 | 100 degrees | 1440LM |
| AN-TD-195-3.5-3-10 | 3W | AC220-240V | >80 | 100 degrees | 300LM |
| AN-TD-195-5-3.5-10 | 5W | AC220-240V | >80 | 100 degrees | 500LM |
| AN-TD-194-4-3.5-10 | 4W | AC220-240V | >80 | 100 degrees | 400LM |
| AN-TH-193A-5-3-10 | 5W | AC220-240V | >80 | 60 degrees | 500LM |
| AN-TH-192-3-3-10 | 3w | AC220-240V | >80 | 100 degrees | 270LM |
Application
Airport, Bathroom, Bathroom Room, Bedroom, Car Park, Church, Cinema, Gallery, Garage Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room
