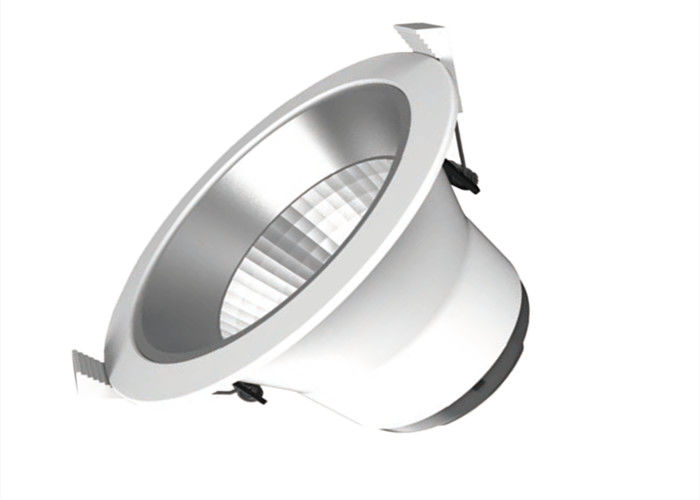

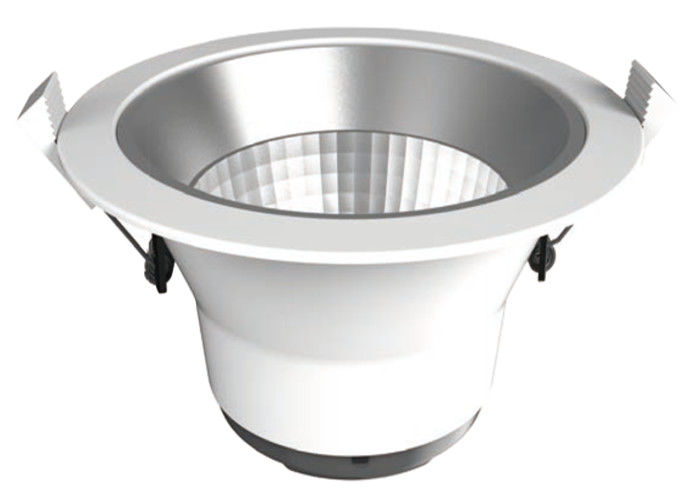

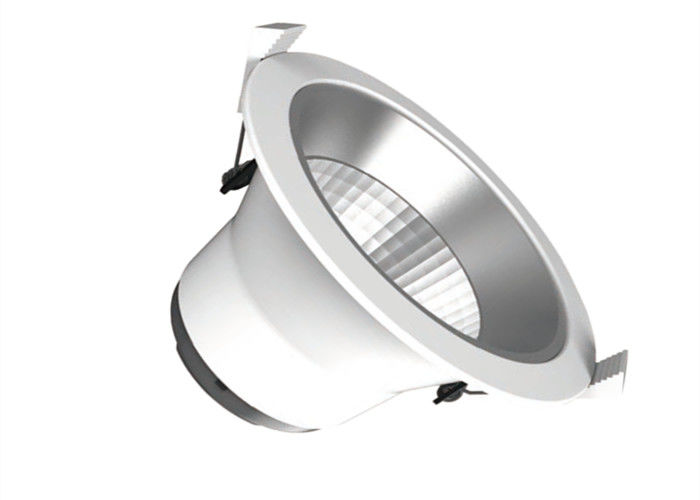

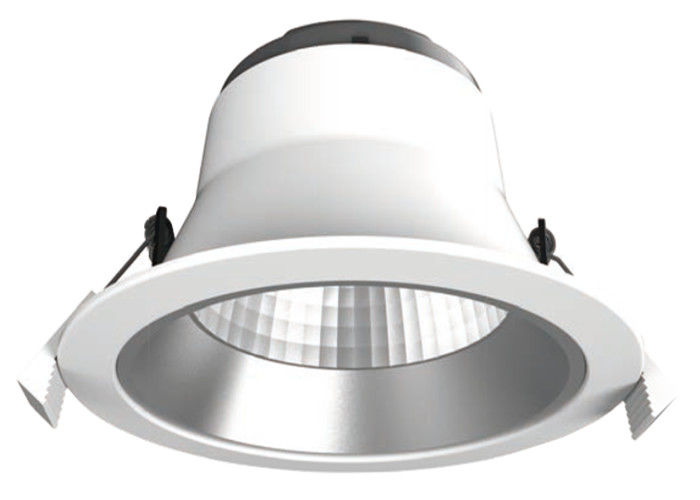

500LM High Lumen Led Panel Downlight 5W 60° Beam Angle 3 Years Warranty

500LM High Lumen Led Panel Downlight 5W 60° Beam Angle 3 Years Warranty

Products - LED Panel Downlight
  • Highlight

    led slim downlights

  • Description
    LED Down Light
  • Power
    5W
  • Voltage
    220V-240V
  • Size
    3 In
  • Ra
    >80
  • Lumen
    500LM
  • CCT
    3000K, 4000K, 6000K
  • Cutout
    Φ85*H30.8
  • Place of Origin
    China
  • Brand Name
    Aina
  • Certification
    CE, ROHS
  • Model Number
    AN-TH-193A-5-3-10
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    10
  • Packaging Details
    Carton
  • Delivery Time
    5 days for samples
  • Payment Terms
    L/C, D/A, T/T, Western Union
  • Supply Ability
    10000 per day

500LM High Lumen Led Panel Downlight 5W 60° Beam Angle 3 Years Warranty

  • 500LM High Lumen Led Panel Downlight 5W 60° Beam Angle 3 Years Warranty
  • 500LM High Lumen Led Panel Downlight 5W 60° Beam Angle 3 Years Warranty
  • 500LM High Lumen Led Panel Downlight 5W 60° Beam Angle 3 Years Warranty
  • 500LM High Lumen Led Panel Downlight 5W 60° Beam Angle 3 Years Warranty
Get Price Contact Now

5W TD193 Series Down light High Lumen Down Light 500LM IP44 Ra>80 for Hotel



Descrption

LED Down Light

Power: 5w

TD193 series



Perfect integration of lamp body and power supply, self-ballast LED module to solve the fussiness

caused by split drive die casting integral molding with in tegrated heat dissipation design



Die-casting aluminum lamp rings are strong surface texture with excellent corrosion resistance.

It also provides a good anti-dust surfacw with frosted surface treatment



Features

l60° beam angle.
lNon dimmable(A) and Tri-color(B) available.
lAluminum housing, Excellent finish.
lDrive outside, Variable dimming methods by changing drivers(C).
lCCT Selectable: 3000K 4000K 6000K.
lWarranty: 3years. IP20



Specification

Model Power Input Ra Beam Angle Lumen
AN-TH-193A-5-3-10 5W AC220-240V >80 100 degrees 500LM
AN-TH-192-3-3-10 3w AC220-240V >80 100 degrees 270LM
AN-TD-191-7-3-10 7w AC220-240V >80 100 degrees 650LM
AN-TD-191-8-4-10 8w AC220-240V >80 100 degrees 700LM
AN-TD-191-10-4-10 10w AC220-240V >80 100 degrees 950LM





Application

Airport, Bathroom, Bathroom Room, Bedroom, Car Park, Church, Cinema, Gallery, Garage Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room




500LM High Lumen Led Panel Downlight 5W 60° Beam Angle 3 Years Warranty 0500LM High Lumen Led Panel Downlight 5W 60° Beam Angle 3 Years Warranty 1



About us

Aina-4 Technologies (Shanghai) Co., Ltd. is a private limited company registered in Shanghai, China. It specializes in the R&D, design, manufacture, and marketing of light emitting sources and lighting fixtures. It is an enterprise formed by four (4) pioneer lighting companies, putting their resources together to produce products and services that create sustainability not only for the environment, but also for the economies and societies that the company grows with.



•Headquartered in Shanghai
•Research & development center located in Shanghai
•Sales center located in Beijing
•Complemented by a team of professionals with over ten (10) years of experience in the lighting industry.
