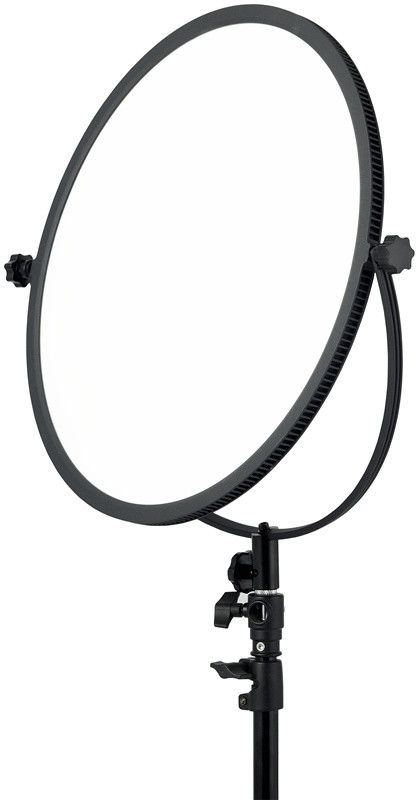

Large Size Round Soft LED Video Light C-700RSV for Photography

What's Includied

1 x LED C-700RSV Light
2 x 6600 mAh F960 battery
1 x Dual Battery charger with adapter
1 x 12V 80W AC adapter with power cord
1 x Ring Bracket
1 x Carry case

Product Characteristics and Advantage

LS LED Studio lights C-700RSV is the ideal light for interview or location work with unique characteristic of extremely soft lighting effect. It is so soft that people can look directly to the light with no harm to the eyes. It is soft but different to the tradional light which with LEDs bounced directly from the LED board.

C-700RSV light using the techonology with the LEDs on the lateral of the light housing. The light beam is reflected from the diffussion panel from inside of light. It is the slim light and portable for location work because it can powered by the batteries of Sony V type or the Sony type NP-F series. With it, it can continuous work for 1.3 hrs. And for indoor use, the light work with the AC power adapter.

Operation instructions

1. Install two 6600mAh lithium batteries or a Sony V type onto the light, or connect to 15V 90W adapter. Turn on the light and light works.

2. The right side of the LCD shows the battery level .

Four columns:   75%-100%

Three columns: 50%-75%

Two columns:    25%-50%

One column:     10%-250%

No colimn:         10% or less

Flicker: power not enough

3.  Pls adjust the brightness (10%-100%) and color temperature (3200K-5600K) of C-700RSV through the power & brightness dimming knob and CT dimming knob.

4. When the colum on the LCD flicks, it means the battery runs out, pls press the installation and uninstallation button to take off the battery. It takes 4-5hrs to recharge it.

Name of the parts

Cautions:

1. It is no need to replace the LED bulbs in normal use.Please do not disassemble the light or solder the LED bulbs by the non-professionals.

2. Please do take off the batteries when in storage.

3. Please do discharge and recharge the battery at least once for every month if it is not in use.

4. It is not allowed to drop or impact the light to avoid fire.

5. It is not allowed to short circuit the battery,or it may seriously damage the battery or cause a

    fire.

6. It is not allowed to throw the battery into fire.

7. The 12V 2A adapter is used for battery charging only. Pls do not use it on the light directly.

Warranty:

The LED light is guaranteed for 12 months.

The battery is  guaranteed to be charged and discharged for 500 times.
