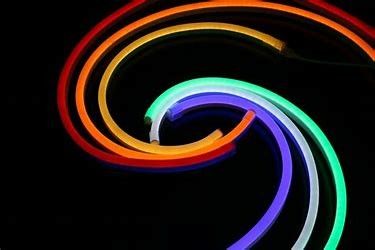

LED Neon Rope Light Soft Texture
Our Product Introduction
for more products please visit us on solarpanelstreetlight.com
Basic Information
Place of Origin:
Shenzhen,China
Brand Name:
TL
Certification:
CE,ROSH,UL
Model Number:
TL-SW10CA/B
Minimum Order Quantity:
1pcs
Price:
Negotiable
Packaging Details:
Carton
Delivery Time:
7-15 workdays
Payment Terms:
T/T
Supply Ability:
5000m/day
Product Specification
Part No:
TL-SW10CA/B
LED Qty/m:
108pcs
LED:
SMD5050
Materials:
Silicone
IP Grade:
IP67
Color:
RGB
Voltage:
DC12V/24V
Performance:
Stable Reliability,UV And Yellowish Resistant
Cut Length:
28mm/56mm
Certification:
UL CE ROSH
Highlight:
led rope light
,led neon sign lights
Our Product Introduction
for more products please visit us on solarpanelstreetlight.com
Product Description
Mini Size 28mm Cutable 10mm Wide 12V LED RGB Neon Rope Strip with CE UL
Application
-
Signage lighting ,
Outdoor and indoor decoration,
Contour application.
Product features
- Dot-free linear neon-like illumination;
- Fabricated with Eco-friendly, UV-resistant silicone material;
- V-2 flame resistance;
- Flexible PCB with 2835 SMD LED technology;
- 28mm cutting mark by each, much flexible on different length request;
- Small size L10XW17mm, economical;
- IP68.
- table reliability and anti-UV.
- CE RoH, cULus Listed.
Technical data
| Part No | light color | light wavelength (nm) | light angle (°) | lumens (lm/m) | light efficiency (lm/W) | voltage (DC/V) | power (W/M) |
|
TL-SW10CA/B |
R | 617 | 120 | 55.25 | 12.79 | 12/24 |
17.28 |
| G | 515 | 120 | 136.79 | 21.11 | 12/24 | ||
| B | 462 | 120 | 26.19 | 4.042 | 12/24 |
① Tolerance range for optical and electrical data: ±15 %.
② All value @ ta=25℃.
③ Voltage tolerance range of the power supply: ±5 %.
Application data
| Maximum length① |
10/15 meters (32.8/49.2ft) |
| Ambient temperature range | -25 ~ +50 °C |
| The temperature of module top | 65 °C |
| Storage temperature range | -40 ~ +70 °C |
| Certification | CE/UL/ RoHS |

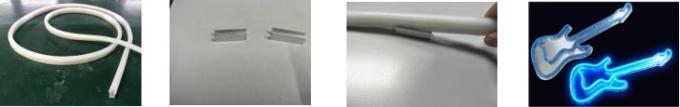

Installation
U-type PC accessory to fix
Product 2D drawing
- 12VDC/24VDC product interior drawing
- Product installation schematic diagram
Product sectional drawing
Product application
Product ⇒ Fix letter groove ⇒ Clip product ⇒ Actual result
Connect two products
Product ⇒ Cut the product based ⇒ Solder the wire ⇒ Actual result
on application requirement “+/+”, “-/-“
Benging direction
The maximum bending angle 360°
The minimum bending radius: 15mm (0.59")

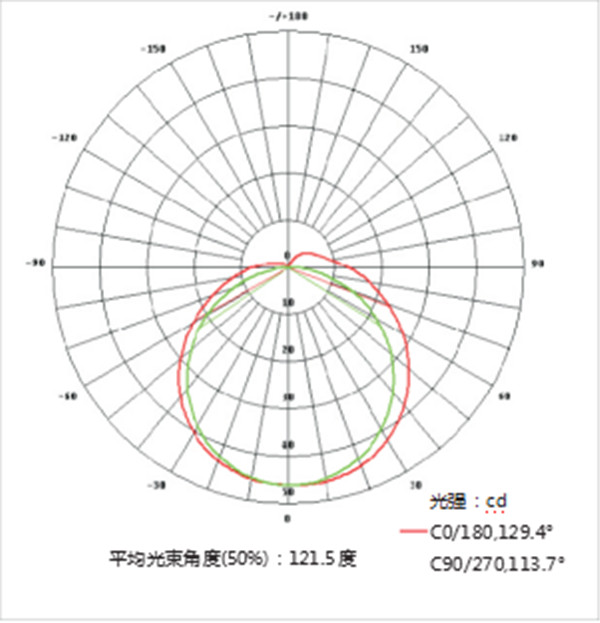

Light distribution
Packaging information
|
Product name |
Product dimension (L*W*H) |
Carton dimension (mm/inch) |
Total length/carton |
Gross |
|
RCC0GX06A/B(2835) |
5m*8mm*12mm (16.4ft*0.32"*0.47") | 520*370*260 (20.5"*14.5"*10.2") |
200m (656ft) |
20 |
