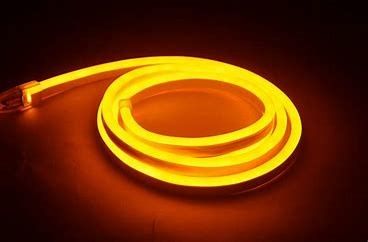

Rope UV Resistant Neon Tape Light
Our Product Introduction
for more products please visit us on solarpanelstreetlight.com
Basic Information
Place of Origin:
Shenzhen,China
Brand Name:
TL
Certification:
CE,ROSH,UL
Model Number:
TL-SW08A/B
Minimum Order Quantity:
1pcs
Price:
Negotiable
Packaging Details:
Carton
Delivery Time:
7-15 workdays
Payment Terms:
T/T
Supply Ability:
5000m/day
Product Specification
Material:
Silicon
Standard Length:
5 Meters(16.4ft)/10m(32.8ft)
Beam Angle:
150°
Input Voltage:
12V/24V
Power:
14w/m
Color:
White/red/green/blue/yellow /pink/purple
Waterproof:
IP68
Performance:
Stable Reliability,UV And Yellowish Resistant
Lifetime:
50000H
Certification:
UL CE ROSH
Highlight:
led rope light
,led flex tube lights
Our Product Introduction
for more products please visit us on solarpanelstreetlight.com
Product Description
Mini 8x10mm 12v 24v Side View 2.5cm Cut Length Led Flex Neon Strip Rope for Sign Logo
Application
- Signage lighting
- Outdoor and indoor decoration
- Contour application
.
Product features
Dot-free linear neon-like illumination
Fabricated with Eco-friendly, UV-resistant silicone material; V-2 flame resistance;- Flexible PCB with 2835 SMD LED technology;
- 5mm cutting mark by each, much flexible on different length request;
Small size L6XW12mm, economical; CE RoH, cULus Listed
.
Application data
| Maximum length① |
10/15 meters (32.8/49.2ft) |
| Ambient temperature range | -25 ~ +50 °C |
| The temperature of module top | 65 °C |
| Storage temperature range | -40 ~ +70 °C |
| Certification | CE/UL/ RoHS |
Installation
U-type PC accessory to fix
Technical data
| Part No. | TL-SW08A/B |
| LED Qty/m | 120pcs |
| LED | SMD 2835 |
| IP Grade | IP67 |
| Materials | Silicone |
| Power (W/m) | 1446W/m |
| Voltage | 12V DC |
| Beam angle | 140° |
| Working Temperature(℃) | -20~+60℃ |
| Installation | Plastic bracket |
| Running Length | Single feed: 5m/ 16.4ft Double feed:10m/32.8ft |
| Cutting length | 25mm [0.98in] |
① Tolerance range for optical and electrical data: ±15 %.
② All value @ ta=25℃.
③ Voltage tolerance range of the power supply: ±5 %.

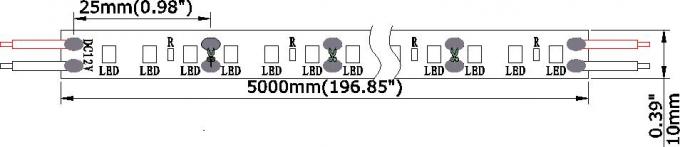

Product 2D drawing
- 12VDC/24VDC product interior drawing
3 LEDs cut-able
6 LEDs cut-able
- Product installation schematic diagram

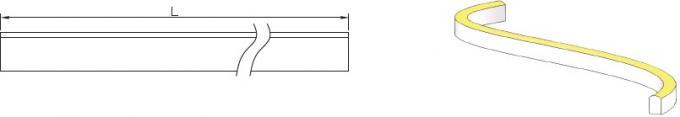

Product sectional drawing
Product application
Product ⇒ Fix letter groove ⇒ Clip product ⇒ Actual result
Connect two products
Product ⇒ Cut the product based ⇒ Solder the wire ⇒ Actual result
on application requirement “+/+”, “-/-“
Benging direction
The maximum bending angle 360°
The minimum bending radius: 15mm (0.59")

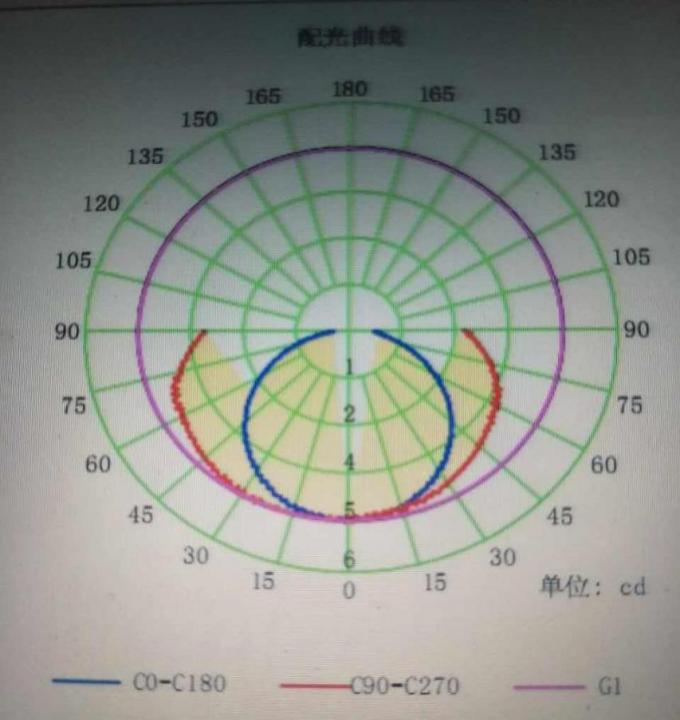

Light distribution
Packaging information
|
Product name |
Product dimension (L*W*H) |
Carton dimension (mm/inch) |
Total length/carton |
Gross weight (kg) |
|
RCC0GX06A/B(2835) |
5m*8mm*12mm (16.4ft*0.32"*0.47") | 520*370*260 (20.5"*14.5"*10.2") |
200m (656ft) |
20 |
