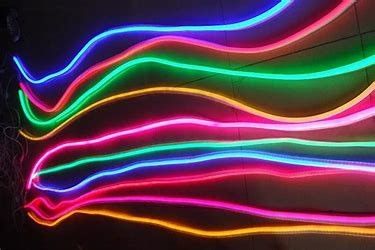

Cutting Length LED Neon Rope Light
Our Product Introduction
for more products please visit us on solarpanelstreetlight.com
Basic Information
Place of Origin:
Shenzhen,China
Brand Name:
TL
Certification:
CE,ROSH,UL
Model Number:
TL-SW08A/B
Minimum Order Quantity:
1pcs
Price:
Negotiable
Packaging Details:
Carton
Delivery Time:
7-15 workdays
Payment Terms:
T/T
Supply Ability:
5000m/day
Product Specification
Material:
Silicon
Standard Length:
5 Meters(16.4ft)/10m(32.8ft)
Beam Angle:
150°
Input Voltage:
12V/24V
Power:
14w/m
Color:
White/red/green/blue/yellow /pink/purple
Waterproof:
IP68
Performance:
Stable Reliability,UV And Yellowish Resistant
Lifetime:
50000H
Certification:
UL CE ROSH
Highlight:
led rope light
,led flex tube lights
Our Product Introduction
for more products please visit us on solarpanelstreetlight.com
Product Description
Mini Size 2.5cm Cutting Length Led Neon Flexible Light 12v 24v For Neon Sign
Application
-
Can be Widely used in building outline decoration lighting, KTV decoration lighting, Car decoration lighting, urban lighting and others decoration lighting.
Product features
- Uniform&even light source with no LED “hotspots” and three-dimensional emitting.
- More durable and flexible with 120mm minimum bending diameter.
- Easy for transportation and installation.
- Product can be fixed in the rugged place (smooth surface and bendable).
- Beam angle: 150°.
- Input voltage: 12VDC/24VDC.
- Excellent lumen maintenance (3oz FPC).
- 12VDC product: maximum length 10 meters (32.8ft).
- 24VDC product: maximum length 15 meters (49.2ft).
- Flexible cutting (the cut mouth sealed by silicone glue).
- IP68.
- table reliability and anti-UV.
Application data
| Maximum length① |
10/15 meters (32.8/49.2ft) |
| Ambient temperature range | -25 ~ +50 °C |
| The temperature of module top | 65 °C |
| Storage temperature range | -40 ~ +70 °C |
| Certification | CE/UL/ RoHS |
Installation
U-type PC accessory to fix
Technical data
| Product Name | Nominal voltage③ | Color temperature or Wavelength①② | CRI①② |
Typ. Flux/meter(3.28ft) ①② |
Typ. Power/meter(3.28ft)①② |
| TL-SW08A/B(2835) | 12/24 VDC | 2700-5500 K | >75 | 850~1100 lm | 12 W |
| TL-SR08A/B(2835) | 12/24 VDC | 620-625 nm | Red | 300~350 lm | 12 W |
| TL-SG08A/B(2835) | 12/24 VDC | 520-528 nm | Green | 210~230 lm | 12 W |
| TL-SB08A/B(2835) | 12/24 VDC | 465-470 nm | Blue | 1100~1010 lm | 12 W |
| TL-SY08A/B(2835) | 12/24 VDC | 590-596 nm | Yellow | 300~310 lm |
12 W |
① Tolerance range for optical and electrical data: ±15 %.
② All value @ ta=25℃.
③ Voltage tolerance range of the power supply: ±5 %.
Product 2D drawing
- 12VDC/24VDC product interior drawing
3 LEDs cut-able
6 LEDs cut-able
- Product installation schematic diagram
Product sectional drawing
Product application
Product ⇒ Fix letter groove ⇒ Clip product ⇒ Actual result
Connect two products
Product ⇒ Cut the product based ⇒ Solder the wire ⇒ Actual result
on application requirement “+/+”, “-/-“
Benging direction
The maximum bending angle 360°
The minimum bending radius: 15mm (0.59")
Light distribution
Packaging information
|
Product name |
Product dimension (L*W*H) |
Carton dimension (mm/inch) |
Total length/carton |
Gross weight (kg) |
|
RCC0GX06A/B(2835) |
5m*8mm*12mm (16.4ft*0.32"*0.47") | 520*370*260 (20.5"*14.5"*10.2") |
200m (656ft) |
20 |
