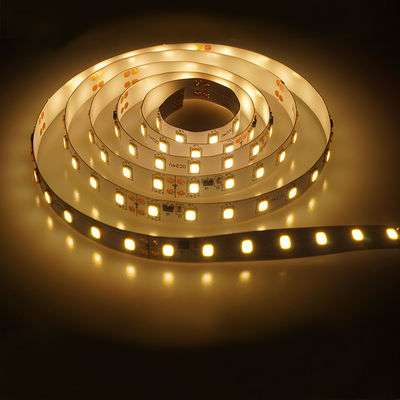

120 Degree Beam Angle Wireless LED Strip Lights
Our Product Introduction
for more products please visit us on solarpanelstreetlight.com
Basic Information
Place of Origin:
Shenzhen China
Brand Name:
TL
Certification:
CE RoSH UL
Model Number:
TL-FW28CE-IN98-CV80-10-24V-CCT
Minimum Order Quantity:
1000M
Price:
Negotiable
Packaging Details:
Cartons
Delivery Time:
2 weeks
Payment Terms:
T/T
Supply Ability:
30000M per month
Product Specification
LED SMD:
2835
Color:
2200-5500K
Luminous Efficiency:
125~135lm/w
Voltage:
24VDC
Wattage:
19.62W/M
CRI:
80
Type:
Flex LED Strips
Lamp Body Material:
Copper
Highlight:
external led strip lights
,led commercial strip lighting
Our Product Introduction
for more products please visit us on solarpanelstreetlight.com
Product Description
SMD2835 LED Strip Indoor LED Strip Lights 7LEDs Cutting 24VDC CRI80 120lm per watt
SMD2835
1, High luminous Efficiency 125~135lm/w
2, 98LEDs per meter, 7LEDs per cutting
3, 24DCV
4, Warranty 3 years
5, Beam angle 120°
6, 2 layer PCB/1+2OZ copper 10mm width
7, CRI≥80, lifetime 30000h
8, CCT/X.Y: 2300k 2700k 3000k 4000k 5000k 6000k
1, Features
High quality flexible PCB strip with ETL, RoHS and CE certified
Use 2835 SMD LED as light source with high brightness and large vier angle
Environment friendly, no UV, noinfrared, no radiation
Use high qualily LED
7pce LED/cutting section
| Item | Unit | Data | Item | Unit | Data | |
| LED type | / | SMD 2835 | LED quantity/m | PCS | 98 | |
| LED brand | / | Epistar or equivalent Sanan | LED power dissipation/m | W | 19.62 | |
| Beam angle | 2θ1/2 | 120 | Strip power dissipation/m | W | 21.8 | |
| PCB type | type | 2 layer PCB/1+2oz copper 10mm | Luminous flux±10% | lm/m | 3000 | |
| Length | M | 5 | Efficacy | lm/w | 140 | |
| Protection degree | IP | IP20 | Operating Voltage | VDC | 24 | |
| Tape | / | 9495 200MP | Operating current/m | A | 0.91 | |
| Color | / | WW/NW/CW | Ta(ambient temperature) | ℃ | -20℃~60℃ | |
| CRI | Ra | ≥80 | Tc(surface temperature) | ℃ | Max. 67 | |
| CCT | 2700k | 27S(2645-2805K) X=0.459 Y=0.412 | 120lm/w | Heatsink | [c㎡/m] | 654 |
| 3000k | 29S(2854-3026K) X=0.44 Y=0.403 | 120lm/w | Warranty period | year | 3 | |
| 4000k | 41S(3897-4223K) X=0.38 Y=0.38 | 135lm/w | Life time | H | 30000 | |
| 5000k | 50S(4900-5300K) X=0.346 Y=0.359 | 135lm/w | ||||
2, Layout
3, Outline drawing
4, Connection Diagram
