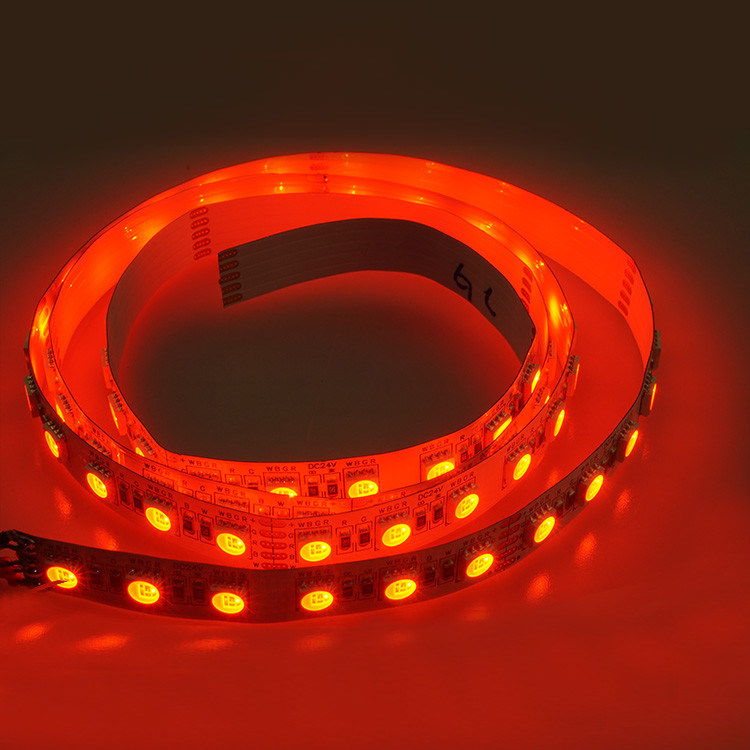

Beam Angle 120° Dimmable Led Strip 84 LEDs

Sudut Pancaran 120° Strip LED yang Dapat Diredupkan 84 LED

Menyoroti

lampu pita led eksterior
,
lampu strip led eksternal
LED SMD

5050
Warna

Merah
Efisiensi bercahaya

20LM/W
Voltase

24VDC
Watt

10W per meter
Cri

80
Suhu Kerja (℃)

-20 ~ 60 ℃
Warna PCB

12MM Warna putih
Tempat asal

SHENZHEN CINA
Nama merek

TL
Sertifikasi

ETL CE RoHS UL
Nomor model

TL-FW50-IN84RGBW-CV80-12-24V_Merah
Dokumen

Brosur Produk PDF
Kuantitas min Order

1000m
Harga

Bisa dinegosiasikan
Kemasan rincian

Kotak karton
Waktu pengiriman

2-3 minggu
Syarat-syarat pembayaran

T/T
Menyediakan kemampuan

30000M per bulan

Sudut Pancaran 120° Strip LED yang Dapat Diredupkan 84 LED

Name: Sudut Pancaran 120° Strip LED yang Dapat Diredupkan 84 LED
Brand: Beijing Silk Road Enterprise Management Services Co.,LTD
SKU: TL-FW50-IN84RGBW-CV80-12-24V_Merah
Availability: InStock

button button

Dapatkan Harga Hubungi sekarang

84LED Per Meter IP20 RGBW Strip LED Khusus Indoor 500 sampai 600lm Per warna Merah

SMD5050 RGBW

1, Efisiensi cahaya tinggi 20lm/w

2, 84 LED per meter, 6 LED per pemotongan

3, 24DCV

4, Garansi 3 tahun

5, sudut balok 120°

6, 2 lapisan PCB/1+2OZ tembaga lebar 12mm

7, CRI≥80, waktu hidup 50000 jam

8,R: 620-630nm, G: 515-525nm, B: 460-470nm

1, Fitur

Pita PCB fleksibel berkualitas tinggi dengan sertifikasi ETL UL RoHS dan CE

Menggunakan 2835 SMD LED sebagai sumber cahaya dengan kecerahan tinggi dan sudut vier besar

Ramah lingkungan, tidak ada UV, tidak ada inframerah, tidak ada radiasi

Gunakan LED berkualitas tinggi

6pce LED/bagian pemotong

Artikel	Satuan	Data		Artikel	Satuan	Data
Jenis LED	/	SMD 5050		Jumlah LED/m	PCS	84
Merek LED	/	Epistar atau setara Sanan		Pergeseran daya LED/m	W	8.1
Sudut balok	2θ1/2	120		Pergeseran daya strip/m	W	10.53
Jenis PCB	jenis	2 lapis PCB/1+oz tembaga 12mm		Aliran cahaya ± 10%	Lm/m	435-525
Panjang	M	5		Efektivitas	Lm/w	20
Tingkat perlindungan	IP	IP20		Tegangan Operasi	VDC	24
Pita	/	3M 9495 200MP		Arus kerja/m	A	0.7
Warna	/	WW/NW/CW		Ta (suhu lingkungan)	°C	-20°C~60°C
CRI	Ra	≥ 80		Tc (suhu permukaan)	°C	Max. 67
CCT	Merah	620-630nm	-	Heat sink	cm2/m	807
	Hijau	515-525nm	-	Periode garansi	tahun	3
	Biru	460-470nm	-	Waktu hidup	H	50000
	-	-	-	Waktu hidup	H	50000

2, Layout

Sudut Pancaran 120° Strip LED yang Dapat Diredupkan 84 LED 0

3, Gambar garis besar

Sudut Pancaran 120° Strip LED yang Dapat Diredupkan 84 LED 1

4, Diagram Koneksi

Sudut Pancaran 120° Strip LED yang Dapat Diredupkan 84 LED 2

5, Paket

Sudut Pancaran 120° Strip LED yang Dapat Diredupkan 84 LED 3
