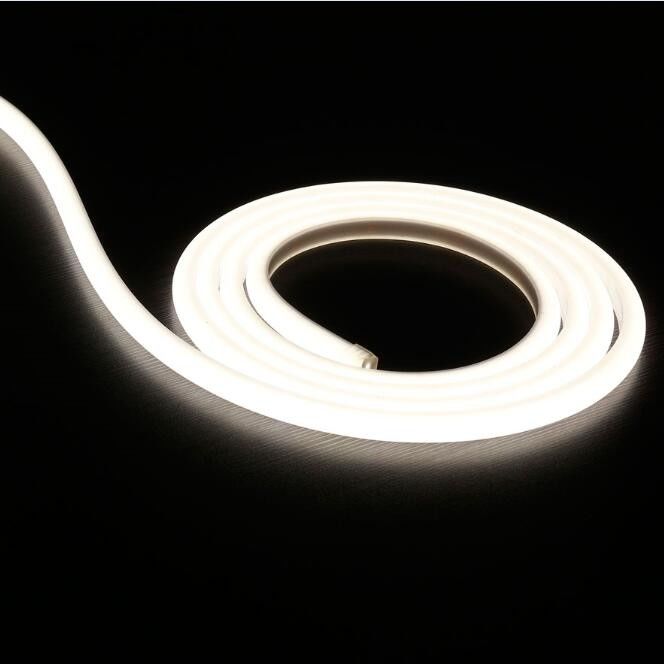

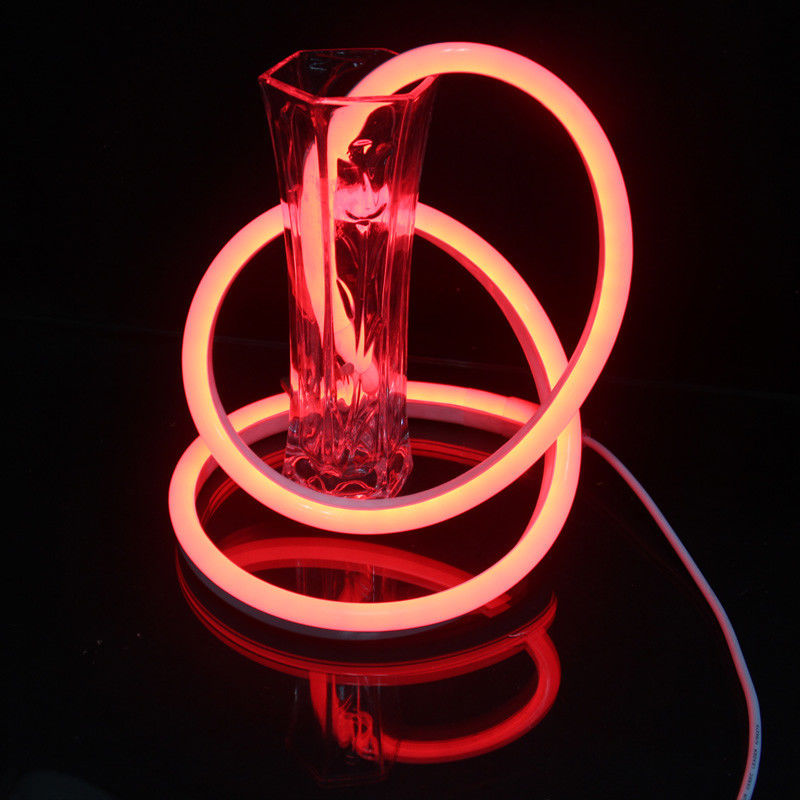

Silicone SMD 2835 chips Flexible Mini Size Led Neon Strip for Outdoor Sign
Advantage
- Low voltage 12vdc 24vdc available
- Thin neon light with same color case as the light 5/8.5MM*13*50000mm

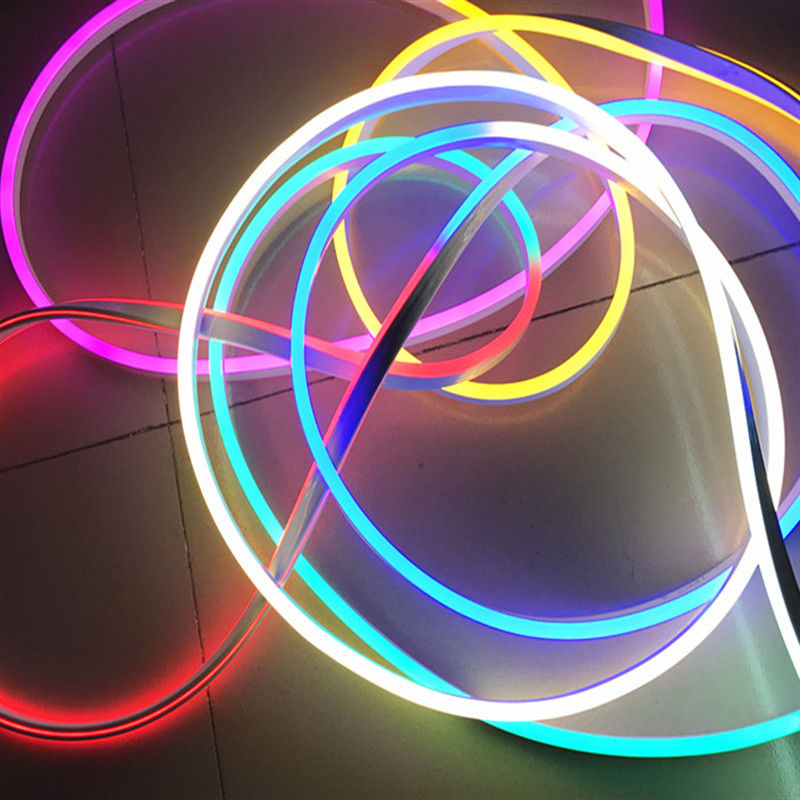

- Various Available color: Warm white Pure white Cool white Red Blue Green Pink Yellow RGBand Full color
- Eatable Silicon: more safe, Resistant to elevated temperatures/Oxidation/Weak Acid and Weak Base
- Arc design makes the wide lighting beam angle, make the lights more uniformity
- Cuttable available, for 12v flex neon, can be cut at each group 3leds, any model is available.
- End Cap is transparent which is good for connection place, no light pot. Also which is waterproof design.
- All our new design neon light is 3 years warranty
Product features
- Uniform&even light source with no LED “hotspots” and three-dimensional emitting.
- More durable and flexible with 120mm minimum bending diameter.
- Easy for transportation and installation.
- Product can be fixed in the rugged place (smooth surface and bendable).
- Beam angle: 150°.
- Input voltage: 12VDC/24VDC.
- Excellent lumen maintenance (3oz FPC).
- 12VDC product: maximum length 10 meters (32.8ft).
- 24VDC product: maximum length 15 meters (49.2ft).
- Flexible cutting (the cut mouth sealed by silicone glue).
- IP68.
- table reliability and anti-UV.
Application data
| Maximum length① |
10/15 meters
(32.8/49.2ft)
|
| Ambient temperature range |
-25 ~ +50 °C |
| The temperature of module top |
65 °C |
| Storage temperature range |
-40 ~ +70 °C |
| Certification |
CE/UL/ RoHS |
Installation
U-type PC accessory to fix
Technical data
| Product Name |
Nominal voltage③ |
Color temperature or Wavelength①② |
CRI①② |
Typ.
Flux/meter(3.28ft)
①②
|
Typ.
Power/meter(3.28ft)①②
|
| TL-SW08A/B(2835) |
12/24 VDC |
2700-5500 K |
>75 |
850~1100 lm |
12 W |
| TL-SR08A/B(2835) |
12/24 VDC |
620-625 nm |
Red |
300~350 lm |
12 W |
| TL-SG08A/B(2835) |
12/24 VDC |
520-528 nm |
Green |
210~230 lm |
12 W |
| TL-SB08A/B(2835) |
12/24 VDC |
465-470 nm |
Blue |
1100~1010 lm |
12 W |
| TL-SY08A/B(2835) |
12/24 VDC |
590-596 nm |
Yellow |
300~310 lm |
12 W
|
① Tolerance range for optical and electrical data: ±15 %.
② All value @ ta=25℃.
③ Voltage tolerance range of the power supply: ±5 %.
Product 2D drawing
- 12VDC/24VDC product interior drawing
3 LEDs cut-able
6 LEDs cut-able
- Product installation schematic diagram
Product sectional drawing
Product application
Product ⇒ Fix letter groove ⇒ Clip product ⇒ Actual result
Connect two products
Product ⇒ Cut the product based ⇒ Solder the wire ⇒ Actual result
on application requirement “+/+”, “-/-“
Benging direction
The maximum bending angle 360°The minimum bending radius: 15mm (0.59")
Light distribution
Packaging information
|
Product name
|
Product dimension
(L*W*H)
|
Carton dimension
(mm/inch)
|
Total length/carton
|
Gross
weight (kg)
|
|
RCC0GX06A/B(2835)
|
5m*8mm*12mm (16.4ft*0.32"*0.47") |
520*370*260 (20.5"*14.5"*10.2") |
200m (656ft)
|
20
|
